Oil Type Transformer

50MVA SZ20 Three Phase Oil Type Power Main Transformer High Voltage 35KV Furnace

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

50MVA SZ20 Three Phase Oil Type Power Main Transformer High Voltage 35KV Furnace

Brand Name:	WINLEY
Model Number:	SZ20-50000/35
MOQ:	1unit
Price:	$2000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Product Name:

Main Transformer

Rated Capacity:

50MVA (50000KVA)

Primary Voltage:

Secondary Voltage:

10000V

Cooling Method:

ONAN/ONAF

Frequency:

50/60Hz

Connection Group:

YNd11

Application:

Oil & Gas Chemicals, New Energy, Utilities, Data Centers

Supply Ability:

1000set/month

Product Description

50MVA SZ20 Three Phase Oil Type Power Main Transformer High Voltage 35KV Furnace

WINLEY ELECTRIC’s main transformers adhere to IEC, IEEE, and international standards, leveraging cutting-edge technologies to optimize core, coil, body, lead wire, and oil tank components. offer low partial discharge, minimal loss, reduced noise, lightweight design, and extended lifespan. Additionally, we are ISO9001 and ISO14001 certified, with CE, UL/cUL approvals, and TEST and SGS reports.

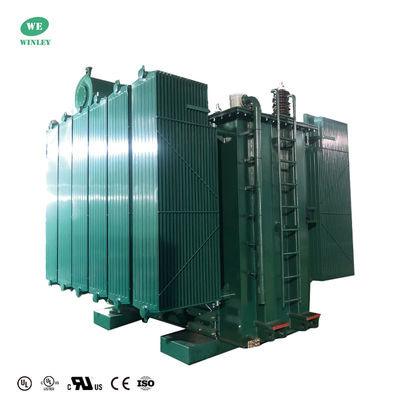

50MVA SZ20 Three Phase Oil Type Power Main Transformer High Voltage 35KV Furnace 0

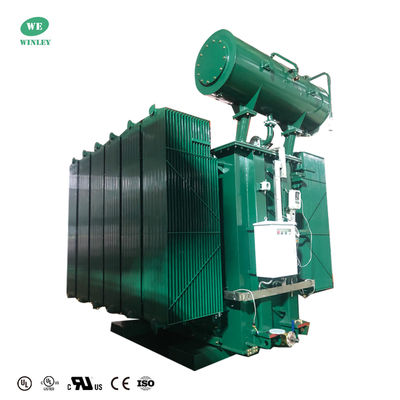

50MVA SZ20 Three Phase Oil Type Power Main Transformer High Voltage 35KV Furnace 1

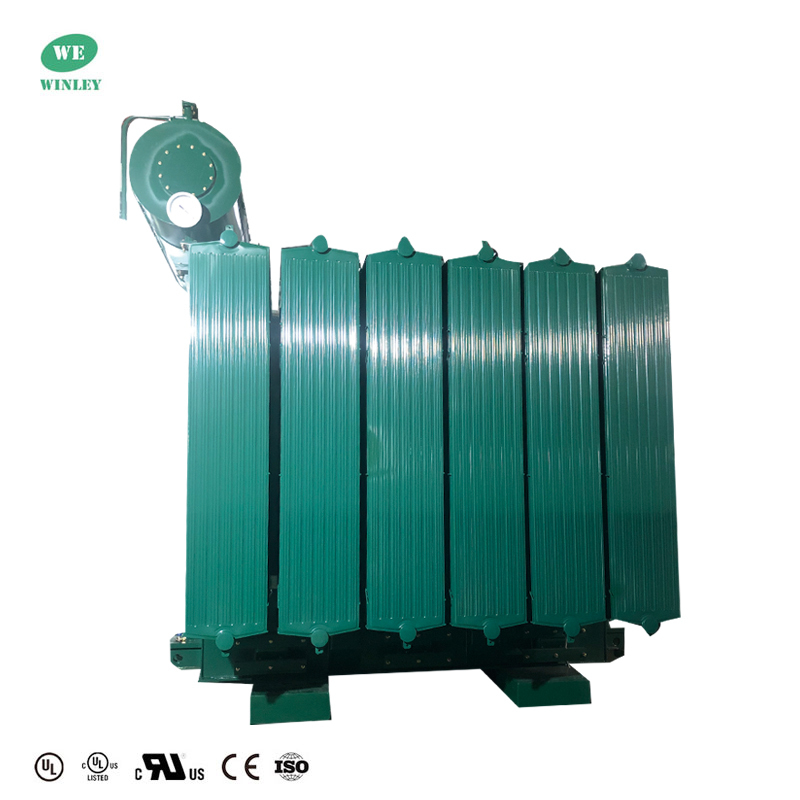

50MVA SZ20 Three Phase Oil Type Power Main Transformer High Voltage 35KV Furnace 2

Main data

Rated capacity	50000 KVA
Primary voltage	35KV
Secondary voltage	10,000 V
Rated current	824.8/2886.7A
Short-circuit impedance	10.59%
No-load loss	20,750 W
Mass	32840kg
Oil mass	9020kg
Total mass	3400kg

Technical drawings

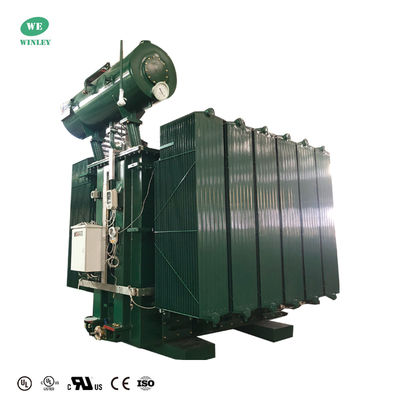

50MVA SZ20 Three Phase Oil Type Power Main Transformer High Voltage 35KV Furnace 3

Standard Features

Liquid Level Gauge
Top Oil Temperature Gauge
Fill Plug
Drain Valve with Sampler
Schrader Valve for Nitrogen Blanket
Automatic Pressure Relief Valve
Externally Operated De-Energized Tap Changer
Tank Grounding Pads
Jacking provision
Base designed for rolling
Undercoating of tank bottom to prevent corrosion
Diagrammatic corrosion resistant nameplate

Specification

Rated Capacity (kVA)	High Voltage (KV)	Low Voltage (V)	Short Circuit Impendence (%)	No-load loss (W)	On-load loss (W)	Dimension (mm)	Weight (Lbs)
800	4.16KV 12.47KV 13.2KV 13.8KV 24.94KV 34.5KV or others	208/120V 480/277V 600V 12470V 13200V 13800V or others	2.7 3.1 4.35 5.75 6.0	980	9350	106015001780	4519
1000				1160	11500	108515701800	5401
1250				1380	13900	116016101890	6393
1600				1660	16600	119016301950	7496
2000				2030	18300	126017002090	9039
2500				2450	19600	115021502250	10472
3000				3240	26500	190026002150	14330
5000				4500	27000	250022103180	20944
7500				7200	32000	366031005100	29982
10000				8500	35500	383026402216	34832
