112.5KVA Three Phase Dry Type Vacuum Pressure Impregnated VPI Isolation transformer 480V NEMA 3R

Brand Name:	WINLEY
Model Number:	SG-112.5KVA
MOQ:	1unit
Price:	$500~$60000/Unit
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,ISO,CE

Name:

VPI Isolation Transformer

Rated Power:

112.5KVA

Insulation Class:

Primary Voltage:

480Y/277V

Secondary Voltage:

480Y/277V

Temperature Rise:

<115℃

Enclosure Material:

NEMA 3R

UL Certification Number:

UL-US-2329418-0

Supply Ability:

1000units/month

Product Description

112.5KVA Three Phase Dry Type Vacuum Pressure Impregnated VPI Isolation transformer 480V NEMA 3R

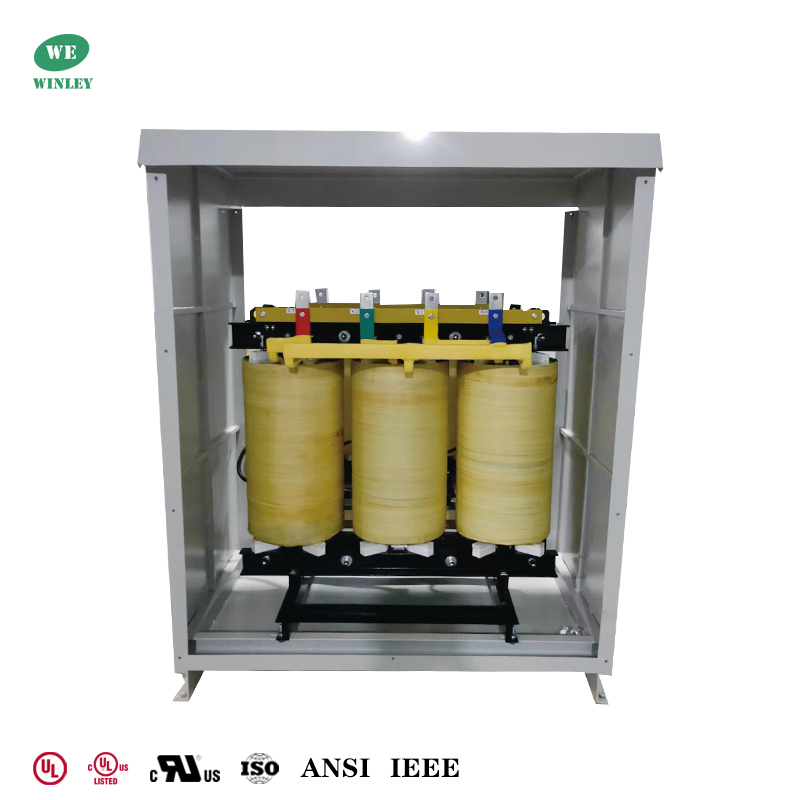

WINLEY's open wound dry-type Vacuum Pressure Impregnated (VPI) transformer is widely relied upon for its long, reliable service life in harsh industrial applications.

112.5KVA Three Phase Dry Type Vacuum Pressure Impregnated VPI Isolation transformer 480V NEMA 3R 0

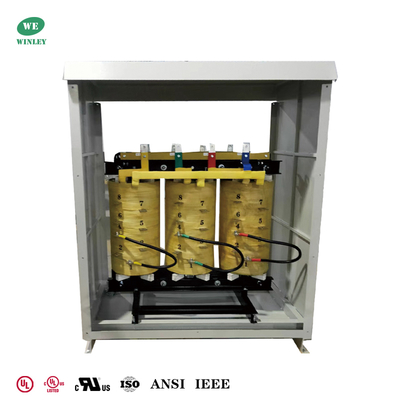

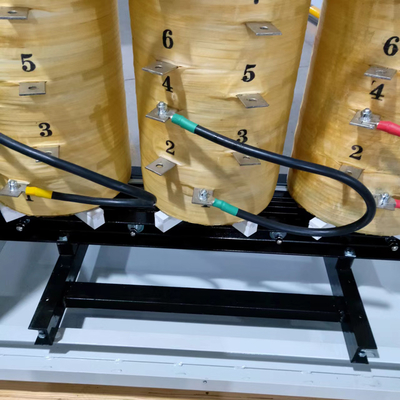

Its windings are coated in polyester varnish and impregnated using a vacuum-pressure process and then baked to cure.This heavy-duty transformer is environmentally safe, lowering insurance costs and usability concerns. It is available with numerous options for steel grade and specialty enclosures as needed.

112.5KVA Three Phase Dry Type Vacuum Pressure Impregnated VPI Isolation transformer 480V NEMA 3R 2

Specification

Maximum Power Rating:Up to 12,000kVA
Primary Voltage:Up to 25kVAC
Temperature Rise:150° standard
Basic Impulse Levels:10 to 95kV
Insulation:Class H – 220°C
Transformer Core:Non-aging, grain oriented, silicon steel

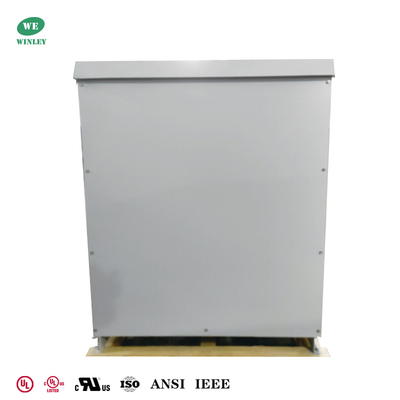

Enclosure:NEMA 1, NEMA 3R or NEMA 4
Additional NEMA rated and specialty enclosure options available
Cooling:Forced air, direct water or heat exchanger system

Drawing

112.5KVA Three Phase Dry Type Vacuum Pressure Impregnated VPI Isolation transformer 480V NEMA 3R 4

Application:

Widely used in local lighting, high-rise buildings, airports, docks, CNC machinery and equipment, mechanical and electronic equipment, medical equipment, rectification devices and other places.

Specification

Model (kva)	Primary Voltage	Secondary Voltage	Coupling group tab	Shape dimension			Mounting dimension		K*J	The box dimension
Model (kva)	Primary Voltage	Secondary Voltage	Coupling group tab	Bmax	Dmax±5	Emax	A	C±5	K*J	Bmax	Dmax±5	Emax
SG-10KVA	660 400 380 200	380 220 110 36	Yyn0 Y/d D/y D/d	360	180	305	215	140	10*20	450	360	480
SG-15KVA				360	200	335	215	155	10*20	450	360	480
SG-20KVA				420	210	350	250	170	10*20	490	400	540
SG-30KVA				420	230	380	250	190	10*20	490	400	540
SG-50KVA				680	350	550	420	220	10*20	800	510	840
SG-80KVA				750	400	620	480	250	10*20	850	510	840
SG-100KVA				780	420	650	500	250	10*20	900	550	890
SG-300KVA				180	95	185	100	75	6*14
SG-500KVA				180	95	185	100	75	6*14
SG-1000KVA				180	110	185	100	90	6*14
SG-2000KVA				230	125	205	130	100	9*16
SG-3000KVA				240	145	215	130	120	9*16
SG-4000KVA				240	155	235	130	130	9*16
SG-5000KVA				320	160	255	180	115	10*20	400	330	480
SG-6000KVA				300	165	280	180	140	10*20	400	330	480

Production process

112.5KVA Three Phase Dry Type Vacuum Pressure Impregnated VPI Isolation transformer 480V NEMA 3R 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
