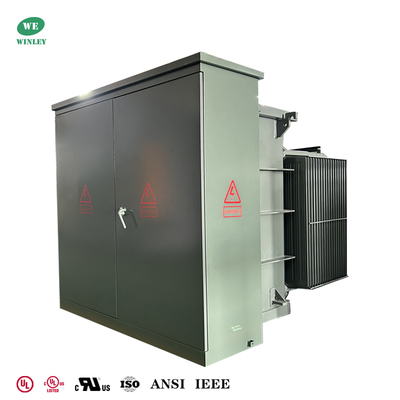

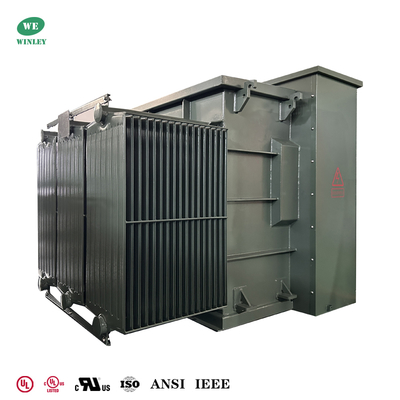

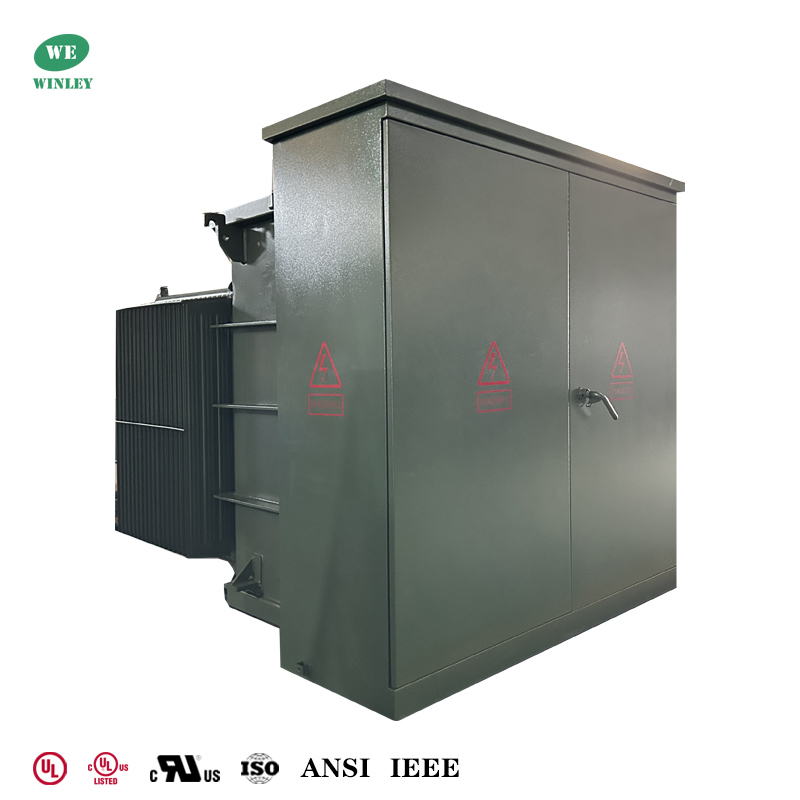

3 Phase Pad Mounted Distribution Transformer Oil Filled 1500KVA 13.2KV To 480V IEEE ANSI Standard UL/cUL listed

WINLEY offers a complete line of liquid-filled three-phase pad-mounted transformers that meet ANSI®/IEEE® standards and have obtained UL/cUL certification. With voltages up to 34.5 kV and ratings up to 5,000 kVA, these transformers suit high-voltage and large-capacity applications like substations and industrial power systems. Their oil-immersed design ensures superior performance and stability in high-load, high-voltage scenarios.

Main data

Product Advantages

The transformer features a robust tap-changer capability that delivers precise primary voltage regulation without loading the unit: an off-circuit tapping range of 14,400; 13,800; 13,200; 12,870; 12,470; 12,000; and 11,500 V, enabling discrete adjustments around the nominal 13.2 kV to stabilize downstream delivery.

Technical drawings

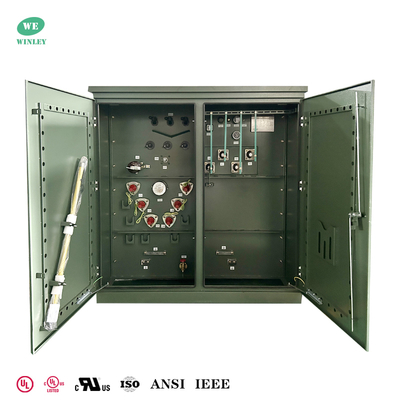

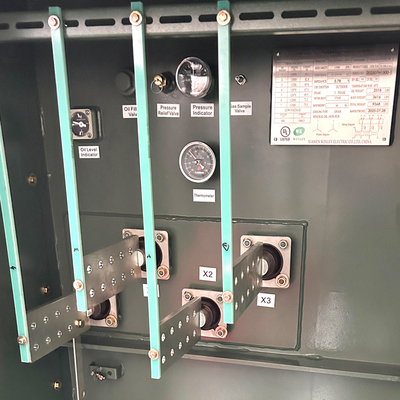

Product Photos

Application

• Digital Currency Mining – Provides stable power for remote mining farms, ensuring efficient operations.
• Data Centers – Converts high-voltage power for stable electricity and backup during outages.
• Renewable Energy – Transmits solar/wind power to the grid and supports battery storage.
• Commercial Buildings – Powers lighting, HVAC, and IT systems with backup for outages.
• Transport Hubs – Ensures electricity for airports, train stations, and ports (lighting, signals, cranes).
• Agriculture – Distributes power for farm equipment, irrigation, and storage, boosting productivity.
• Industry – Reliable power for machines, automation, and cost-efficient production.
• Schools & Hospitals – Supports critical infrastructure, research, and medical equipment.

Specification

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
