2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard

Brand Name:	WINLEY
Model Number:	S-2000/11
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Type:

Distribution Transformer

Capacity:

2000KVA

Frequency:

Primary Voltage:

Secondary Voltage:

415Y/240

Winding Material:

Copper

Standard:

AS60076

Certification:

ISO, IEC

Supply Ability:

1000set/month

Product Description

2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard

WINLEY’s 2000kVA Power Distribution Transformer are made of high-quality materials, and new technology and materials are used in coil, body, insulation, etc., with small no-load and load losses, uniform magnetic circuit, and more reliable performance and structure, and energy saving.

Product Photos

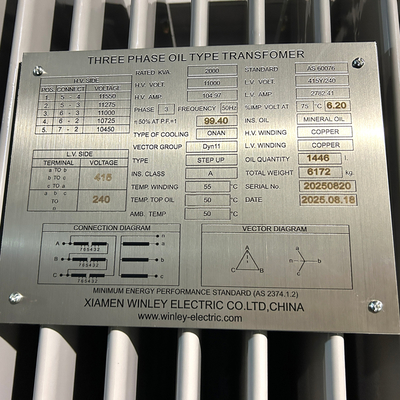

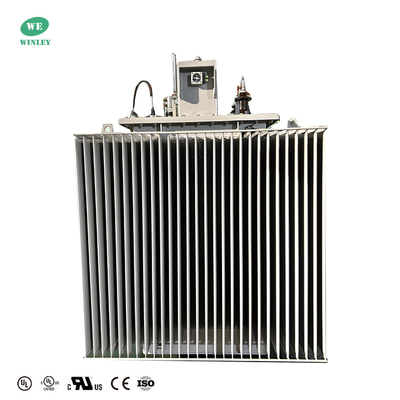

2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard 0

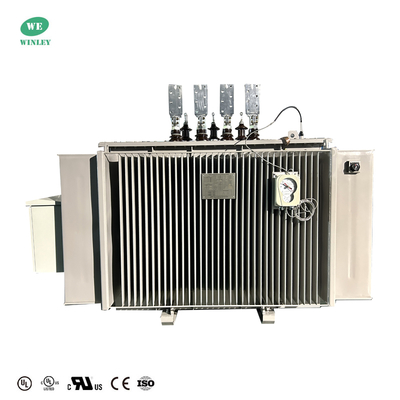

2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard 1

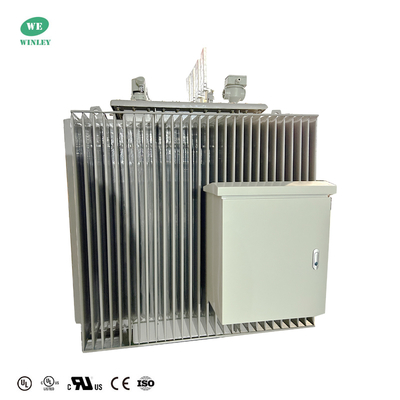

2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard 2

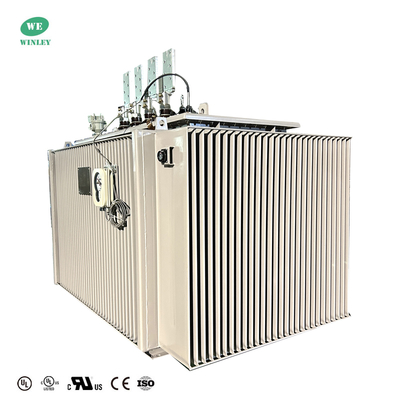

2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard 3

Main Data

No.	Item	Unit	Reqirement
1	Type	~	oil type
2	Rated capacity	kVA	2000
3	No. of Phase	~	3
4	Primary Voltage	kV	11
5	Secondary Voltage	V	415Y/240
6	Tapping type	~	off-circuit
7	Tapping range	%	±2*2.5%(5 steps)
8	Cooling method	~	ONAN
9	Rated frequency	Hz	50
10	Vector group	~	Dyn11
11	Insulation class	~	A
12	Temperature rise	K	55/50(winding/top oil)
13	Off-load loss	W	≤1800
14	On-load loss (75℃)	W	≤17100
15	Impedance	%	6.25
16	Winding material	~	Cu
17	Core material	~	silicon steel

Technical drawings

2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard 4

Specification

Model	Rated Capacity (kVA)	Connection Symbol	Hight Voltage (v)	Tap range	Low Voltage (v)	No-load Loss	On-load Loss	No-load current	Short-circuit impedance
Model	Rated Capacity (kVA)	Connection Symbol	Hight Voltage (v)	Tap range	Low Voltage (v)	(W)	(W)	(%)	(%)
S11-50/35	50	Yyn0 or Dyn11	35	±5% +2×2.5%	0.4	160	1200	1.3	6.5
S11-100/35	100					230	2010	1.1
S11-125/35	125					270	2370	1.1
S11-200/35	200					340	3320	1
S11-250/35	250					400	3960	0.95
S11-500/35	500					680	6910	0.85
S11-630/35	630					830	7860	0.65
S11-1000/35	1000					1150	11500	0.65
S11-1250/35	1250					1400	13900	0.6
S11-2000/35	2000					1990	19700	0.55
S11-2500/35	2500					2360	23200	0.55

why choose us

1. Qualifications
WINLEY can customize various international standards for your transformers, and the products have UL, ISO, CE, CQC, CCC, Test Report and other product certifications.

2. Online testing and shortest delivery time
A. Fast delivery: 15-35 days
B. Online video factory inspection and online product laboratory testing

3. After-sales service
A. 24-month warranty
B. Provide remote video guidance for installation
C. Provide design drawings
D. Professional installation team

2000Kva Three Phase Electrical Power Distribution Transformer Oil Immersed 11kV 415V AS60076 Standard 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
