100KVA Single Phase Submersible Distribution Transformer 4160V To 240V ANSI IEEE Standards

Brand Name:	WINLEY
Model Number:	DM-100/4.16
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Submersible Distribution Transformer

Primary Voltage:

4160GrdY/2400

Secondary Voltage:

240/120V

Frequency:

60 HZ

Temperature Rise:

Winding Material:

Copper

Tank Material:

304 Stainless Steel

Efficiency:

99.20%

Supply Ability:

1000set/month

Highlight:

100KVA Submersible Distribution Transformer

240V Submersible Distribution Transformer

4160V Submersible Distribution Transformer

Product Description

100KVA Single Phase Submersible Distribution Transformer 4160V To 240V ANSI IEEE Standards

A distribution transformer or combined transformer that can be installed in a pit. It is usually installed in a pit, does not occupy the effective space on the surface, and does not affect the visual effect.

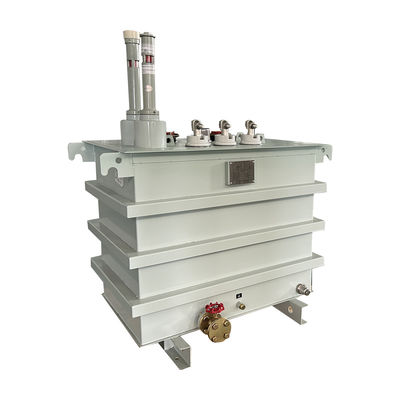

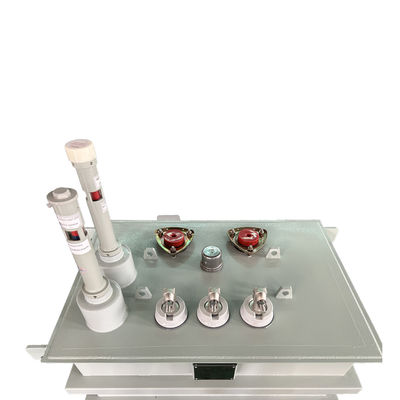

100KVA Single Phase Submersible Distribution Transformer 4160V To 240V ANSI IEEE Standards 0

Main data

Transformer Configuration	Underground Vault Installation
Phase	Single Phase
Capacity	100 KVA
Primary Voltage	4160GrdY/2400
Secondary Voltage	240/120V (L-N)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Tank Material	304 Stainless Steel
Total Weight (Liquid Filled)*	1,060 lb
Efficiency	99.20%
No Load Loss (in watts)	+/- 270W
Full Load Loss (in watts)	+/- 1,100W

Features

1. Suitable for urban environments (installed in basements or cellars), especially for densely populated central cities;
2. Suitable for lighting and power systems in streets, highways, bridges, tunnels, parking lots, airports, ports, tourist attractions, etc.:
3. High and low voltage inlet and outlet lines adopt waterproof, fully sealed, fully insulated, and fully shielded wiring methods;
4. The box shell is made of anti-corrosion steel plate or stainless steel, fully sealed, and can be immersed in water for a period of time;
5. The protection system fully considers the convenience and safety of operation;
6. Taking into account the particularity of heat dissipation conditions, the transformer adopts a low-loss and low-temperature design;

Product drawings

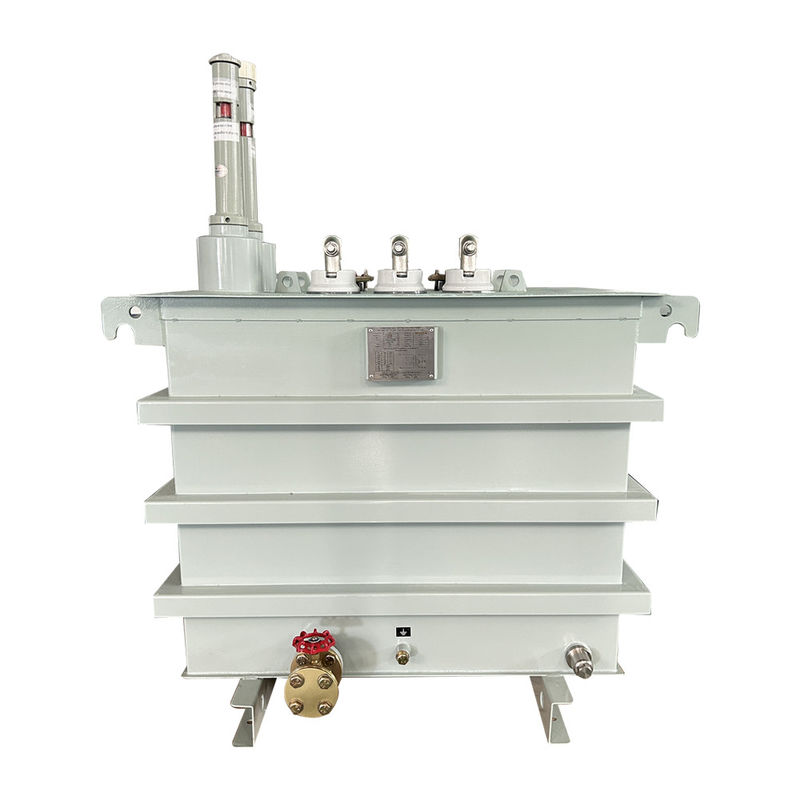

100KVA Single Phase Submersible Distribution Transformer 4160V To 240V ANSI IEEE Standards 1

Specification

Single phase Pole Mounted transformer
Rated Capacity	High Voltage	Low Voltage	Connection Symbol	Standard	Short-circuit impedance	Efficiency
(kVA)	(v)	(v)	Connection Symbol	Standard	(%)	(%)
10	34500/19920V 13800/7957V 13200/7620V 12470/7200V or others	120-240V 240-480V 347V 600V	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

100KVA Single Phase Submersible Distribution Transformer 4160V To 240V ANSI IEEE Standards 2

100KVA Single Phase Submersible Distribution Transformer 4160V To 240V ANSI IEEE Standards 3

100KVA Single Phase Submersible Distribution Transformer 4160V To 240V ANSI IEEE Standards 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
