167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type

Brand Name:	WINLEY
Model Number:	D-167/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mounted Transformer

Phase:

Single Phase

Capacity:

167 KVA

Primary Voltage:

34500Y/19920

Secondary Voltage:

120/240V

Insulation Rating:

Temperature Rise:

Winding Material:

Copper/Aluminium

Supply Ability:

1000set/month

Product Description

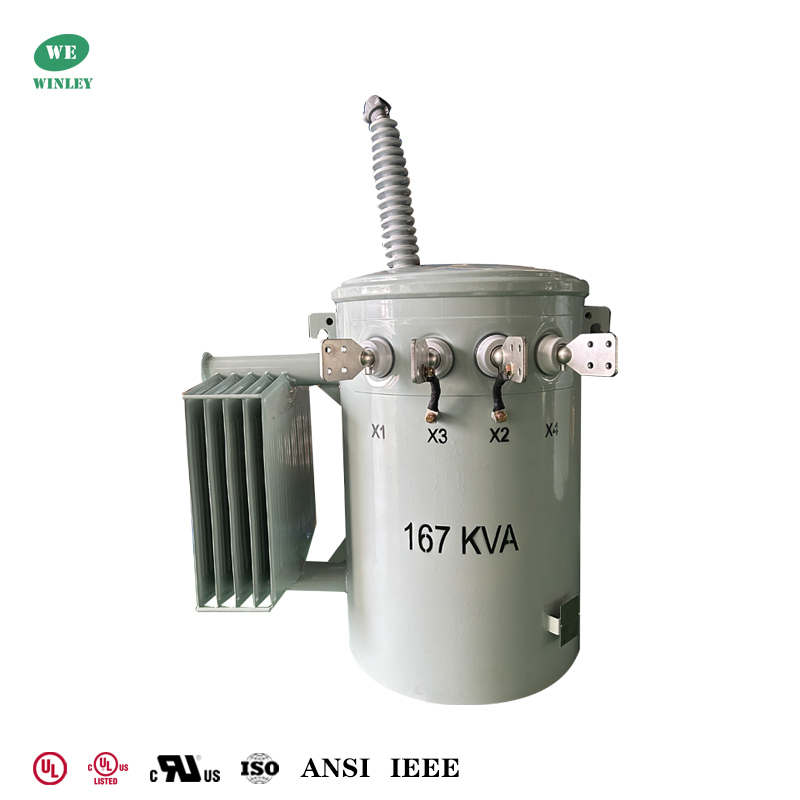

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type

WINLEY’s 167 kVA Overhead Distribution Transformer — a reliable, high-performance pole-mounted solution engineered for demanding single‑phase distribution applications. Built as a conventional liquid‑filled transformer with copper windings and mineral oil insulation, this ONAN (Oil Natural Air Natural) unit delivers dependable service and long-term durability for residential, commercial, and light industrial feeders.

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type 0

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Transformer Configuration	Liquid Filled Pole Mounted
Phase	Single Phase
Capacity	167 KVA
Primary Voltage	34500Y/19920
Primary BIL	200 kV
Secondary Voltage	120/240V (L-N-L)
Secondary Phasor	Dual Windings, Single Phase
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Elevation Level	3,300 ft Above Sea Level
Core Material	Grain Oriented Steel
Dimensions*	38''-W x 41''-D x 68''-H
Tank Diameter*	28'' OD
Total Weight (Liquid Filled)*	1545 lbs
Efficiency	99.15%

Technical drawings

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type 1

Standard Features

Lifting lugs
Arrester mounting pads
High-voltage porcelain bushing(s) with eyebolt terminals
Low voltage bushing insulators are available in fiberglass reinforced polyester material or porcelain (both eyebolt and spade terminals)
Low-voltage neutral grounding strap (furnished on 10 – 50 kVA single HV bushing units)
ANSI support lugs (hanger brackets)
Cover has 15 kV dielectric insulation and increased resistance to corrosion. The cover is sloped 15°, preventing water from collecting and thereby reducing the chances of corrosion and leaking.
Self-venting and resealing cover that eliminates the need for an auxiliary pressure-relief device and offers increased safety through higher tank withstand
Wound core with step-lap joints for increased efficiency and lower noise levels.
Core/coil bolts in pads are 180° apart
Embossed low-voltage leads
Oil fill-plug
Cover ground-strap
Tank ground-pad
Primary protective link
Surge arrester
Secondary circuit breaker
Secondary breaker operating handle with emergency overload reset
Laser-etched, anodized, aluminum nameplate with bar-coded serial number

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type 2

Specifications

Single-phase pole mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Ratings

Meets/Exceeds DOE 2016 Efficiency Ratings
Complies with ANSI / IEEE #C57.12.00
Complies with ANSI / IEEE #C57.12.20
Complies with ANSI / IEEE #C57.12.28
Complies with ANSI / IEEE #C57.12.31
Complies with ANSI / IEEE C57.12.70
Complies with ANSI / IEEE C57.12.80
Complies with ASTM D3487

Production process

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type 3

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type 4

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

pole mounted distribution transformer

single phase pole mounted transformer

Oil Immersed Distribution Transformer

Products Details

Home > Products >

Pole Mounted Transformer

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type

All Category

Three Phase Isolation Transformer

Oil Type Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Pole Mounted Transformer

UPS Isolation Transformer

Medical Isolation Transformer

Industrial Control Transformer

Cast Coil Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

EI Power Transformer

Three Phase Auto Transformer

Three Phase Voltage Regulator

Three Phase Reactor

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type

Brand Name:	WINLEY
Model Number:	D-167/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand Name:

WINLEY

Certification:

CE,ISO

Model Number:

D-167/34.5

Transformer Type:

Pole Mounted Transformer

Phase:

Single Phase

Capacity:

167 KVA

Primary Voltage:

34500Y/19920

Secondary Voltage:

120/240V

Insulation Rating:

A/E

Temperature Rise:

65°C

Winding Material:

Copper/Aluminium

Minimum Order Quantity:

1unit

Price:

$1000-$10000

Packaging Details:

Plywood case

Delivery Time:

30days

Payment Terms:

T/T

Supply Ability:

1000set/month

Product Description

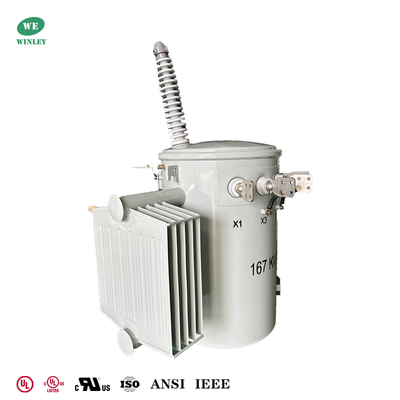

167Kva Single Phase Pole Mounted Distribution Transformer Oil Immersed Dual Windings 34.5KV To 120V BIL 200KV Conventional Type
