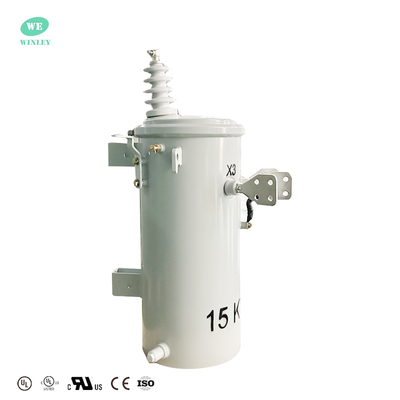

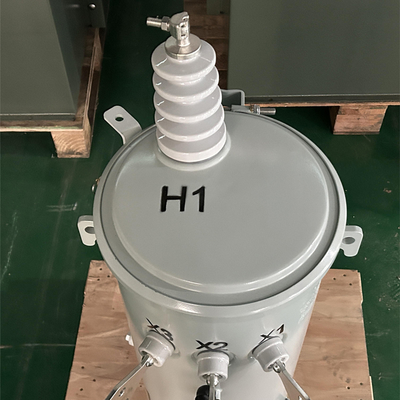

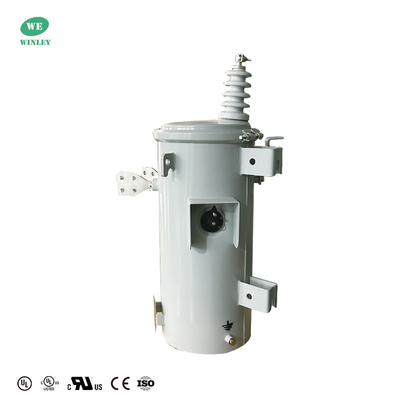

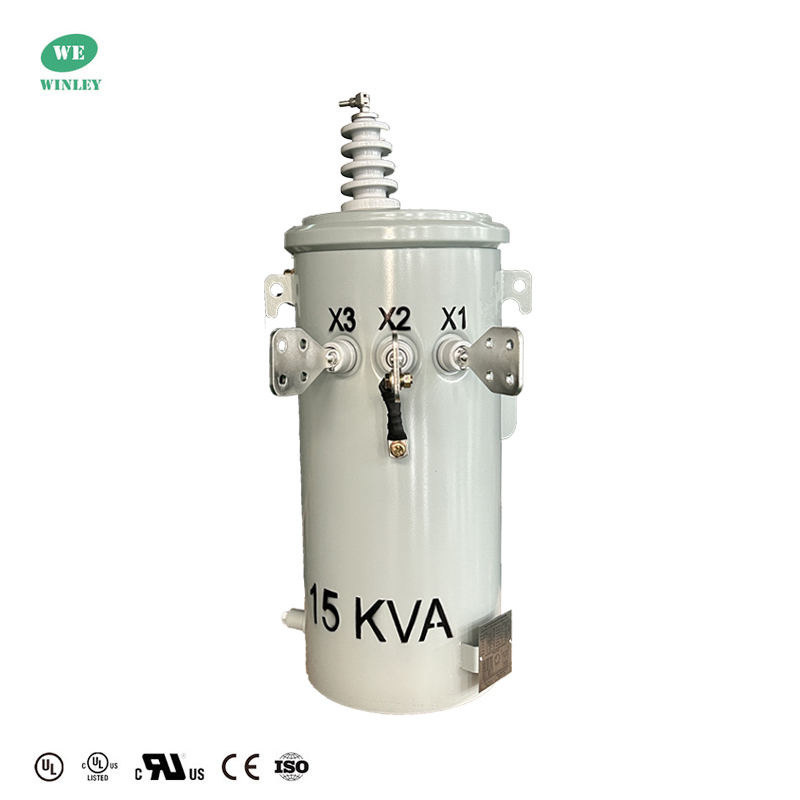

15KVA Pole Mounted Transformer Single Phase Oil Immersed 13.8KV To 120V Overhead Power Distribution Transformer

Brand Name:	WINLEY
Model Number:	D-15/13.8
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, CE, ISO

Type:

Pole Mount Distribution Transformer

Phase:

Single

Capacity:

15KVA

Primary Voltage:

7968/13800GrdY

Secondary Voltage:

120/240V

Frequency Rise:

50/60Hz

UL Certificate Number:

UL-US-2569058-0

Efficiency Standard(s):

Meets DOE 2016 Standards

Supply Ability:

1000set/month

Product Description

15KVA Pole Mounted Transformer Single Phase Oil Immersed 13.8KV To 120V Overhead Power Distribution Transformer

WINLEY's pole-mounted transformers, UL/cUL certified, offer 10-333 kVA capacity and exceed ANSI, IEEE, CSA, IEC60076 standards. With decades of expertise, we deliver full technical support and export globally to North/South America and Southeast Asia. Our safe, stable, and efficient designs cut operational costs for reliable power solutions.

15KVA Pole Mounted Transformer Single Phase Oil Immersed 13.8KV To 120V Overhead Power Distribution Transformer 0

Main Data

Secondary Voltage:	120/240V (L-N-L)
Frequency:	60 Hz
Temperature Rise:	65°C
Cooling Class:	ONAN
Efficiency:	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards,
Winding Material:	Copper
Ambient Temperature Rating:	40°C
Sound Level:	55 dBA
Efficiency:	99.15%
No Load Loss (in watts):	+/- 455W

Drawing

15KVA Pole Mounted Transformer Single Phase Oil Immersed 13.8KV To 120V Overhead Power Distribution Transformer 1

Feature

Cost-effective design
High efficiency and low noise levels
Dual voltage capability
Coating meets or exceeds IEEE C57 standard
Excellent sealing for protection against environmental factors
Polymer-type low voltage bushings
Porcelain-type high voltage bushings
Convenient cover or sidemounted voltage bushings
Spade or clamp type terminals
Compatible with both mineral oil and biodegradable vegetable oil as insulating oil
Provision for surge arrester bracket, with brackets available if needed

15KVA Pole Mounted Transformer Single Phase Oil Immersed 13.8KV To 120V Overhead Power Distribution Transformer 2

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

15KVA Pole Mounted Transformer Single Phase Oil Immersed 13.8KV To 120V Overhead Power Distribution Transformer 3

15KVA Pole Mounted Transformer Single Phase Oil Immersed 13.8KV To 120V Overhead Power Distribution Transformer 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
