Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V

Brand Name:	WINLEY
Model Number:	D-10/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, CE, ISO

Type:

Pole Mount Distribution Transformer

Phase:

Single

Capacity:

10KVA

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

120/240V

Frequency Rise:

Cooling Class:

UL Certificate Number:

UL-US-2569058-0

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

Oil Immersed Pole Mounted Transformer

10KVA Pole Mounted Transformer

Single Phase Pole Mounted Transformer

Product Description

Medium Voltage 10KVA Oil Immersed Single Phase Pole mounted Transformer Power Transformer 12470V to 120V ANSI / IEEE Standard C57.12

The 10 KVA Pole Mount Distribution Transformer delivers reliable single-phase power with a 7200/12470Y grounded wye primary and 120/240V secondary voltage. Designed for durability, it features mineral oil insulation (non-PCB) and ONAN cooling. Its robust construction includes porcelain high-voltage bushings, copper windings, and corrosion-resistant coated steel housing. With low no-load loss (36W) and high efficiency (98.46% at full load), this transformer meets ANSI/IEEE C57.12.20 standards.

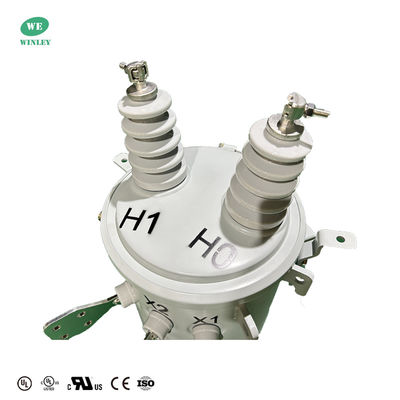

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V 0

Why choose us

1.The pole-mounted transformers produced by WINLEY have obtained UL/cUL certification, with rated capacities ranging from 10 kVA to 333 kVA. The products meet or even exceed ANSI, IEEE, CSA, IEC60076 and other standards.
2.Through optimized electrical design, our products are safe, stable, and efficient, helping you save operating costs
3.Our products have been exported to North America, Central and South America, Southeast Asia and other markets in large quantities. We have rich experience and can provide comprehensive technical support and services.

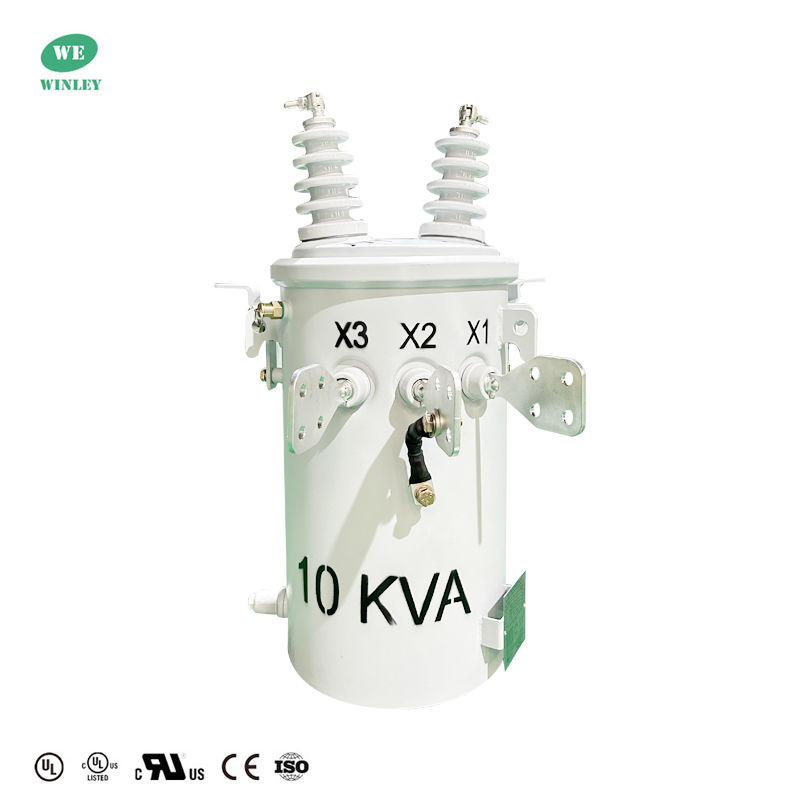

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V 1

Main Data

Phase	Single Phase
Capacity	10 KVA
Primary Voltage	7200/12470Y
Secondary Voltage	120/240V (L-L-N)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN
Winding Material	Copper
Core Material	Grain Oriented Steel
Ratings	Conforms to ANSI / IEEE Standard C57.12.20

Drawing

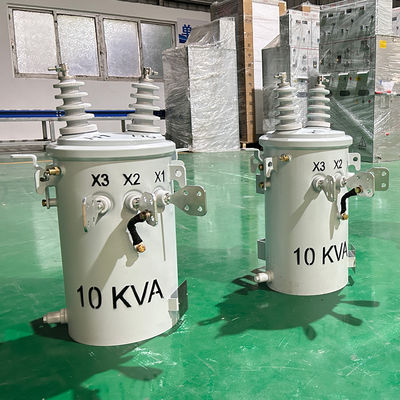

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V 2

Advantage

This fully insulated and sealed design ensures safety, reliability and ease of operation while requiring min, Benefits include high voltage, stable neutral point, low loss, small size, cost-effectiveness, safety, environmental friendliness.

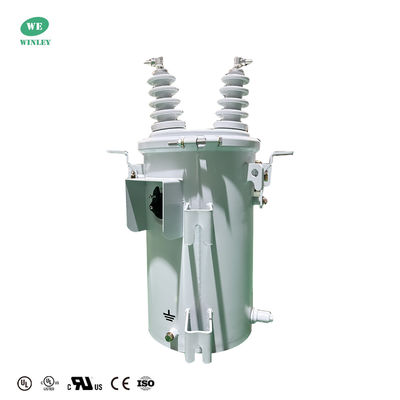

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V 3

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V 4

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

pole mounted distribution transformer

single phase pole mounted transformer

Oil Immersed Distribution Transformer

Products Details

Home > Products >

Pole Mounted Transformer

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V

All Category

Three Phase Isolation Transformer

Oil Type Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Pole Mounted Transformer

UPS Isolation Transformer

Medical Isolation Transformer

Industrial Control Transformer

Cast Coil Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

EI Power Transformer

Three Phase Auto Transformer

Three Phase Voltage Regulator

Three Phase Reactor

Medium Voltage 10KVA Oil Immersed Single Phase Pole Mounted Transformer Power Transformer 12470V To 120V

Brand Name:	WINLEY
Model Number:	D-10/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand Name:

WINLEY

Certification:

UL/cUL, CE, ISO

Model Number:

D-10/12.47

Type:

Pole Mount Distribution Transformer

Phase:

Single

Capacity:

10KVA

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

120/240V

Frequency Rise:

60Hz

Cooling Class:

ONAN

UL Certificate Number:

UL-US-2569058-0

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Minimum Order Quantity:

1unit

Price:

$1000-$10000

Packaging Details:

Plywood case

Delivery Time:

30days

Payment Terms:

T/T

Supply Ability:

1000set/month

Highlight:

Oil Immersed Pole Mounted Transformer

10KVA Pole Mounted Transformer

Single Phase Pole Mounted Transformer

Product Description

Medium Voltage 10KVA Oil Immersed Single Phase Pole mounted Transformer Power Transformer 12470V to 120V ANSI / IEEE Standard C57.12
