Containerized Smart Transformer Station String-type ntelligent Integrated Box-type Substations Step-up 3000kva 800V to 35KV

Brand Name:	WINLEY
Model Number:	S-3000/35
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Supply Ability:

500set/month

Product Description

Containerized Smart Transformer Station String-type ntelligent Integrated Box-type Substations Step-up 800V to 35KV

Summarization

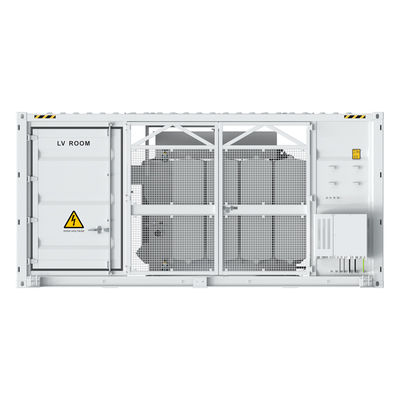

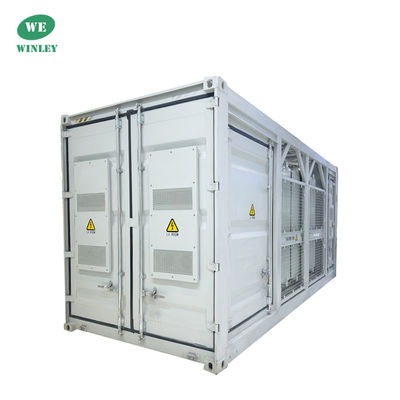

The Transforms LV AC power from solar inverters into medium-voltage (MV) AC for grid integration. Housed in a 20’ HC metal container, the compact design with rugged protection ensures seamless sea/land transportation.

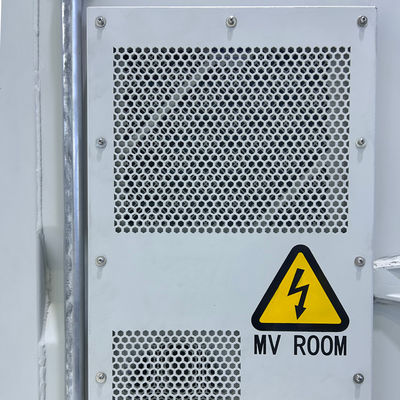

Containerized Smart Transformer Station String-type ntelligent Integrated Box-type Substations Step-up 3000kva 800V to 35KV 0

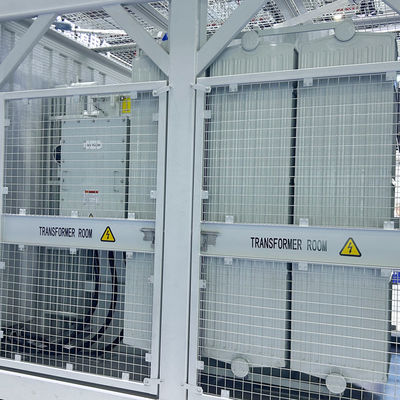

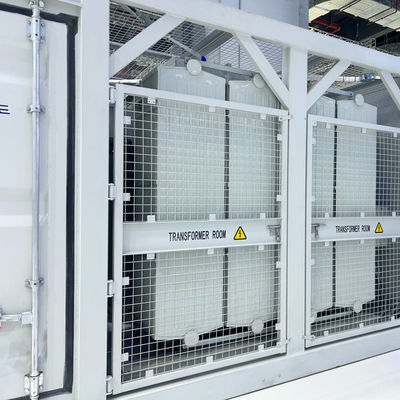

Containerized Smart Transformer Station String-type ntelligent Integrated Box-type Substations Step-up 3000kva 800V to 35KV 1

Main data

AC Power	3000 kVA
Rated Input Voltage	800 V
LV Main Switches	ACB /MCCB
Rated Output Voltage	11 kV, 15 kV, 20 kV, 22 kV, 30 kV, 33 kV, 35 kV 2
Frequency	50 Hz/60 Hz
Transformer Type	Oil-immersed
Transformer Cooling Type	ONAN
Transformer Tappings	± 2 x 2.5%
Transformer Oil Type	Mineral Oil (PCB Free)
Transformer Vector Group	Dy11-y11
Transformer Min. Peak Efficiency Index	Tier 1 or Tier 2 In Accordance with EN 50588-1
RMU Type	SF6 Gas Insulated
RMU Transformer Protection Unit	MV Vacuum Circuit Breaker Unit
RMU Cable Incoming / Outgoing Unit	Direct Cable Unit or Cable Load Break Switch Unit
Auxiliary Transformer	Dry Type Transformer, 5 kVA, Dyn11
Output Voltage of Auxiliary Transformer	400 / 230 Vac or 220 / 127 Vac
Transformer Monitoring & Protection	Oil Level, Oil Temperature, Oil Pressure and Buchholz
Protection Degree of MV & LV Room	IP 54
Internal Arcing Fault Classification of YBS	IAC A 20 kA 1s
MV Relay Protection	50/51, 50N/51N
LV Overvoltage Protection	Type I+II
Anti-rodent Protection	C5 Medium in accordance with ISO 12944
Dimensions (W x H x D)	6,058 x 2,896 x 2,438 mm (20’ HC Container)
Weight	< 22 t
Operating Temperature Range	-25℃ ~ 60℃ 4 (-13°F ~ 140°F)
Relative Humidity	0% ~ 95%
MV-LV AC Connections	Prewired and Pretested, No Internal Cabling Onsite
LV & MV Room Cooling	Smart Cooling without Air-across for Higher Availability
Communication	Modbus-RTU
Applicable Standards	IEC 62271-202, EN 50588-1, IEC 60076, IEC 62271-200, IEC 61439-1

Technical drawings

Key Advantages:

Simplicity: Prefabricated, pre-tested units eliminate onsite internal cabling. Compact 20’HC container design ensures easy transport.
Efficiency: High-efficiency transformer maximizes yields. Low self-consumption enhances energy output.
Intelligence: Real-time monitoring of transformer, LV panel, and RMU. High-precision LV parameter sensors enable remote control of ACB/MV circuit breakers.
Reliability: Rugged build withstands harsh conditions. Optimized cooling ensures high availability with easy O&M. Comprehensive testing from components to full solutions.

Application

Containerized Smart Transformer Station String-type ntelligent Integrated Box-type Substations Step-up 3000kva 800V to 35KV 5

Winley's Qualifications

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
