Pole Mounted Transformer

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer

Brand Name:	WINLEY
Model Number:	D-50/13.2
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, CE, ISO

Transformer Type:

Pole Mount Distribution Transformer

Phase:

Single

Capacity:

50 KVA

Primary Voltage:

13200GrdY/7620

Secondary Voltage:

120/240V

Temperature Rise:

Cooling Class:

ONAN; Self-Cooled

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer

The pole-mounted transformers produced by WINLEY have obtained UL and cUL certifications, with rated capacities ranging from 10kVA to 333kVA, meeting or even exceeding ANSI, IEEE, CSA, IEC60076 and other standards.

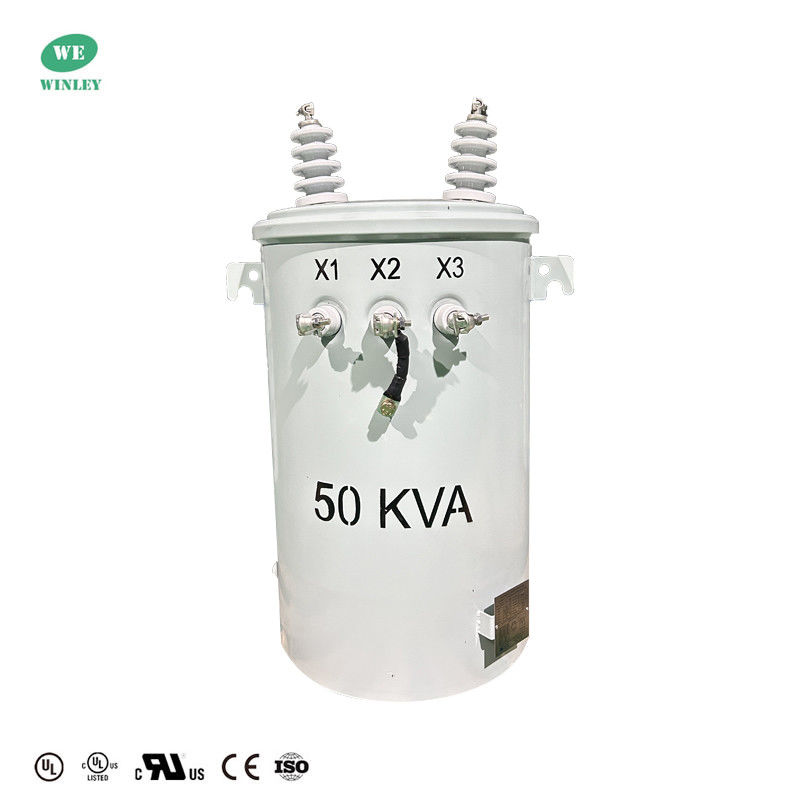

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer 0

Product Photo

Drawing

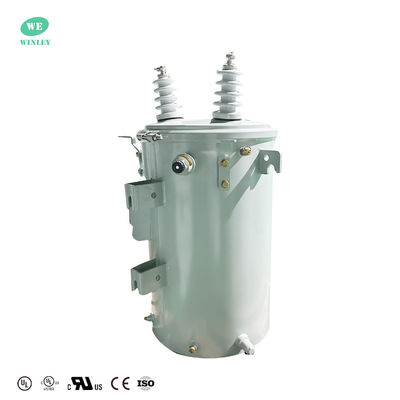

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer 2

Main data

Transformer Type	Overhead Distribution Transformer
Phase	Single Phase
Capacity	50 KVA
Primary Voltage	4160V
Secondary Voltage	120/240V (L-N-L)
Secondary Voltage Class	1.2 kV Class
Secondary Phasor	Dual Winding Single Phase
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	48 dBA

Pole Mounted Transformer Key Craft

1. Magnetic circuit design
The iron core's shape, size, hysteresis, and eddy current loss are important factors to consider. Properly designing the magnetic circuit can lead to efficient energy transmission and reduced loss.

2. Winding design
Factors such as the number of turns, wire material, interlayer insulation, and wiring method should be taken into consideration during the design process. By implementing a well-planned winding design, the transformer can achieve greater load capacity and reliability.

3. Insulation material selection
Choosing the right insulation materials is paramount to ensure safety and longevity. It's essential to opt for insulating materials that offer excellent insulation performance, high-temperature resistance, arc breakdown resistance, and moisture resistance.

4. Vacuum oil filling
Single-phase pole-mounted transformers typically utilize a vacuum oil filling method. This involves treating the transformer chips with a vacuum, injecting insulating oil, eliminating air bubbles, and sealing the transformers. The vacuum oiling process is beneficial as it enhances the insulation performance and thermal stability of the transformer, leading to prolonged service life.

5. Heat treatment
Transformers' mechanical properties and strength can be enhanced through heat treatment. This process alters the material's organizational structure, boosting its hardness and wear resistance while reducing stress and deformation.

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

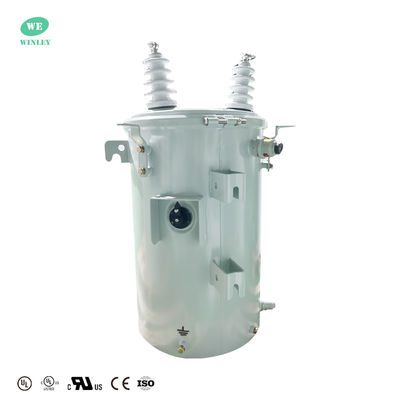

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer 3

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer 4

UL certified 50KVA Single Phase Pole Mounted Transformer Oil Type 13200V To 120V Power Distribution Transformer 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

pole mounted distribution transformer

single phase pole mounted transformer

Oil Immersed Distribution Transformer
