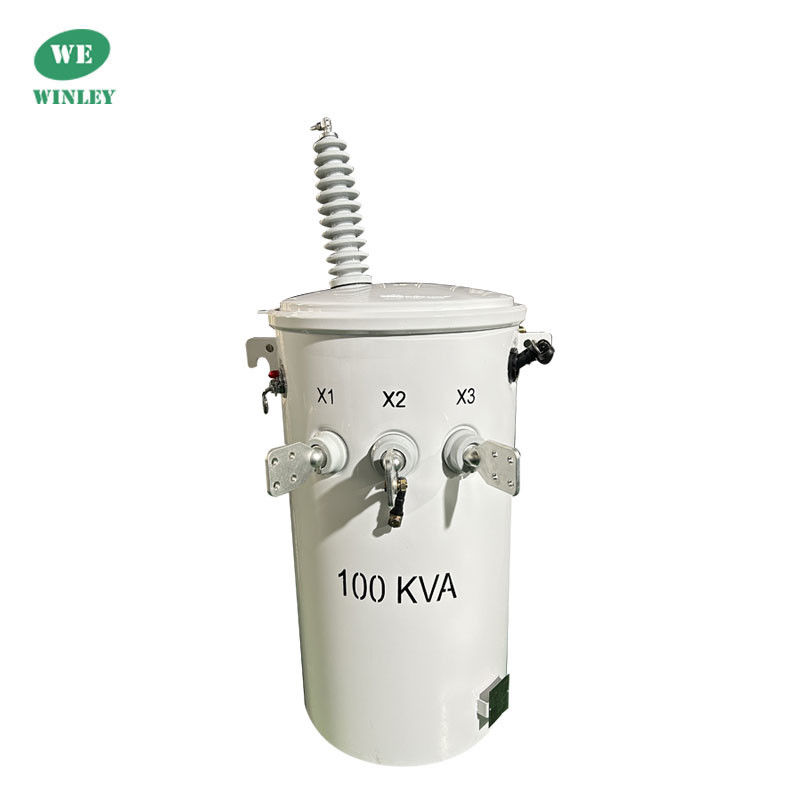

100KVA Single Phase Pole Mounted Power Transformer 34500V To 120V Overhead Distribution

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

100KVA Single Phase Pole Mounted Power Transformer 34500V To 120V Overhead Distribution

Brand Name:	WINLEY
Model Number:	D-100/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Overhead Distribution Transformer

Capacity:

100 KVA

Primary Voltage:

34500GrdY/19920

Secondary Voltage:

120/240V

Cooling Class:

ONAN; Self-Cooled

Winding Material:

Copper

Vector Group:

Dyn11 / Yyn0

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

34500V Pole Mounted Power Transformer

100KVA Pole Mounted Power Transformer

120V Pole Mounted Power Transformer

Product Description

100KVA Single Phase Pole Mounted Distribution Transformer Dual Voltage Step Down 34.5KV To 120V

Primary Voltage Ratings: 13.8 kV;12.47kV;2.4;7.2kV;14.4kV;24.94kV;34.5kV ,ect
Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277V;
CONNECTION TYPE: Ii0/Ii6
TYPE: Conventional/CSP
BIL: 30-150kV
Standards: IEEE/ANSI/CSA/IEC/DOE
Application: Distribution
Power Rating: 100 kVA

structure

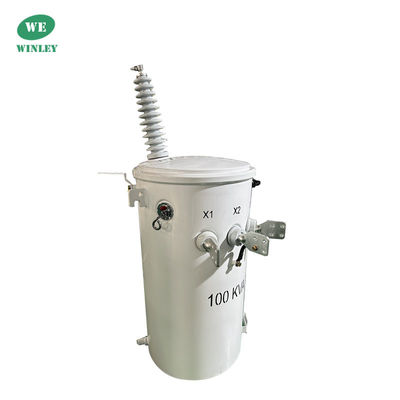

100KVA Single Phase Pole Mounted Power Transformer 34500V To 120V Overhead Distribution 0

Main data

Phase	Single Phase
Capacity	100 KVA
Primary Voltage	34500GrdY/19920
Secondary Voltage	120/240V (L-N-L)
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	50 dBA
Core Material	Grain Oriented Steel
Tank Material	Coated Steel
Dimensions*	30.70''-W x 31.85''-D x 47.20''-H
Efficiency	99.00%
No Load Loss (in watts)	+/- 270W
Full Load Loss (in watts)	+/- 1,250W

Product drawings

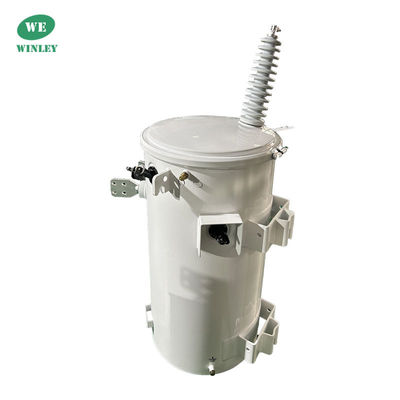

100KVA Single Phase Pole Mounted Power Transformer 34500V To 120V Overhead Distribution 1

Core features:

* Available option of FR3 fluid for increased fire safety or electrical grade mineral oil
* Meets or exceeds industry standards including ANSI, NEMA and DOE Energy Efficiency
* Constructed with EPRI-recommended interlaced core-type design for greater resistance to low-side voltage surges
* Polymer low-voltage bushings are standard at 5-50 kVA
* Cores and coils designed for high reliability and low field failure rates: Available in grain-oriented electrical or amorphous steel
* Domed cover design and formed cover band provide increased pressure withstand capability, eliminate bushing overhang and improve cover retention
* High-voltage bushing design improves gasket protection and seal
*Configurable to Rural Utilities Service (RUS) specification

Specifications

Rated Capacity (KVA)	High Voltage (V)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Efficiency(%)	Dimension HDW(mm)			Weight (lb)
10	34500/19920V 13800/7957V 13200/7620V 12470/7200V or others	120-240V 240-480V 347V 600V	36	120	98.7	500	525	885	330
15			50	195	98.82	520	565	905	462
25			80	290	98.95	560	590	935	567.6
37.5			105	360	99.05	610	625	935	748
50			135	500	99.11	635	675	1035	869
75			190	650	99.19	745	840	1035	1056
100			210	850	99.25	770	965	1135	1166
167			350	1410	99.33	795	890	1335	1496
250			500	2000	99.39	1080	1030	1390	2816
333			350	2500	99.43	1140	1060	1450	3410

Production process

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

pole mounted distribution transformer

single phase pole mounted transformer

Oil Immersed Distribution Transformer
