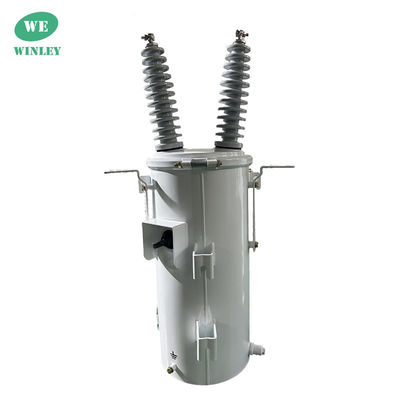

IEC Standard Single-Phase Pole Mounted Transformer 15KVA 24.94/0.24KV Power Distributiom System
| Brand Name: | WINLEY |
| Model Number: | D-15/25 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

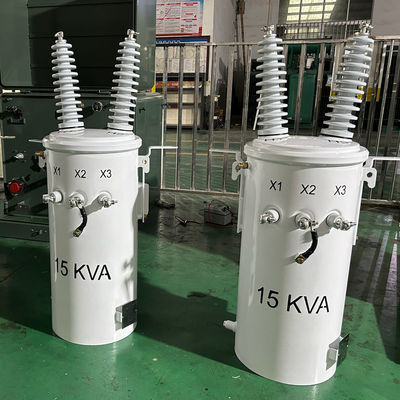

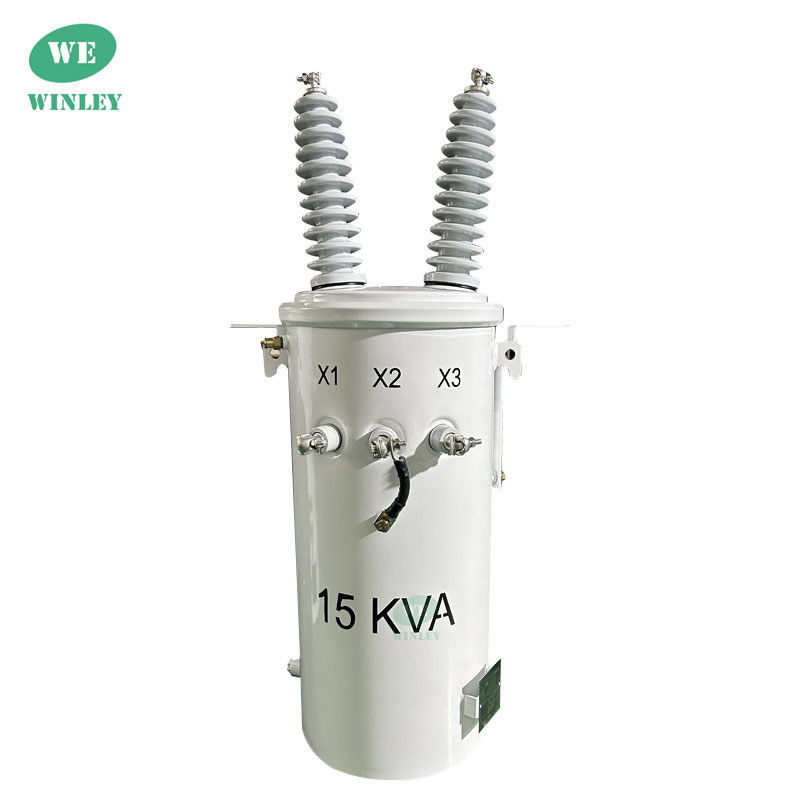

15KVA Pole Mounted Transformer
,IEC Standard Pole Mounted Transformer
,0.24KV Pole Mounted Transformer
IEC Standard Single-Phase Pole Mounted Transformer 15KVA 24.94/0.24KV Power Distributiom System
Why choose us
- The pole-mounted transformers produced by WINLEY have a rated capacity ranging from 10 kVA to 333 kVA and meet ANSI, IEEE, CSA, IEC60076 and other standards.
- Through optimized electrical design, our products are safe, stable, and efficient, helping you save operating costs
- Our products have been exported to North America, Central and South America, Southeast Asia and other markets in large quantities. We have rich experience and can provide comprehensive technical support and services.
Main data
| Phase | Single Phase |
| Primary Voltage | 24940GrdY/14400 |
| Secondary Voltage | 120/240V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | E |
| Cooling Class | ONAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 48 dBA |
| Dimensions* | 19.50''-W x 21.33''-D x 41.12''-H |
| Tank Diameter* | 15.8'' OD |
| Total Weight (Liquid Filled)* | 453 lb |
Drawing
Standard Feature
- Lifting lugs
- Arrester mounting pads
- Cover-mounted high votage porcelain
- Bushing(s) with eyebolt terminal
- Low voltage bushings wtih eyebolt terminals
- Low voltage enutral grounding strap(not shown)(10-50kVA class B-2 and B-3 only)
- ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
- Polyester insulated cover
- Self-venting and resealing cover assembly
- Centerline core/coil assembly support brackets
- Low voltage leads
- Oil fill plug with cover ground strap
- Tank ground pad
- The fllowing additional features are all standard on self protected type CSP units only
- Primary protective link (mounted in high voltage bushing)
- Surge arrester
- Secondary circuit breaker
- Secondary breaker operating handle with emergency overload reset and overload signal light
Specifications
| 10kva-500kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||

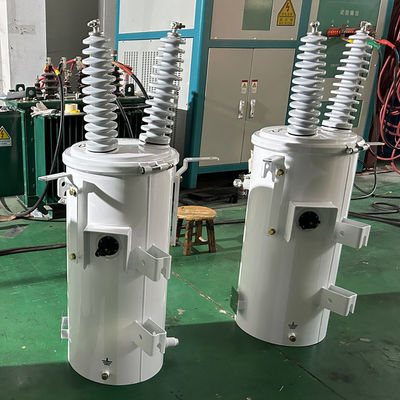

Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
