Pole Mounted Transformer

50kva Single Phase Pole Mounted Transformer Oil Immersed 12.47KV 304SS ANSI / IEEE C57

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

50kva Single Phase Pole Mounted Transformer Oil Immersed 12.47KV 304SS ANSI / IEEE C57

Brand Name:	WINLEY
Model Number:	D-50/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single

Capacity:

50 KVA

Primary Voltage:

13.8 KV/12.47kV/2.4/7.2kV/14.4kV/24.94kV/34.5kV/27.6kV,ect

Secondary Voltage:

120/240V; 240/480V;347/600Y;277V,ect

CONNECTION TYPE:

Ii0/Ii6

Tank Material:

304 Stainless Steel

Cooling Class:

ONAN; Self-Cooled

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

50kva Pole Mounted Transformer

12.47KV Pole Mounted Transformer

304SS Pole Mounted Transformer

Product Description

50kva Single Phase Pole Mounted Transformer Oil immersed 12.47KV 304SS ANSI / IEEE C57

Why choose us

1.The pole-mounted transformers produced by WINLEY have a rated capacity ranging from 10 kVA to 333 kVA and meet ANSI, IEEE, CSA, IEC60076 and other standards.
2.Through optimized electrical design, our products are safe, stable, and efficient, helping you save operating costs
3.Our products have been exported to North America, Central and South America, Southeast Asia and other markets in large quantities. We have rich experience and can provide comprehensive technical support and services.

Product Photo

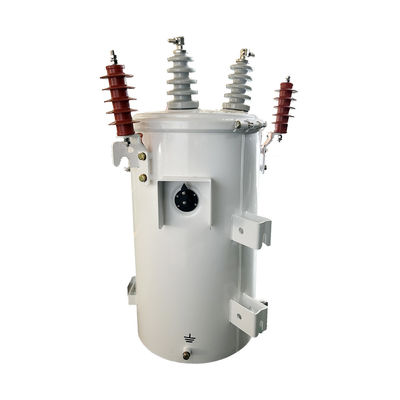

50kva Single Phase Pole Mounted Transformer Oil Immersed 12.47KV 304SS ANSI / IEEE C57 0

Drawing

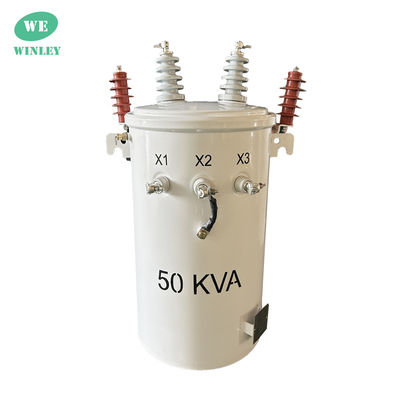

50kva Single Phase Pole Mounted Transformer Oil Immersed 12.47KV 304SS ANSI / IEEE C57 1

Main data

Phase	Single Phase
Capacity	50 KVA
Primary Voltage	12470GrdY/7200 Grounded Wye (2 Wire)
Secondary Voltage	120/240V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Tank Material	304 Stainless Steel
Dimensions*	23.8''-W x 25.67''-D x 40.26''-H
Total Weight (Liquid Filled)*	695 lb

Structural Features

1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

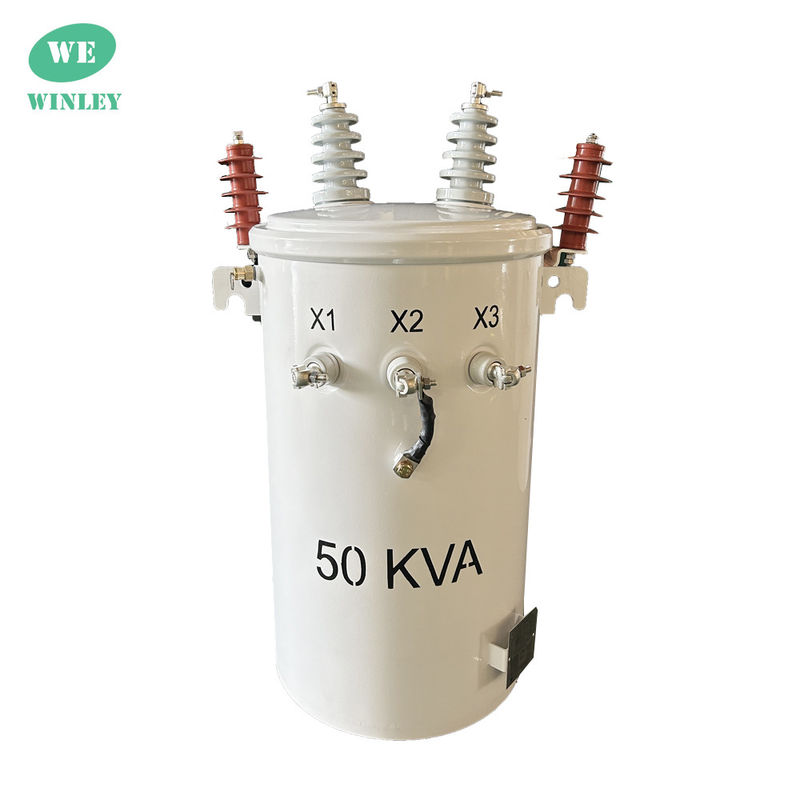

50kva Single Phase Pole Mounted Transformer Oil Immersed 12.47KV 304SS ANSI / IEEE C57 2

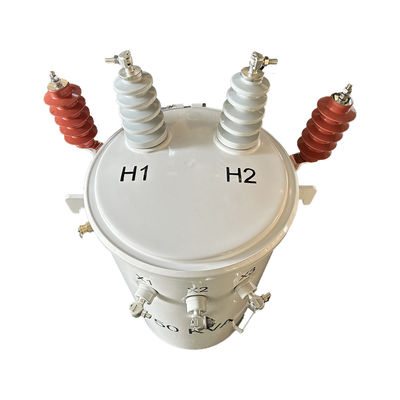

50kva Single Phase Pole Mounted Transformer Oil Immersed 12.47KV 304SS ANSI / IEEE C57 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
