Name: 10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power
Brand: Xiamen Winley Electric Co.,Ltd
SKU: D-10/5
Price: 5,500.00 USD
Availability: InStock

Brand Name:	WINLEY
Model Number:	D-10/5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mounted Transformer

Capacity:

10 KVA

Primary Voltage:

4160GrdY/2400 (2 Wire)

Secondary Voltage:

120/240V

Insulation Fluid:

FR-3 Oil

Temperature Rise:

65°C

Winding Material:

Copper

Load Loss:

120W

Supply Ability:

1000set/month

Highlight:

10 Kva Pole Mounted Distribution Transformer

4160V Pole Mounted Distribution Transformer

120V Pole Mounted Distribution Transformer

Product Description

10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power

Product Factory Photos

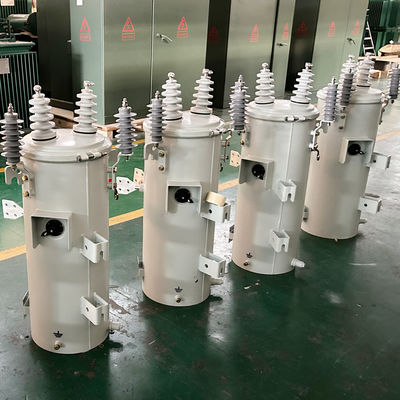

10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power 0

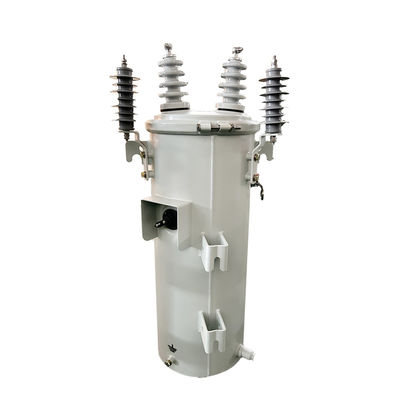

10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power 1

Main data

Phase	Single Phase
Capacity	10 KVA
Primary Voltage	4160GrdY/2400 (2 Wire)
Primary BIL	60 kV
Secondary Voltage	120/240V (L-L-N)
Frequency	60 Hz
Insulation Fluid	FR-3 Oil - Non PCB Fluid
Cooling Class	KNAN
No Load Loss	35W
Full Load Loss	125W
Impedance (approx)	2%
Winding Material	Copper
Dimensions	16.9''-W x 19.9''-D x 35.6''-H

Drawing

10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power 2

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Production process

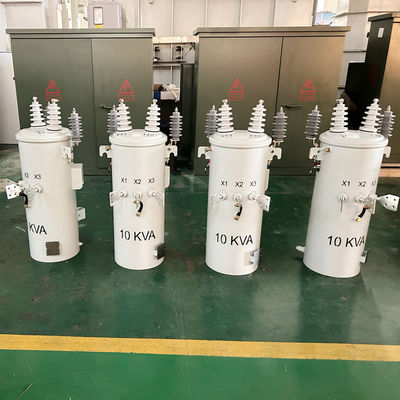

10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power 3

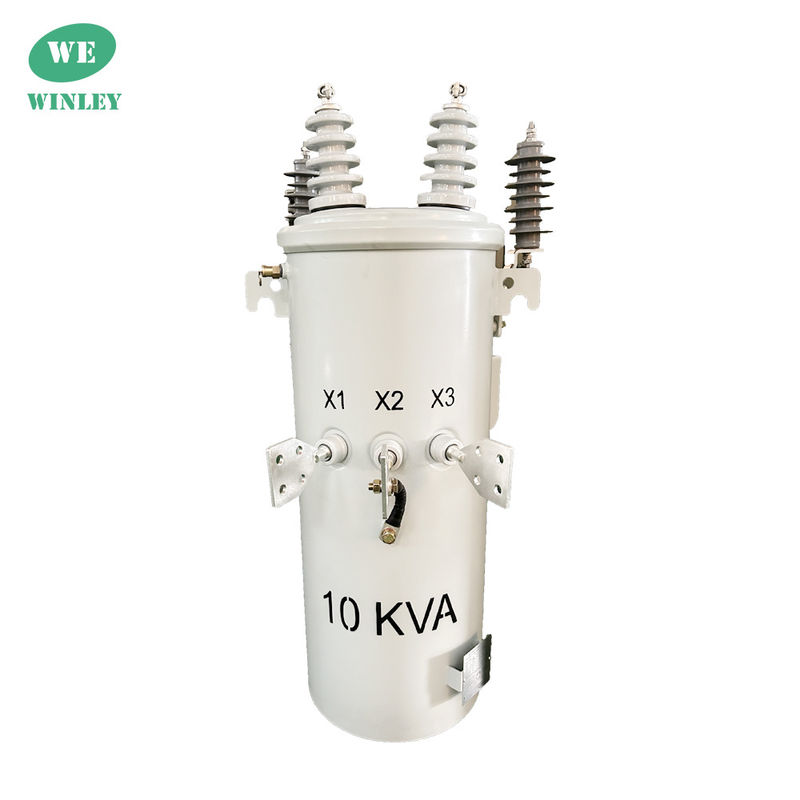

10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power 4

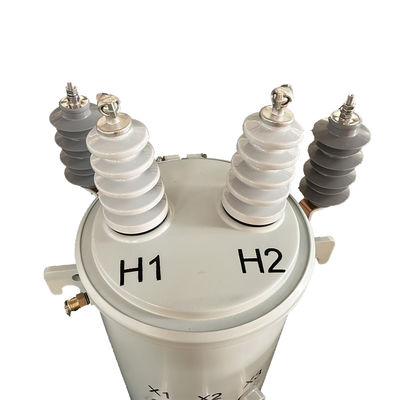

10 Kva ANSI / IEEE Standard Single Phase Pole Mounted Distribution Transformer 2 Wire 4160V To 120V Power 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
