167Kva Single Phase Pole Mounted Transformer CSP Type Distribution Liquid Filled 100Hz 4160V To 480V FR3

Brand Name:	WINLEY
Model Number:	D-167/4.16
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

CSP Overhead Distribution Transformer

Phase:

Single Phase

Capacity:

167KVA Or Customized

Primary Voltage:

4160GrdY/2400

Secondary Voltage:

240/480V (L-N-L)

Frequency:

100 Hz

Temperature Rise:

Efficiency Standard(s):

DOE 2016 , ANSI/IEEE

Supply Ability:

1000set/month

Highlight:

100Hz Pole Mounted Transformer

167Kva Pole Mounted Transformer

4160V Pole Mounted Transformer

Product Description

167Kva Single Phase Pole Mounted Transformer CSP Type Distribution Liquid Filled 100Hz 4160V To 480V FR3 DOE 2016 Standards

Single phase pole mounted transformers designed and produced by Zhibo are normally used for stepping utility distribution voltages(from 2400V to 34500V) down to lower utilization voltages. Although some are used for stepping down to commercial and industrial voltages such as 277V, 240/480V, 2400V and 4800V, most are used for stepping down to the single phase voltage of 120/240V.

167Kva Single Phase Pole Mounted Transformer CSP Type Distribution Liquid Filled 100Hz 4160V To 480V FR3 0

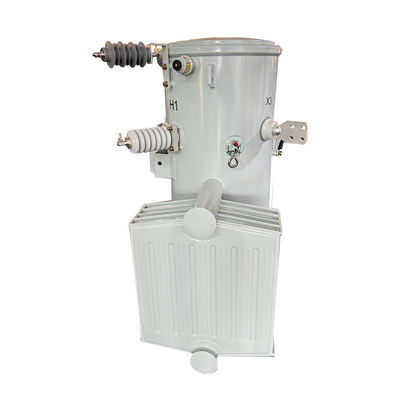

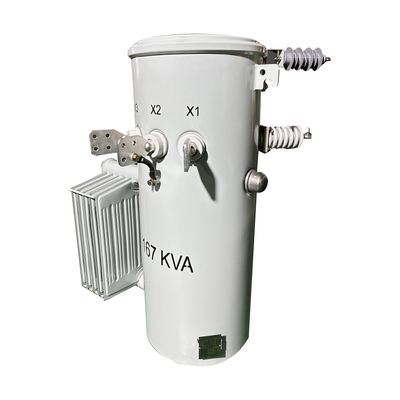

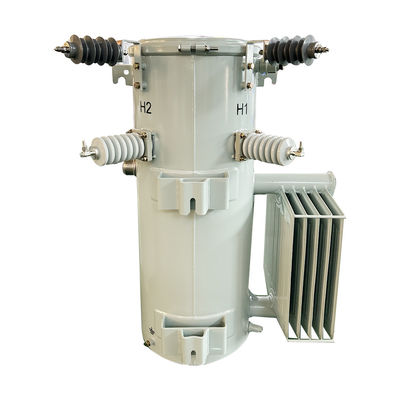

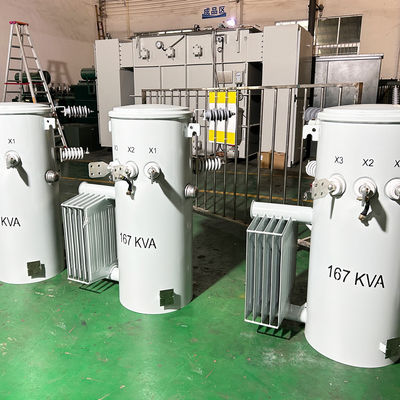

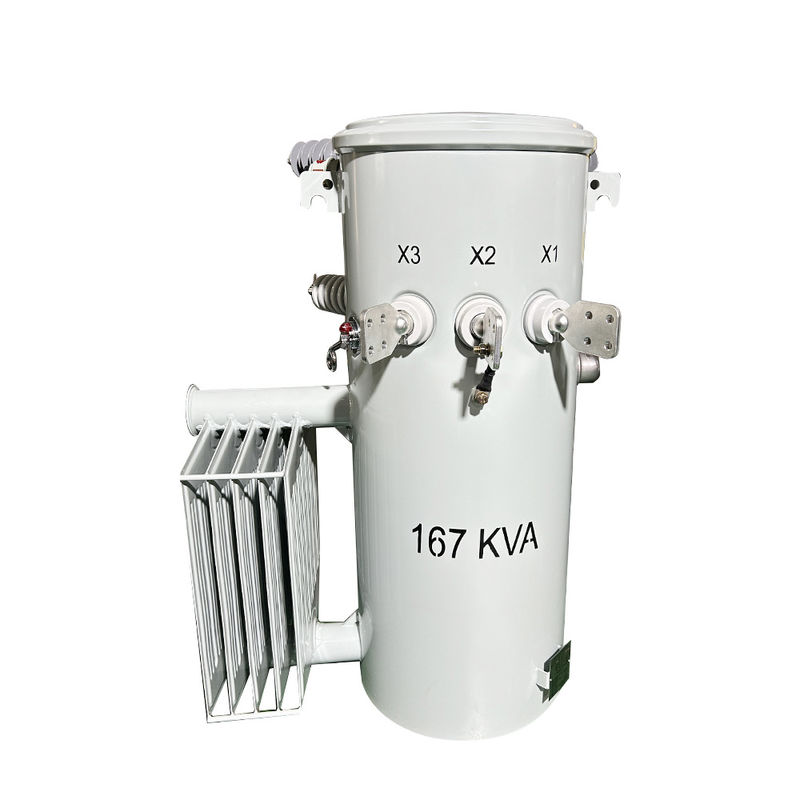

Factory product photos

Main data

Transformer Type	Overhead Distribution Transformer
Phase	Single Phase
Capacity	167 KVA
Primary Voltage	4160GrdY/2400
Secondary Voltage	240/480V (L-N-L)
Frequency	100 Hz
Temperature Rise	65°C
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Efficiency	99.10%
No Load Loss (in watts)	+/- 450W
Full Load Loss (in watts)	+/- 1,824W

Product Structure

167Kva Single Phase Pole Mounted Transformer CSP Type Distribution Liquid Filled 100Hz 4160V To 480V FR3 3

Standard Features

Quality System ISO 9001 certified
Meet DOE Energy Efficiency Standard or exceeds ANSI/IEEE and CSA standards
Lifting lugs
Arrester mounting pads
Cover-mounted high votage porcelain
Bushing(s) with eyebolt terminal
Low voltage bushings wtih eyebolt terminals
Low voltage enutral grounding strap(not shown)(10-50kVA class B-2 and B-3 only)
ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
Polyester insulated cover
Self-venting and resealing cover assembly
Centerline core/coil assembly support brackets
Low voltage leads
Oil fill plug with cover ground strap
Tank ground pad
The fllowing additional features are all standard on self protected type CSP units only
Primary protective link (mounted in high voltage bushing)
Surge arrester
Secondary circuit breaker
Secondary breaker operating handle with emergency overload reset and overload signal light

Drawing

167Kva Single Phase Pole Mounted Transformer CSP Type Distribution Liquid Filled 100Hz 4160V To 480V FR3 4

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

167Kva Single Phase Pole Mounted Transformer CSP Type Distribution Liquid Filled 100Hz 4160V To 480V FR3 5

167Kva Single Phase Pole Mounted Transformer CSP Type Distribution Liquid Filled 100Hz 4160V To 480V FR3 6

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
