Pole Mounted Transformer

167 Kva Single Phase Pole Mounted Transformer Power 35KV ANSI / IEEE Standard C57.12.20

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

167 Kva Single Phase Pole Mounted Transformer Power 35KV ANSI / IEEE Standard C57.12.20

Brand Name:	WINLEY
Model Number:	D-100/35
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

167Kva

Input Voltage:

33260Y/19200

Primary Voltage:

120/240V (L-L-N)

Primary BIL:

150 KV

Temperature Rise:

Frequency:

Standard:

ANSI/IEEE

Cooling Class:

Class E Insulation - 120°C, 248°F

Windings Material:

Copper

Supply Ability:

1000set/month

Highlight:

35KV Pole Mounted Transformer

ANSI Pole Mounted Transformer

IEEE Standard Pole Mounted Transformer

Product Description

167 kva Single Phase pole Mounted Transformer Power 35KV ANSI / IEEE Standard C57.12.20

WINLEY is a professional manufacturer of pole mounted transformers, capacities ranging from 10 kVA to 333 kVA, meeting ANSI/IEEE C57, IEC60076 standards.

Standard Features

High pressure porcelain bushing
Low pressure porcelain bushing
Eyebolt Terminals - HV and LV
LV neutral point earthing bus
Compliant with ANSl support lugs
Mild steel tank
Non-PCB mineral oil/FR3rm fluid
0ff-load tap changer
Oil-filling plug with cap and earth
Pressure relief device
Coil: copper/Aluminum winding
lron core: silicon steel
Lifting ears
Nameplate engraving

Main Data

Phase	Single Phase
Capacity	167 KVA
Primary Voltage	33260Y/19200 Grounded Wye (2 Wire)
Primary BIL	150 kV
Secondary Voltage	120/240V (L-L-N)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN
No Load Loss	345W
Full Load Loss	1400W
Efficiency @ 100% Load	98.95%
Winding Material	Copper
Dimensions	37'' x 32'' x 57''
Weight	1,540 lb

Product Drawing

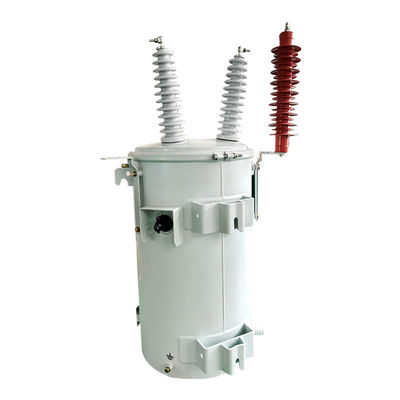

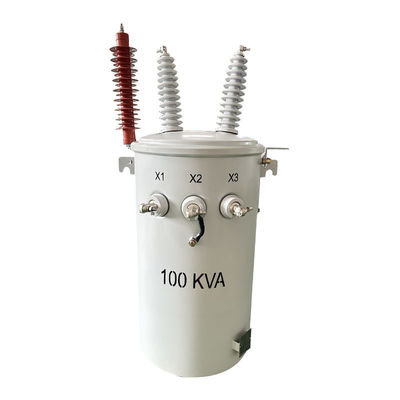

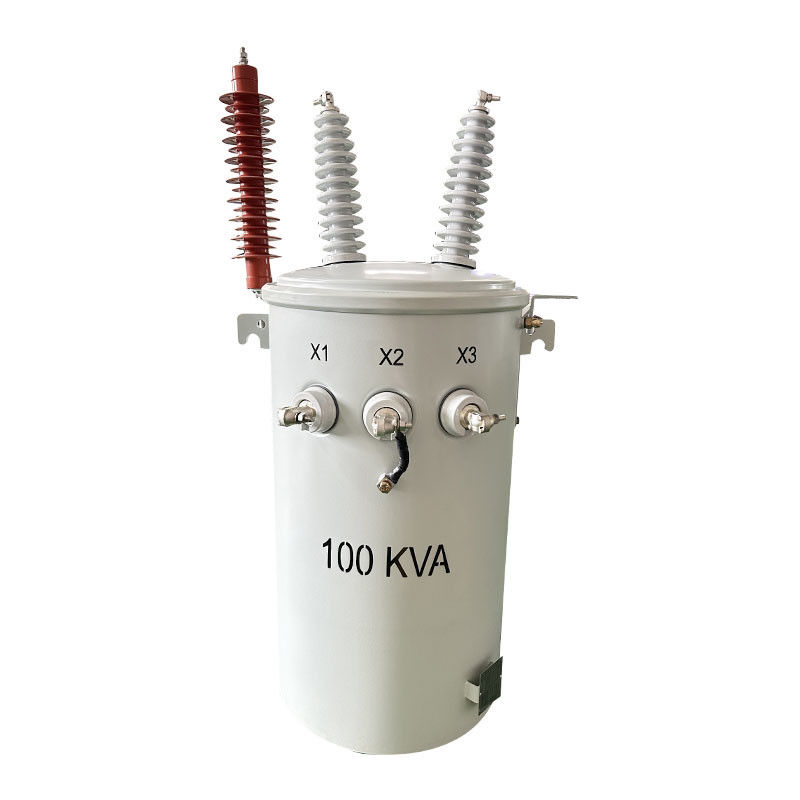

167 Kva Single Phase Pole Mounted Transformer Power 35KV ANSI / IEEE Standard C57.12.20 1

Product pecification

Product Specification
Rated Capacity (kVA)	High Voltage (V)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Efficiency (%)	Dimension HDW(mm)			Weight (kg)
10	34500/19920V 13800/7957V 13200/7620V 12470/7200V or others	120-240V 240-480V 347V 600V	36	120	98.7	500	525	885	150
15			50	195	98.82	520	565	905	210
25			80	290	98.95	560	590	935	258
37.5			105	360	99.05	610	625	935	340
50			135	500	99.11	635	675	1035	395
75			190	650	99.19	745	840	1035	480
100			210	850	99.25	770	965	1135	530
167			350	1410	99.33	795	890	1335	680
250			500	2000	99.39	1080	1030	1390	1280
333			350	2500	99.43	1140	1060	1450	1550

Testing

Ratio Test
Winding Resistance Test
No Load Loss Test
No Load Current Test
Applied Voltage Tests
Induction Voltage Tests
Leakage Test
Other Routine Tests (as applicable)

Product Process

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
