100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V

Brand Name:	WINLEY
Model Number:	D-100/35
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Capacity:

100 KVA

Primary Voltage:

34500GrdY/19920

Secondary Voltage:

120/240V

Cooling Class:

ONAN /KNAN

Temperature Rise:

Frequency:

50/60 Hz

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

Oil immersed Pole Overhead Distribution Transformer

100KVA Pole Overhead Distribution Transformer

34500V Pole Overhead Distribution Transformer

Product Description

100KVA Single Phase Pole Overhead Distribution Transformer Oil immersed 34500V To 120V

WINLEY‘s single-phase fully complies with or even exceeds international standards such as ANSI/IEEE, CSA, and DOE.

Single-phase pole-mounted transformer power ratings:10 kVA,25 kVA,37.5 kVA, 50 kVA, 100 kVA, 167 kVA, 250 kVA, 333 kVA.

Single-phase pole-mounted transformer voltage ratings:2400V, 7200V, 124 70V , 7620V, 13200V, 13800V, 19920V, 34500V, 27600V .

Product Structure

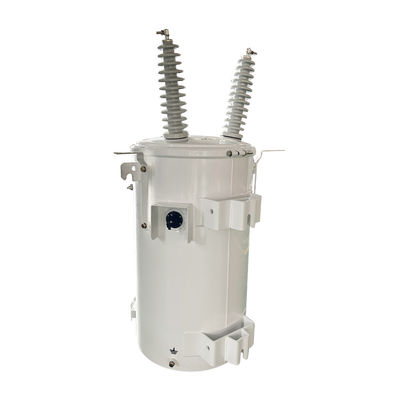

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V 0

Main data

Transformer Type	Overhead Distribution Transformer
Phase	Single Phase
Capacity	100 KVA
Primary Voltage	34500GrdY/19920
Secondary Voltage	120/240V
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN
Efficiency Standard(s)	DOE 2016, ANSI/IEEE
Winding Material	Copper
Ambient Temperature Rating	43°C
Sound Level	50 dBA
Dimensions*	30.65''-W x 31.80''-D x 47.19''-H
Total Weight (Liquid Filled)*	959 lb
Efficiency	99.00%
No Load Loss (in watts)	+/- 270W
Full Load Loss (in watts)	+/- 1,100W

Product drawings

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V 1

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE/CSA	1.0-4.5%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Structural Features

The tank lids are equipped with high-voltage porcelain bushings featuring ring terminals that accommodate both aluminum and copper cables.
The circular sewing structure of the tank cover promotes even stress distribution and ensures reliable sealing.

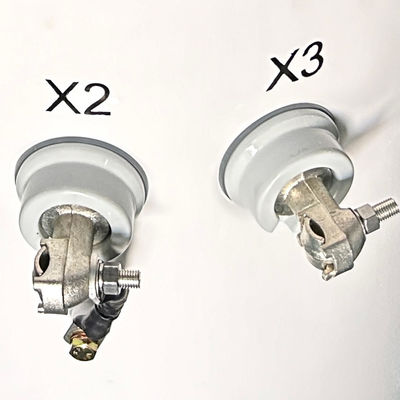

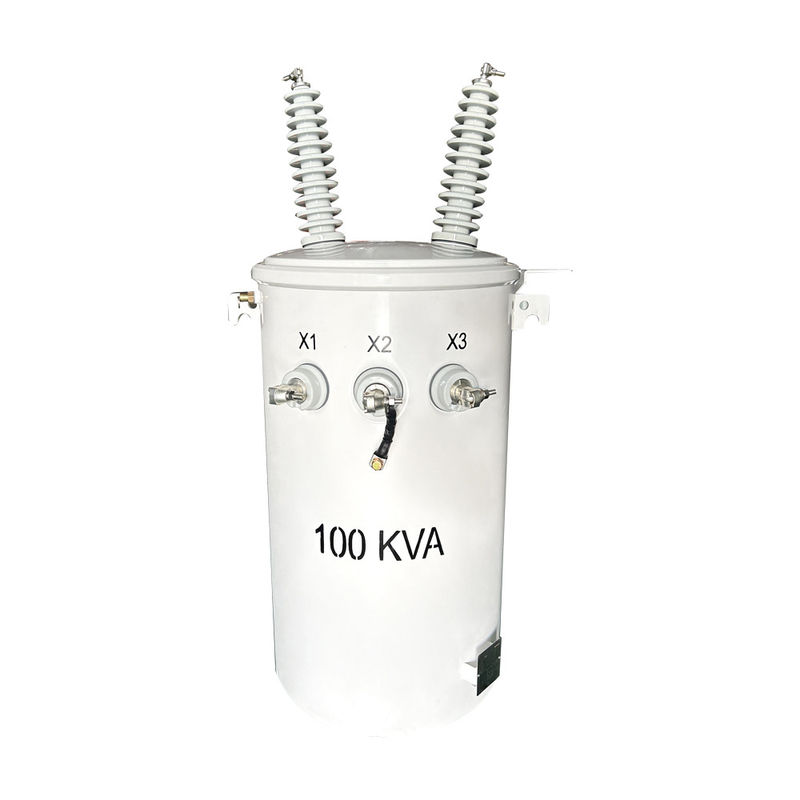

Tin-plated ring bolts on the tank wall function as the low-voltage bushings and terminals.
This transformer includes a self-sealing pressure relief valve.
The suspension hooks at the top and bottom of the transformer comply with ANSI standards.
The ground terminal on the tank is designed as a ring bolt ground terminal.

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V 2

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
