Pole Mounted Transformer

100KVA Single Phase Pole Mounted Overhead Distribution Transformer ANSI / IEEE Standard 13.8KV

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

100KVA Single Phase Pole Mounted Overhead Distribution Transformer ANSI / IEEE Standard 13.8KV

Brand Name:	WINLEY
Model Number:	D-100/13.8
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Oil-immersed Transformer

Capacity:

100 KVA

Primary Voltage:

13800GrdY/7968

Secondary Voltage:

120/240V

Cooling Class:

Winding Material:

Copper

Insulation Rating:

Class E Insulation - 120°C, 248°F

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

13.8KV Pole Mounted Transformer

100KVA Pole Mounted Transformer

Pole Mounted Distribution Transformer

Product Description

100KVA Single Phase Pole Mounted Overhead Distribution Transformer ANSI/ IEEE Standard 13.8KV

The pole-mounted transformers produced by WINLEY ELECTRIC have rated capacities ranging from 10 kVA to 333 kVA, meeting ANSI/IEEE C57, IEC60076 and other standards, and meeting or even exceeding DOE and CSA efficiency requirements.

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	100 KVA
Primary Voltage	13800GrdY/7968
Secondary Voltage	120/240V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Fluid Weight*	205.93 lb
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	50 dBA
Dimensions*	30.70''-W x 31.85''-D x 47.20''-H
Total Weight (Liquid Filled)*	965 lb
Efficiency	99.05%
No Load Loss (in watts)	+/- 270W
Full Load Loss (in watts)	+/- 1,100W

Product drawings

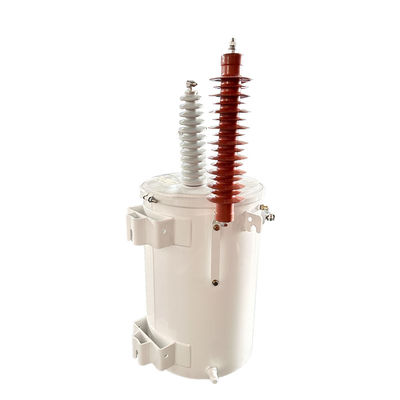

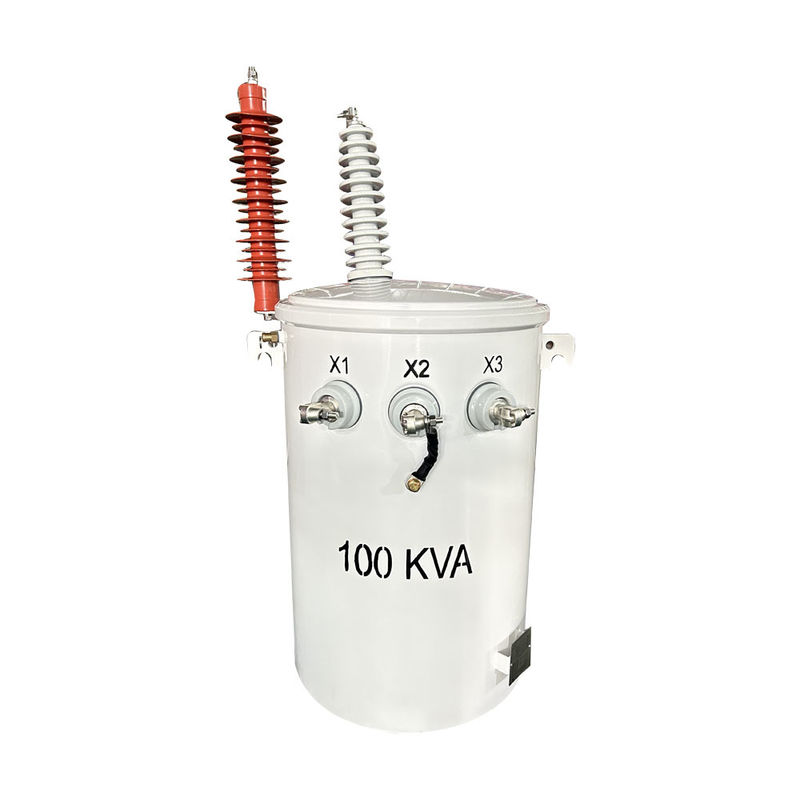

100KVA Single Phase Pole Mounted Overhead Distribution Transformer ANSI / IEEE Standard 13.8KV 0

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49
