Pole Mounted Transformer

50kva Single Phase Pole Mounted Transformer Oil Immersed Distribution 4160V To 120/240V

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

50kva Single Phase Pole Mounted Transformer Oil Immersed Distribution 4160V To 120/240V

Brand Name:	WINLEY
Model Number:	D-75/5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single

Transformer Type:

Overhead Distribution Transformer

Capacity:

75 KVA

Primary Voltage:

4160GrdY/2400

Secondary Voltage:

120/240V

Temperature Rise:

Cooling Class:

ONAN; Self-Cooled

Efficiency Standard(s):

DOE 2016

Supply Ability:

1000set/month

Highlight:

240V Pole Mounted Transformer

50kva Pole Mounted Transformer

Oil Immersed Pole Mounted Transformer

Product Description

50kva Single Phase Pole Mounted Transformer Oil Immersed Distribution 4160V To 120/240V

Type: Conventional type/CSP type

Rated power: up to 333 kVA

Primary voltage: up to 34.5 kV

Secondary voltages: up to 500 V

Standards: IEEE/ANSI/CSA/IEC/DOE

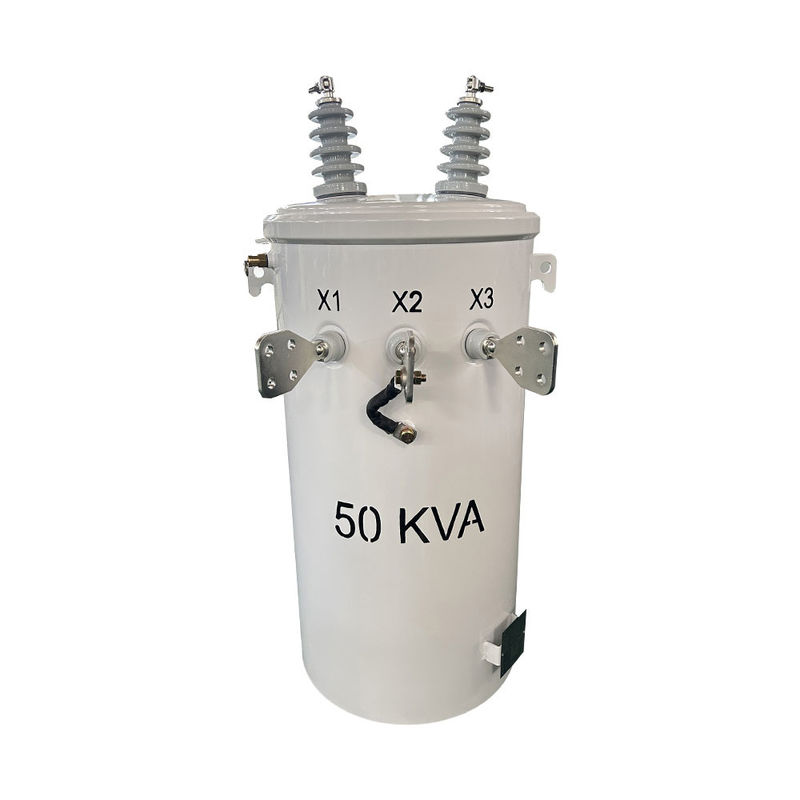

50kva Single Phase Pole Mounted Transformer Oil Immersed Distribution 4160V To 120/240V 0

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	50 KVA
Primary Voltage	4160V
Secondary Voltage	120/240V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	E
Cooling Class	ONAN
Impedance	2.75%
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Core Material	Grain Oriented Steel
Tank Material	Coated Steel
Dimensions*	24.6''-W x 26.75''-D x 40.15''-H
Efficiency	99.00%

Product drawings

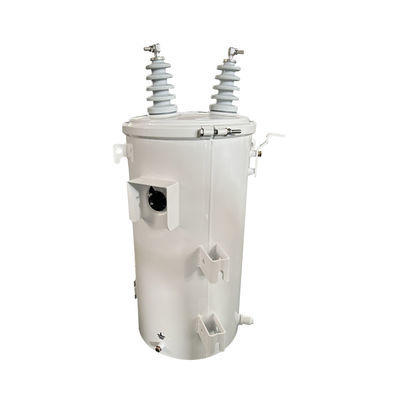

50kva Single Phase Pole Mounted Transformer Oil Immersed Distribution 4160V To 120/240V 1

Standard Feature

■Quality System ISO 9001 certified.
■Paint system meeting or exceeding the performance of the IEEEC57.12.28 Standard.
■Lifting lugs meeting all of the requirements of the CSA C2.1-06 and CSA C2.2-06 Standard
■Computer aided design for mechanical & electrical calculations (C.A.D.).
■Core and coils designed for an optimum Total Ownership Cost (TOC).
■Provision for surge arrester bracket,bracket available as an option.
■"Low-high-low"windings for increased short circuit stren-gth,efficiency and thermal strength
■Cover or sidewall mounted high voltage bushing(s)as required.
■Wound core with step-lap joints for increased efficiency and lower noise levels.
■Dual voltage designed to meet BIL and short circuit requirements on both connections.
■Automatic self-resealing pressure relief valve.
■Low voltage spade or clamp type(basket)terminals as required.
■Multiple cover clamps to ensure proper sealing and to minimize water retention on the cover edge.

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Accessories

50kva Single Phase Pole Mounted Transformer Oil Immersed Distribution 4160V To 120/240V 2

Production process

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
