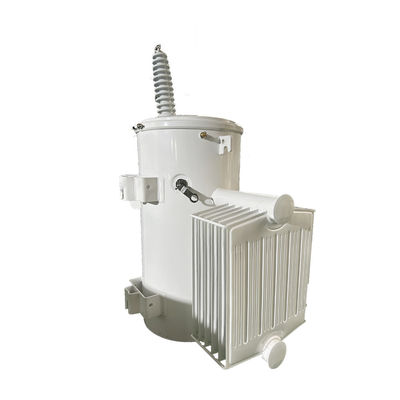

125KVA Single Phase Pole Mounted Transformer Oil Immersed Distribution 34.5KV To 120V

Brand Name:	WINLEY
Model Number:	D-125/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Overhead Distribution Transformer

Capacity:

125 KVA

Primary Voltage:

34500GrdY/19920

Secondary Voltage:

120/240V

Cooling Class:

ONAN; Self-Cooled

Winding Material:

Copper

Temperature Rise:

Efficiency:

99.10%

Supply Ability:

1000set/month

Highlight:

125KVA Distribution Transformer

120V Pole Mounted Transformer

125KVA Pole Mounted Transformer

Product Description

125KVA Single Phase Pole Mounted Transformer Oil immersed Distribution 34.5KV To 120V

Primary Voltage:6KV/7.2KV/10KV/11KV/13.2KV/24.94kv/33kv/34.5kv/35kV Or Others
Secondary Voltage:120-240/240-480/347/600
Connection Type: Dyn11/Yyno or others
Standards: ANSI/IEEE, CSA/CAN, DOE
Power Rating: 10kVA-333kVA

structure

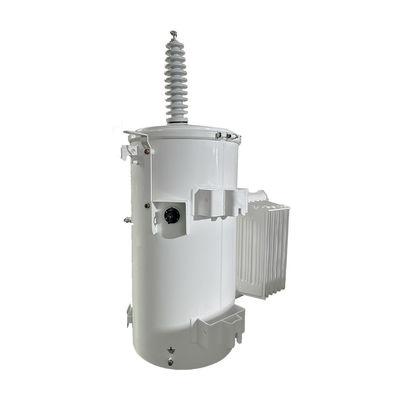

125KVA Single Phase Pole Mounted Transformer Oil Immersed Distribution 34.5KV To 120V 0

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Transformer Configuration	Liquid Filled Pole Mounted
Transformer Polarity Type	Subtractive
Phase	Single Phase
Capacity	125 KVA
Primary Voltage	34500GrdY/19920

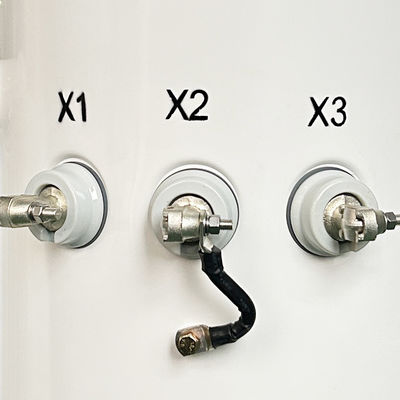

Secondary Voltage	120/240V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Primary Termination	Porcelain High Voltage Bushing
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Dimensions*	43.30''-W x 35.00''-D x 51.10''-H
Efficiency	99.10%
No Load Loss (in watts)	+/- 450W
Full Load Loss (in watts)	+/- 1,830W

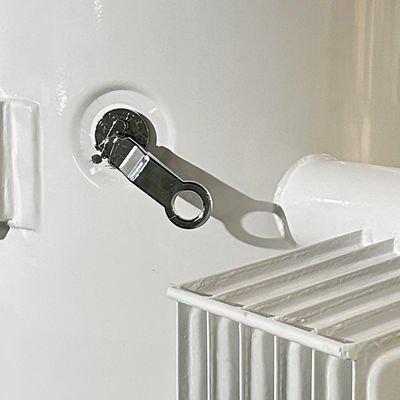

The CSP overhead transformer, a standout product from WINLEY Transformer, incorporates essential protective features. It integrates a surge arrester on the high voltage side, a circuit breaker on the low voltage side, and includes a built-in protective fuse. This all-in-one design eliminates the need for additional protective devices, resulting in significant cost savings during installation.

Product drawings

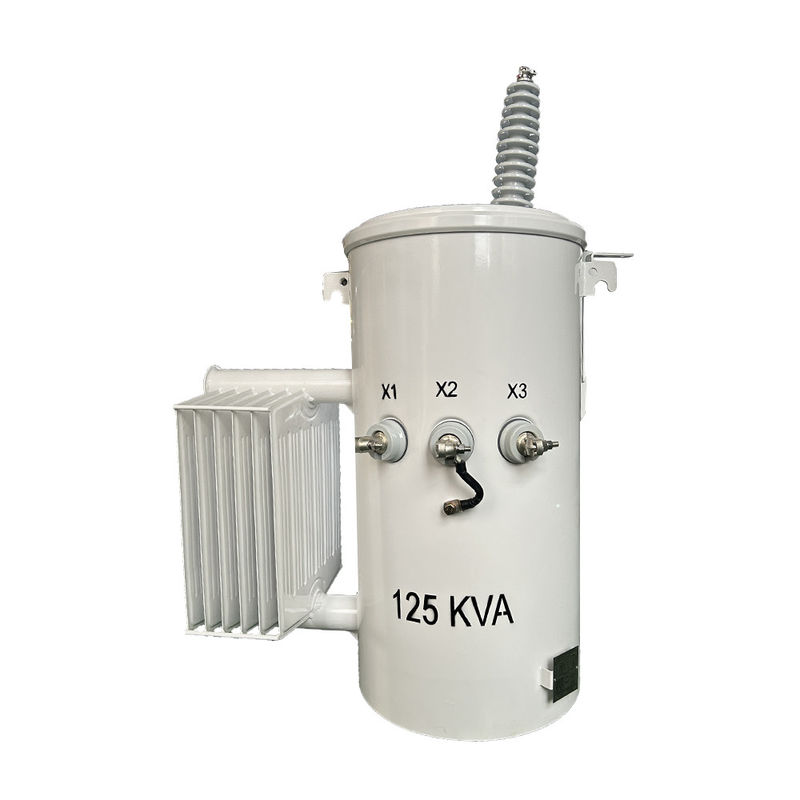

125KVA Single Phase Pole Mounted Transformer Oil Immersed Distribution 34.5KV To 120V 1

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Production process

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
