50KVA Single Phase Pole Distribution Transformer Oil immersed 12470V To 277V

Brand Name:	WINLEY
Model Number:	D-50/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Overhead Distribution Transformer, Conventional Type

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

Frequency:

60 HZ

Temperature Rise:

Winding Material:

Copper

Insulation Fluid:

FR-3 Oil

K-Factor Rating:

K-1 (Standard)

Supply Ability:

1000set/month

Highlight:

12470V Pole Distribution Transformer

277V Pole Distribution Transformer

50KVA Pole Distribution Transformer

Product Description

50KVA Single Phase Pole Distribution Transformer Oil immersed 12470V To 277V

The pole-mounted transformers produced by WINLEY ELECTRIC have rated capacities ranging from 10 kVA to 333 kVA, meeting ANSI/IEEE C57, IEC60076 and other standards, and meeting or even exceeding DOE and CSA efficiency requirements. Our products have been exported in large quantities to markets such as North America, Central and South America, and Southeast Asia, and have been widely praised.

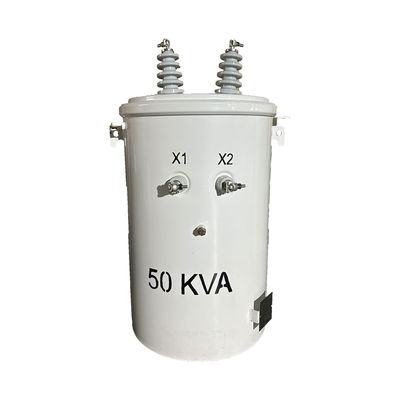

50KVA Single Phase Pole Distribution Transformer Oil immersed 12470V To 277V 0

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	50 KVA
Primary Voltage	12470GrdY/7200
Secondary Voltage	277V
Secondary Phasor	Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Insulation Fluid	FR-3 Oil - Non PCB Fluid
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Efficiency	98.90%

Product drawings

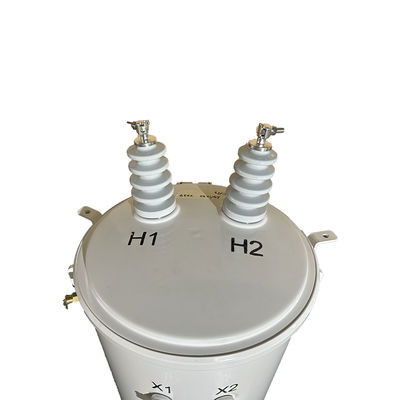

50KVA Single Phase Pole Distribution Transformer Oil immersed 12470V To 277V 1

Sinlge Phase Pole Mounted Transformer Structural Features

1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.

2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.

3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.

4. This item comes with a pressure relief valve that is capable of self-sealing.

5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.

6. The ground terminal on the tank is a ring bolt ground terminal.

Specification

Single phase Pole Mounted transformer
Rated Capacity	High Voltage	Low Voltage	Connection Symbol	Standard	Short-circuit impedance	Efficiency
(kVA)	(v)	(v)	Connection Symbol	Standard	(%)	(%)
10	34500/19920V 13800/7957V 13200/7620V 12470/7200V or others	120-240V 240-480V 347V 600V	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

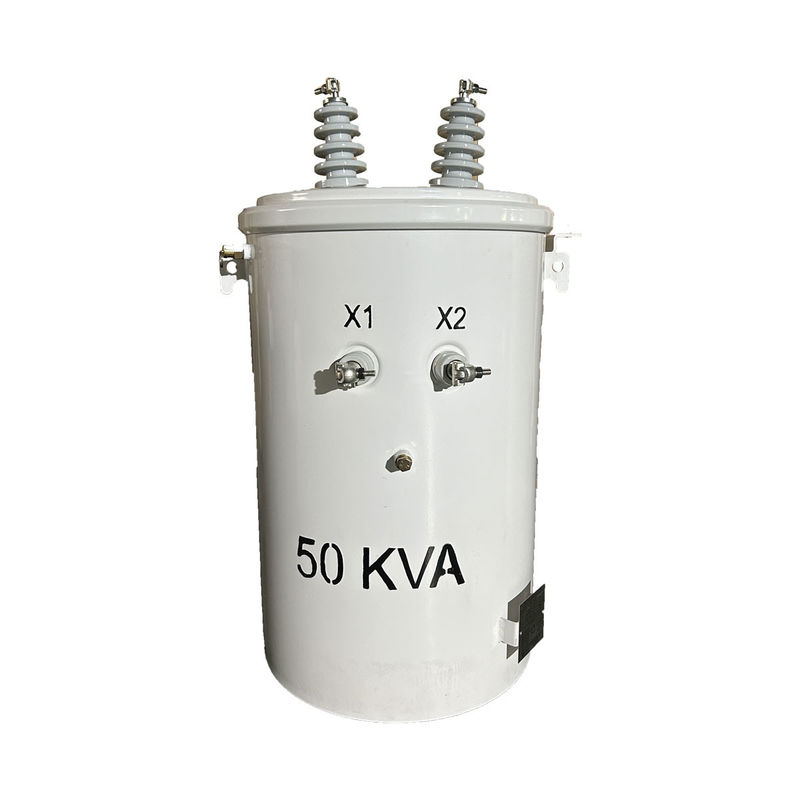

50KVA Single Phase Pole Distribution Transformer Oil immersed 12470V To 277V 2

50KVA Single Phase Pole Distribution Transformer Oil immersed 12470V To 277V 3

50KVA Single Phase Pole Distribution Transformer Oil immersed 12470V To 277V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
