Name: 50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v
Brand: Xiamen Winley Electric Co.,Ltd
SKU: D-50/12.47
Price: 5,500.00 USD
Availability: InStock

Brand Name:	WINLEY
Model Number:	D-50/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Overhead Distribution Transformer, Conventional Type

Capacity:

50 KVA

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

277/480V

Frequency:

60 Hz

Temperature Rise:

65°C

Cooling Class:

ONAN /KNAN

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

12470v Pole Mounted Distribution Transformers

277v Pole Mounted Distribution Transformers

50kva Pole Mounted Distribution Transformers

Product Description

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v

The pole-mounted transformers produced by WINLEY ELECTRIC have rated capacities ranging from 10 kVA to 333 kVA, meeting ANSI/IEEE C57, IEC60076 and other standards, and meeting or even exceeding DOE and CSA efficiency requirements.

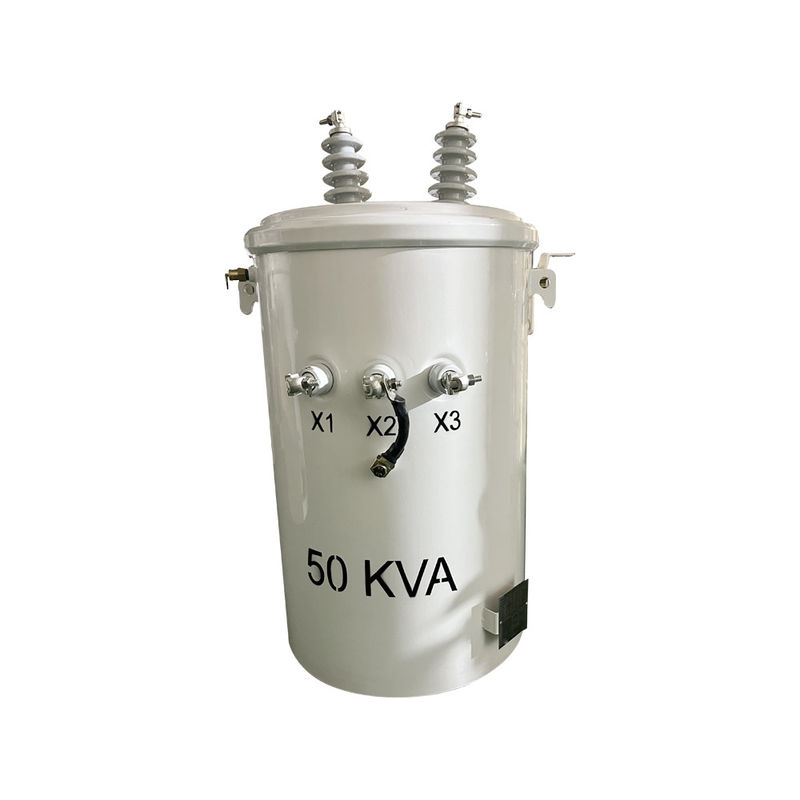

50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v 0

Product Description

Primary Voltage Ratings :34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 or others
Secondary Voltage Ratings :120-240/240-480/347/600V or othersH.V.TAP RANGE : ±2x2.5% or others
TYPE : Conventional type / CSP typeThis is an cleetrical device that receives single-phase AC power aswell as outputs single phase AC.

structure

50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v 1

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Capacity	50 KVA
Primary Voltage	12470GrdY/7200
Secondary Voltage	277/480V
Secondary Phasor	Dual Winding Single Phase
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Efficiency	99.00%
No Load Loss (in watts)	+/- 166W
Full Load Loss (in watts)	+/- 640W

Product drawings

50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v 2

Specifications

Single phase Pole Mounted transformer
Rated Capacity	High Voltage	Low Voltage	Connection Symbol	Standard	Short-circuit impedance	Efficiency
(kVA)	(v)	(v)	Connection Symbol	Standard	(%)	(%)
10	34500/19920V 13800/7957V 13200/7620V 12470/7200V or others	120-240V 240-480V 347V 600V	II0,II6	IEEE/ANSI/ DOE	1.5-4.5%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Accessories

50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v 3

Production process

50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v 4

50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v 5

50kva Single Phase Oil Immersed Pole Mounted Distribution Transformers 12470v To 277v 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
