Pole Mounted Transformer

25kva Single Phase Liquid Filled Pole Mounted Overhead Distribution Transformer 12470v To 480v

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

25kva Single Phase Liquid Filled Pole Mounted Overhead Distribution Transformer 12470v To 480v

Brand Name:	WINLEY
Model Number:	D-25/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single

Capacity:

25 KVA

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

277/480V

Insulation Rating:

Class E Insulation - 120°C, 248°F

Temperature Rise:

Cooling Class:

ONAN; Self-Cooled

Winding Material:

Copper

Supply Ability:

1000set/month

Highlight:

25kva Overhead Distribution Transformer

Pole Mounted Overhead Distribution Transformer

12470v Overhead Distribution Transformer

Product Description

25kva Single Phase Liquid Filled Pole Mounted Overhead Distribution Transformer 12470v To 480v

The pole-mounted transformers produced by WINLEY ELECTRIC have rated capacities ranging from 10 kVA to 333 kVA, meeting ANSI/IEEE C57, IEC60076 and other standards, and meeting or even exceeding DOE and CSA efficiency requirements.

structure

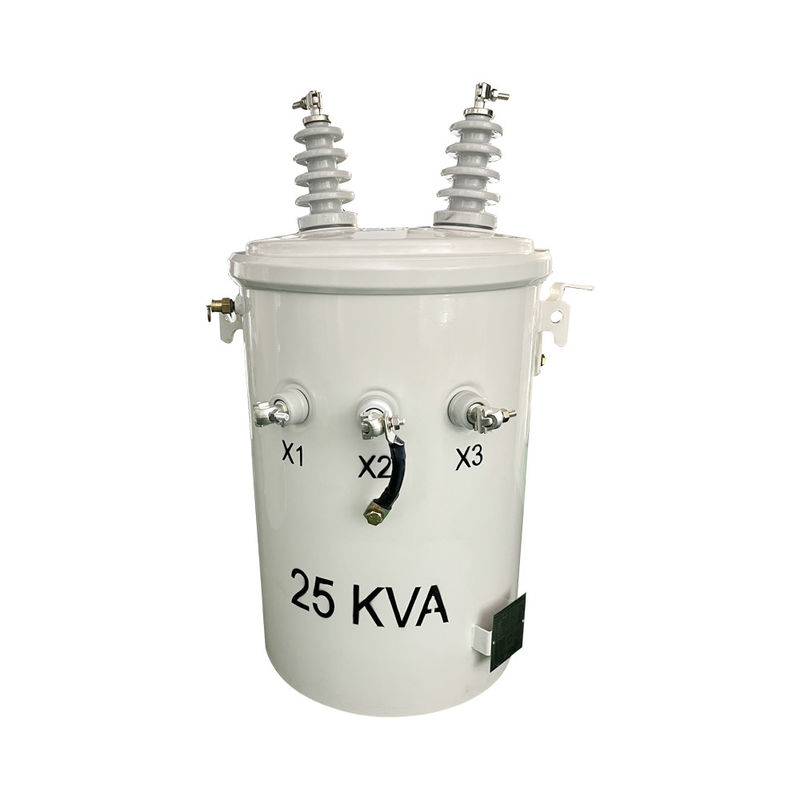

25kva Single Phase Liquid Filled Pole Mounted Overhead Distribution Transformer 12470v To 480v 0

Performance Characteristic

The single phase pole mounted transformer is a fully sealed cylindrical structure and is installed by pole-mounted suspension. It has the advantages of small size, strong overload capacity, high continuous operation reliability, and simple maintenance. The product is widely used in industrial and agricultural power grid transmission and distribution.

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Transformer Configuration	Liquid Filled Pole Mounted
Phase	Single Phase
Capacity	25 KVA
Primary Voltage	12470GrdY/7200
Secondary Voltage	277/480V
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Efficiency	98.90%
No Load Loss (in watts)	+/- 101W
Full Load Loss (in watts)	+/- 371W

Product drawings

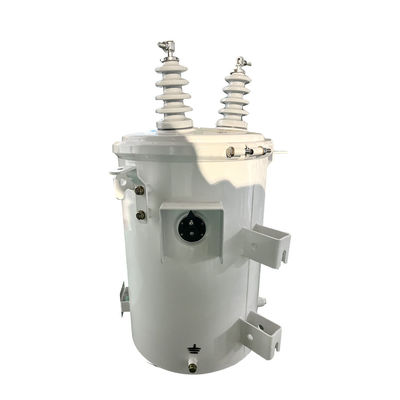

25kva Single Phase Liquid Filled Pole Mounted Overhead Distribution Transformer 12470v To 480v 1

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Accessories

25kva Single Phase Liquid Filled Pole Mounted Overhead Distribution Transformer 12470v To 480v 2

Production process

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
