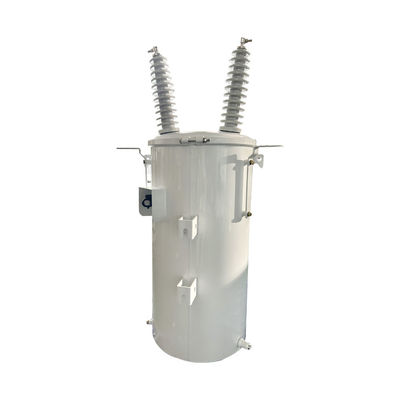

50kva Single Phase Pole Mount Distribution Transformer Oil Immersed 34500GrdY/19920 To 120/240V

Brand Name:	WINLEY
Model Number:	D-50/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Capacity:

50Kva

Cooling Method:

Frequency:

Primary Voltage:

34500GrdY/19920 Or Customized

Secondary Voltage:

120/240V

Winding Material:

Aluminum

Standard:

DOE/ANSI/IEEE

Supply Ability:

1000set/month

Highlight:

50kva Pole Mount Distribution Transformer

120/240V Pole Mount Distribution Transformer

Pole Mount Distribution Transformer

Product Description

50kva Single Phase Pole Mount Distribution Transformer Oil Immersed 34500GrdY/19920 to 120/240V

Primary Voltage Ratings :34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 or others
Secondary Voltage Ratings :120-240/240-480/347/600V or othersH.V.
TAP RANGE : ±2x2.5% or others

A single-phase transformer efficiently steps down AC voltage for home use while maintaining frequency. It features a magnetic iron core for magnetism and copper windings for electrical conductivity. Essential for safe power delivery! #ElectricalEngineering #Transformers

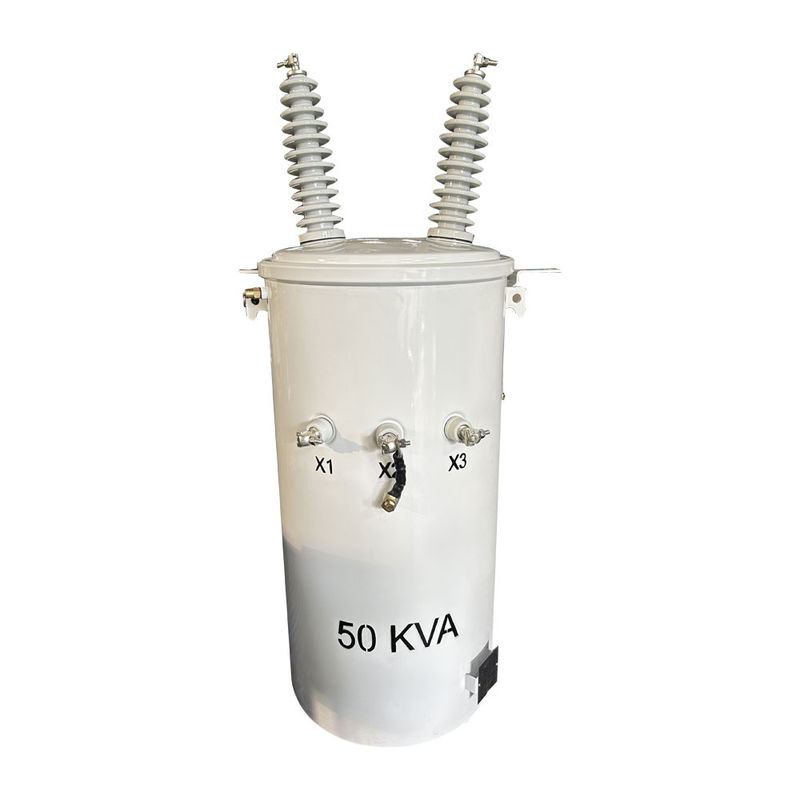

50kva Single Phase Pole Mount Distribution Transformer Oil Immersed 34500GrdY/19920 To 120/240V 0

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	50 KVA
Primary Voltage	34500GrdY/19920
Secondary Voltage	120/240V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Aluminum
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Efficiency	99.0%
Based on transformer operating at 50% of nameplate base kVA.
Load Losses Based on 85°C Reference Temp.
No Load Loss (in watts)	+/- 171W
Full Load Loss (in watts)	+/- 640W

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Design drawings

50kva Single Phase Pole Mount Distribution Transformer Oil Immersed 34500GrdY/19920 To 120/240V 1

Feature

Cost-effective design
High efficiency and low noise levels
Dual voltage capability
Coating meets or exceeds IEEE C57 standard
Excellent sealing for protection against environmental factors
Polymer-type low voltage bushings
Porcelain-type high voltage bushings
Convenient cover or sidemounted voltage bushings
Spade or clamp type terminals
Compatible with both mineral oil and biodegradable vegetable oil as insulating oil
Provision for surge arrester bracket, with brackets available if needed

Accessories

50kva Single Phase Pole Mount Distribution Transformer Oil Immersed 34500GrdY/19920 To 120/240V 2

Production process

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
