Pole Mounted Transformer

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v

Brand Name:	WINLEY
Model Number:	D-50/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single

Capacity:

50 KVA

Primary Voltage:

7200/12470GrdY

Secondary Voltage:

120/240V

Frequency:

60 Hz

Temperature Rise:

Cooling Class:

ONAN; Self-Cooled

Winding Material:

Copper

Supply Ability:

1000set/month

Highlight:

250Kva Single Phase power pole transformer

DOE Standards power pole transformer

22.8KV To 480V power pole transformer

Product Description

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v

single phase energy-efficient pole mounted distribution transformer, designed for robust performance and reliability, with careful consideration of environmental factors. This transformer is suitable for both indoor and outdoor applications, providing enhanced reliability and protection against critical equipment failures. With lower operating costs, reduced heat emissions, and a lower total cost of ownership, it’s the ideal choice for a wide range of applications and businesses.

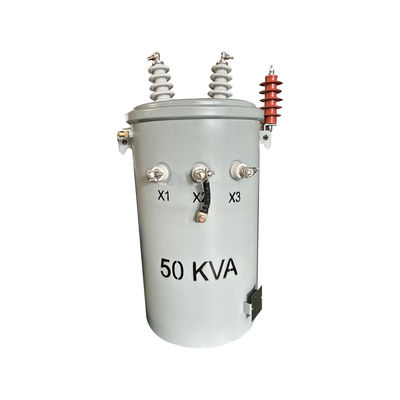

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v 0

Feature

Cost-effective design
High efficiency and low noise levels
Dual voltage capability
Coating meets or exceeds IEEE C57 standard
Excellent sealing for protection against environmental factors
Polymer-type low voltage bushings
Porcelain-type high voltage bushings
Convenient cover or sidemounted voltage bushings
Spade or clamp type terminals
Compatible with both mineral oil and biodegradable vegetable oil as insulating oil
Provision for surge arrester bracket, with brackets available if needed

structure

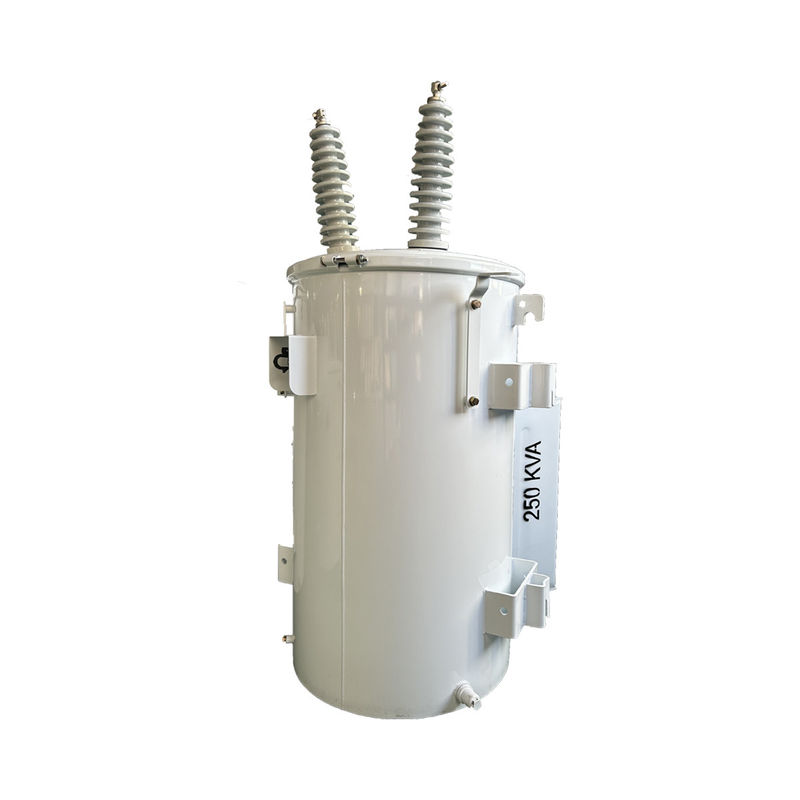

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v 1

Main data

Phase	Single Phase
Capacity	50 KVA
Primary Voltage	7200/12470GrdY Grounded Wye (2 Wire)
Primary BIL	95 kV
Secondary Voltage	120/240V (L-L-N)
Frequency	60 Hz
Temperature Rise	65°C
Forced Air (Fans)	None
Primary Insulation	Porcelain High Voltage Bushings - Dual Primary Bushings
Secondary Insulation	(3) Bushings
Insulation Fluid	Mineral Oil - Non PCB Fluid
Oil Level Marking	Internal
Cooling Class	ONAN
Pressure Relief Device	Automatic
Fill Valve	Included
Drain Valve w/ Sampler	-
Surge Arrestors	Lightning Arrestor on H1 Primary Terminal
Surge Arrestor Mounting Provision	Mounting Provisions for Installing Lightning Arrestor on H2 Primary Terminal
No Load Loss	125W
Full Load Loss	490W
Efficiency @ 100% Load	98.85%
Impedance (approx)	2.1%
Winding Material	Copper
Dimensions	22 x 25 x 44
Weight	601 lb
Ratings	Conforms to ANSI / IEEE Standard C57.12.20

Product drawings

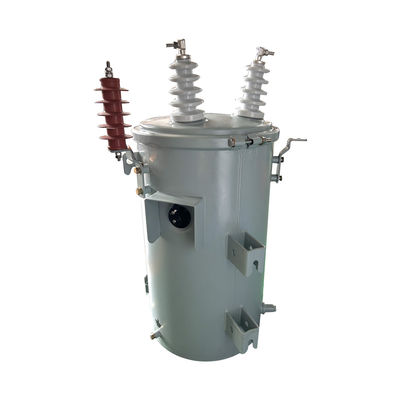

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v 2

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Accessories

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v 3

Production process

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v 4

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v 5

50kva Single Phase Power Pole Transformer Distribution 12470v To 120v 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
