Oil Type Transformer
>

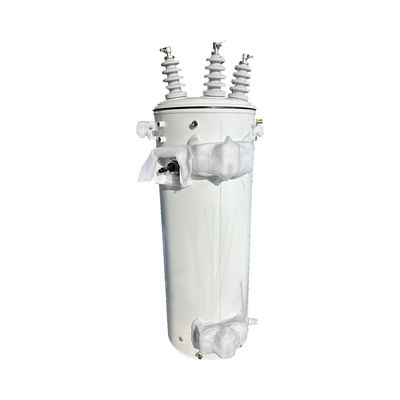

Three Phase Pole Mounted Transformer Oil Immersed  13800V to 480Y/277V 75KVA

Three Phase Pole Mounted Transformer Oil Immersed  13800V to 480Y/277V 75KVA

Brand Name: WINLEY
Model Number: S-75/13.8
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Phase:
Three Phase
Type:
Pole Mounted Transformer
Capacity:
75 KVA
Primary Voltage:
13800V
Secondary Voltage:
480Y/277V
Temperature Rise:
65°C
Efficiency Standard(s):
Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Cooling Class:
Class E Insulation - 120°C, 248°F
Supply Ability:
1000set/month
Highlight:

Three Phase Pole Mounted Transformer

,

13800V Pole Mounted Transformer

,

75KVA Pole Mounted Transformer

Product Description

Three Phase Pole Mounted Transformer Oil Immersed 13800V to 480Y/277V 75KVA





WINLEY Electric's three-phase pole-mounted round water tank is designed for areas where three-phase power is required but space is limited. It is simpler than a set of three single-phase transformers, and has lower installation and operating costs and higher safety.





Outline: Advantages of Three-Phase Overhead Transformers



I. Easier and Cleaner Installations A. Advantages over three single-phase units B. Streamlined installation process

II. Cost and Operational Benefits A. Reduced installation costs B. Lower operating costs C. Safer operation D. Minimized service disruptions E. Increased transformer life

III. Serving Large Motor Loads A. Capabilities of triplex designs B. Accommodating frequent motor starting

IV. Design and Performance Advantages A. Consistent with single-phase overhead transformers B. Shared manufacturing and performance benefits



Three Phase Pole Mounted Transformer Oil Immersed  13800V to 480Y/277V 75KVA 0



Main data



Transformer Type Overhead Distribution Transformer, Conventional Type
Phase Three Phase
Capacity 75 KVA
Primary Voltage 13800V
Primary Voltage Class 15 kV Class
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Tap Qty (2) FCAN Above, (2) FCBN Below
Tap % 2.5%
Impedance 2.70-5%
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Winding Material Copper
Ambient Temperature Rating 40°C
Dimensions* 25''-W x 32''-D x 64''-H
Total Weight (Liquid Filled)* 1393 lb
Complies with ANSI / IEEE #C57.12.00
Efficiency 99.00%
No Load Loss (in watts) +/- 247W
Full Load Loss (in watts) +/- 845W



Drawing



Three Phase Pole Mounted Transformer Oil Immersed  13800V to 480Y/277V 75KVA 1



Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
