Single Phase Overhead Distribution Transformer 34500GrdY/19920 To 120/240V Meets ANSI/IEEE Standards

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-125/35
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Single Capacity: 125 KVA
Primary Voltage: 34500GrdY/19920 Secondary Voltage: 120/240V
Frequency: 60 Hz Standard: Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material: Copper Efficiency: 99.10%
High Light:

Single Phase Overhead Distribution Transformer

,

34500GrdY/19920 Overhead Distribution Transformer

,

120/240V Overhead Distribution Transformer


Product Description

Single Phase Overhead Distribution Transformer 34500GrdY/19920 To 120/240V





The pole-mounted transformers produced by WINLEY ELECTRIC can meet the standards of IEEE/ANSI/DOE/CSA and IEC, and have been exported to North America, Central and South America and other markets in large quantities. The rated capacity of single-phase pole-mounted transformers ranges from 10 kVA to 333 kVA, and the rated capacity of three-phase pole-mounted transformers ranges from 30 kVA to 500kVA.





structure

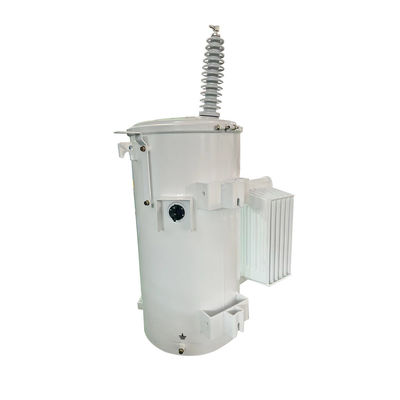

Single Phase Overhead Distribution Transformer 34500GrdY/19920 To 120/240V Meets ANSI/IEEE Standards 0



Main data



Transformer Configuration Liquid Filled Pole Mounted
Transformer Polarity Type Subtractive
Phase Single Phase
Capacity 125 KVA
Primary Voltage 34500GrdY/19920
Primary Voltage Class 35 kV Class
Primary Phasor Grounded Wye
Secondary Voltage 120/240V (L-N-L)
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 55 dBA
Dimensions* 43.31''-W x 35.04''-D x 51.18''-H
Total Weight (Liquid Filled)* 1542 lbs
Efficiency 99.10%
No Load Loss (in watts) +/- 455W
Full Load Loss (in watts) +/- 1,833W



Product drawings

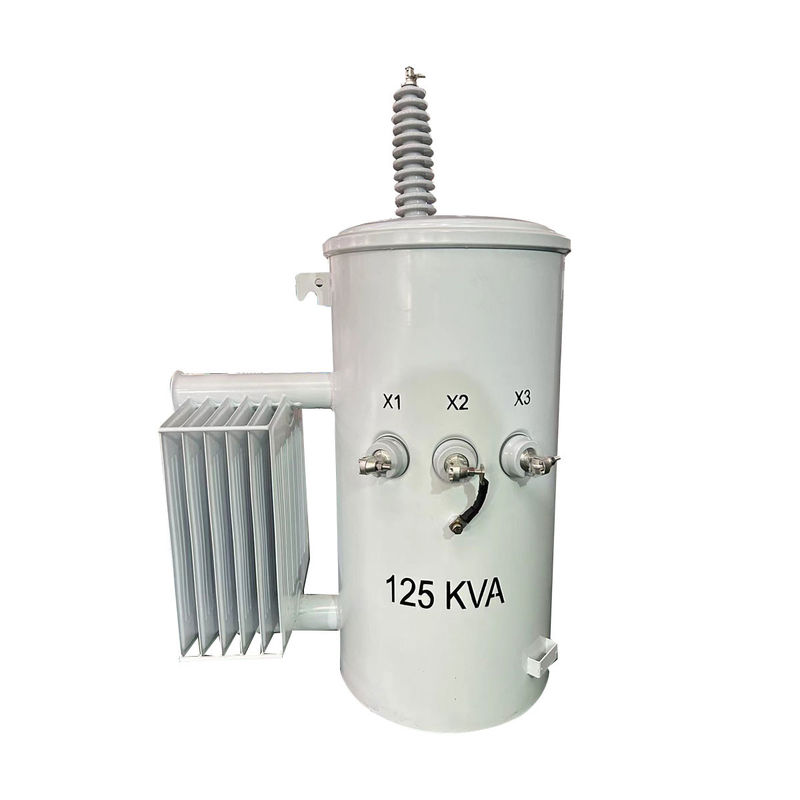

Single Phase Overhead Distribution Transformer 34500GrdY/19920 To 120/240V Meets ANSI/IEEE Standards 1



Specifications



10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500
110
220
230
400
480
II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43



Accessories



Single Phase Overhead Distribution Transformer 34500GrdY/19920 To 120/240V Meets ANSI/IEEE Standards 2



Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
