| Brand Name: | WINLEY |
| Model Number: | S-13 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

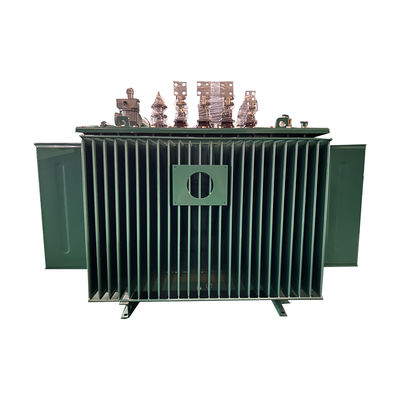

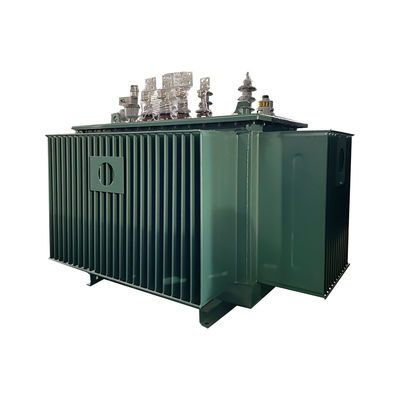

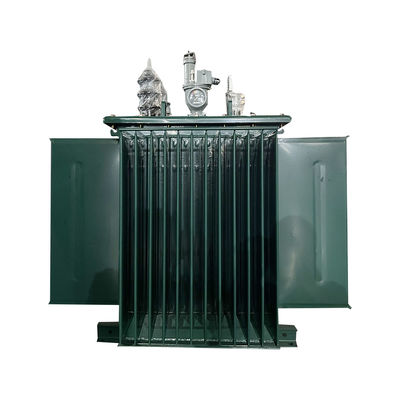

S13 500kva Three phase oil immersed power Distribution transformer 13.8Kv to 480v
Applicable Standards
structure
Our transformers guarantee dielectric strength to withstand impulse voltage thanks to high-technology design which ensures low capacitance between winding and the ground and proper coordination of insulating material and solves creepage problem. Directly Ordered Transformer in Stock/ 200kVA 13.8-0.48kV Oil Type Three Phases Step Up YNd11 Generator Transformer
| Description | Unit | Three Phase, 50Hz/60Hz, Power Distribution transformer |
| Catalog No. | NA | 500kVA/13.8-0.48kV |
| Insulation Type | NA | #25 Mineral Oil,PCB Free |
| Cooling Method | NA | ONAN |
| Coil Configuration | NA | 2 Windings |
| Rating | kVA | 200 |
| Vector Group | NA | YNd11 |
| Tapping Range | % | ±2×2.5 |
| Primary Voltage | kV | 13.8 |
| Secondary Voltage | V | 480 |
| No-load loss | W | 436 |
| Load-loss(75℃) | W | 2754 |
| Impedance | % | 4.0 |
| Short circuit current | % | 1.41 |
| Primary Insulation Level | kV | LI95 AC40 |
| Secondary Insulation Level | kV | AC5 |
| Temperature rise | ||
| Oil | ℃ | 60℃ |
| Windings | ℃ | 65℃ |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
