Pole Mounted Transformer

10kva Single Phase Pole Mounted Transformer Oil Immersed Type 4160V To 240V

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

10kva Single Phase Pole Mounted Transformer Oil Immersed Type 4160V To 240V

Brand Name:	WINLEY
Model Number:	D-10/5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mounted Transformer

Capacity:

10KVA Or Customized

Phase:

Single Phase

Temperature Rise:

Primary Voltage:

4160V

Secondary Voltage:

120/240V

Insulation Rating:

Winding Material:

Copper

Supply Ability:

1000set/month

Highlight:

Oil Immersed Pole Mounted Transformer

240V Pole Mounted Transformer

10kva Pole Mounted Transformer

Product Description

10kva Single Phase Pole Mounted Transformer Oil Immersed Type 4160V To 240V

The transformer is cylinder sealing structure. Each one is fixed with grounding devices, hooks, sup porting lugs which conforms to ANSI standard, and one or two high voltage bushing on the cover, low voltage bushing on the wall of the tank and eyebolt,connecting terminals. The tap changer should be adjusted basing on the instruction after the power off.

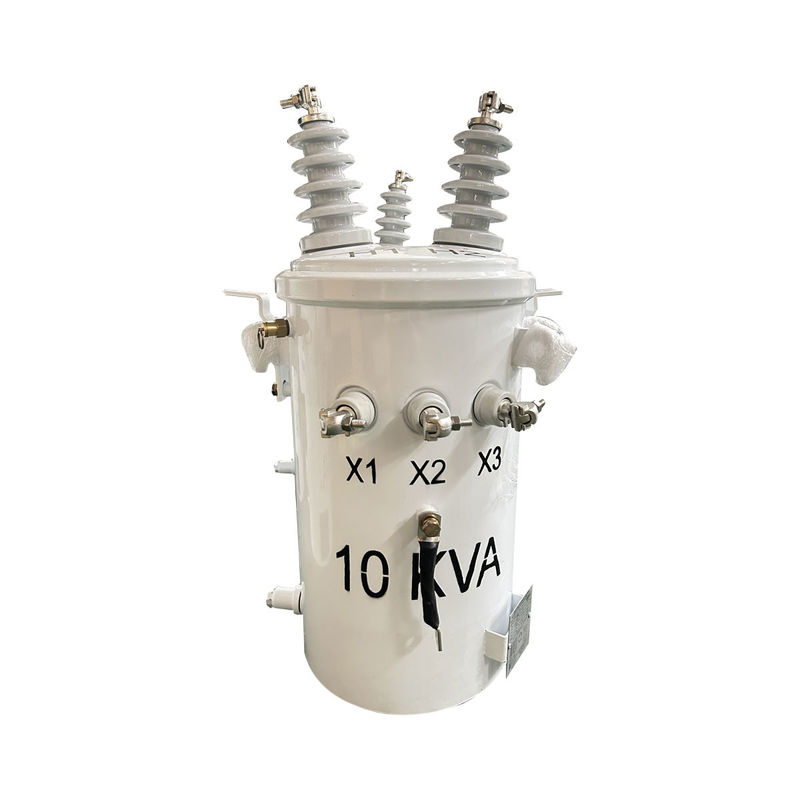

10kva Single Phase Pole Mounted Transformer Oil Immersed Type 4160V To 240V 0

Performance Characteristic

1. The products are widely used in power transmission and distribution of industrial and agricultural power networks.
2. Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure, so that its magnetic route is short, losses and noise level is low.
3. Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit.
4. The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance.

Main data

Phase	Single Phase
Capacity	10 KVA
Primary Voltage	4160GrdY/2400
Primary BIL	60 kV
Secondary Voltage	120/240V (L-N-L)
Secondary Voltage Class	1.2 kV Class
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	48 dBA

Drawing

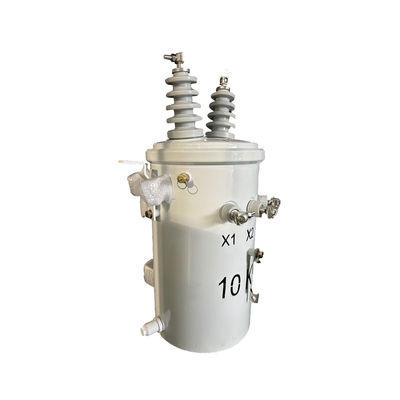

10kva Single Phase Pole Mounted Transformer Oil Immersed Type 4160V To 240V 1

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Accessories

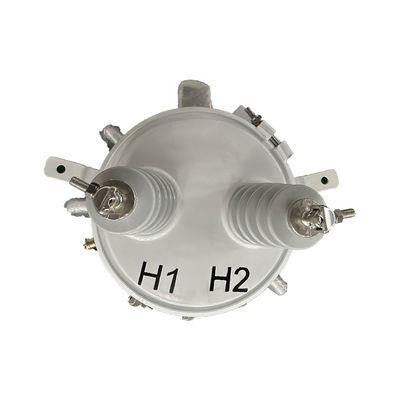

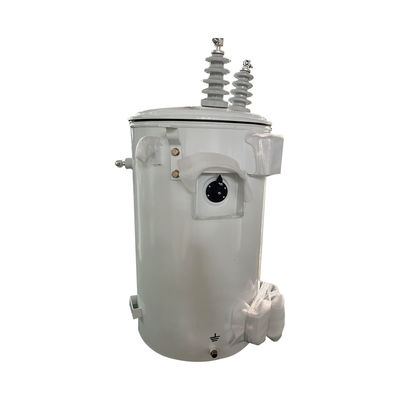

10kva Single Phase Pole Mounted Transformer Oil Immersed Type 4160V To 240V 2

Production process

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

pole mounted distribution transformer

single phase pole mounted transformer

Oil Immersed Distribution Transformer
