15kva Single Phase Overhead Distribution Transformer Oil Immersed 13200GrdY/7620

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-15/13.2
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Transformer Type: Overhead Distribution Transformer, Conventional Type Capacity: 15 KVA Or Customized
Cooling Method: ONAN; Self-Cooled Temperature Rise: 65°C
Primary Voltage: 13200GrdY/7620 Secondary Voltage: 120/240V (L-N-L)
Phase: Single Phase Winding Material: Copper
High Light:

13200GrdY/7620 Overhead Distribution Transformer

,

15kva Overhead Distribution Transformer

,

Oil Immersed Overhead Distribution Transformer


Product Description

15kva Single Phase Overhead Distribution Transformer Oil Immersed 13200GrdY/7620





WINLEY‘s single-phase fully complies with or even exceeds international standards such as ANSI/IEEE, CSA, and DOE. Single-phase has ul/cul, CSA, IEEE and other certificates. It has been exported to North America, Central and South America and other markets in large quantities.



product structure

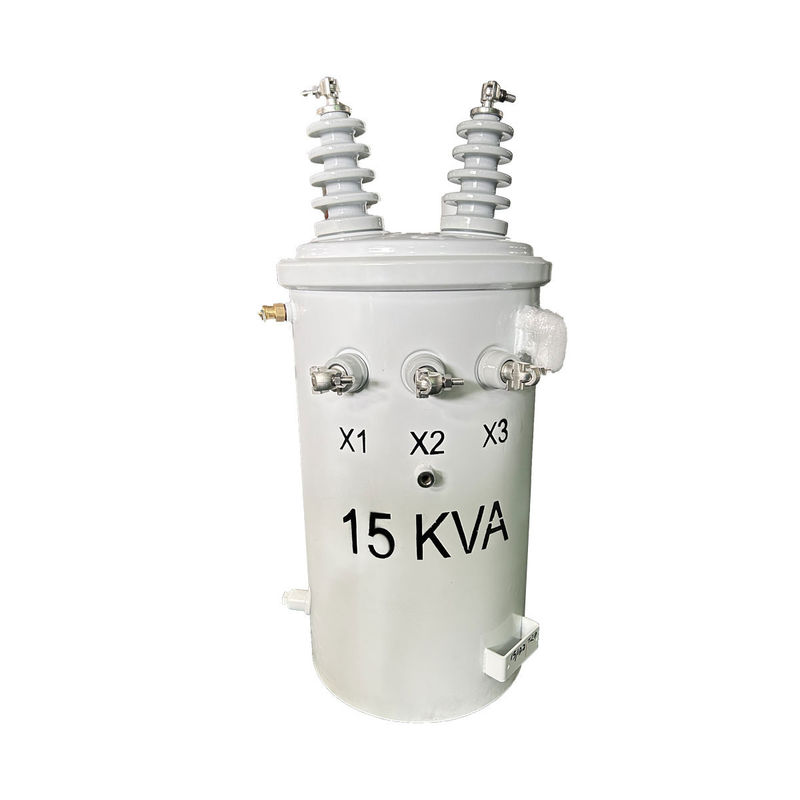

15kva Single Phase Overhead Distribution Transformer Oil Immersed 13200GrdY/7620 0



Standard Feature



Quality System ISO 9001 certified
Meet DOE Energy Efficiency Standard or exceeds ANSI/IEEE and CSA standards
Lifting lugs
Arrester mounting pads
Cover-mounted high votage porcelain
Bushing(s) with eyebolt terminal
Low voltage bushings wtih eyebolt terminals
Low voltage enutral grounding strap(not shown)(10-50kVA class B-2 and B-3 only)
ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
Polyester insulated cover
Self-venting and resealing cover assembly
Centerline core/coil assembly support brackets
Low voltage leads
Oil fill plug with cover ground strap
Tank ground pad
The fllowing additional features are all standard on self protected type CSP units only
Primary protective link (mounted in high voltage bushing)
Surge arrester
Secondary circuit breaker
Secondary breaker operating handle with emergency overload reset and overload signal light



Main data



Transformer Type Overhead Distribution Transformer, Conventional Type
Phase Single Phase
Capacity 15 KVA
Primary Voltage 13200GrdY/7620
Secondary Voltage 120/240V (L-N-L)
Secondary Phasor Dual Winding Single Phase
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 48 dBA
Core Material Grain Oriented Steel
Tank Material Coated Steel
Dimensions* 19.69''-W x 22.83''-D x 38.19''-H
Ratings
Meets/Exceeds DOE 2016 Efficiency Ratings
Complies with ANSI / IEEE #C57.12.00
Efficiency 98.50%
No Load Loss (in watts) +/- 65W
Full Load Loss (in watts) +/- 254W
Total Load Loss (in watts) +/- 319W



Product drawings

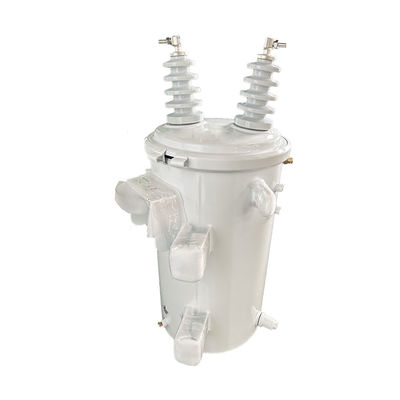

15kva Single Phase Overhead Distribution Transformer Oil Immersed 13200GrdY/7620 1



Specifications



10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500
110
220
230
400
480
II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Accessories

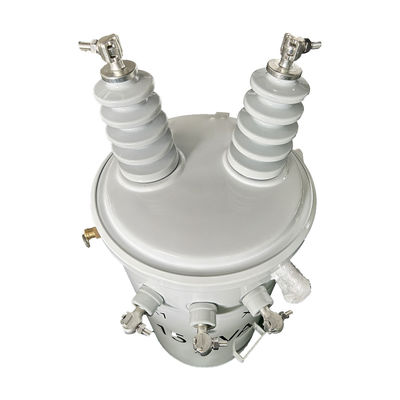

15kva Single Phase Overhead Distribution Transformer Oil Immersed 13200GrdY/7620 2



Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
