Three Phase Pole Mounted Distribution Transformer 3P Oil Immersed 12000V 75KVA

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-45/12
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Type: Overhead Distribution Transformer
Capacity: 45 KVA Primary Voltage: 12000V
Secondary Voltage: 208Y/120 Frequency: 60Hz
Temperature Rise: 65°C Windings Material: Copper
Efficiency Standard(s): Meets DOE 2016 Standards, Meets ANSI/IEEE Standards Cooling Class: ONAN; Self-Cooled
High Light:

Three Phase Pole Mounted Distribution Transformer

,

75KVA Pole Mounted Distribution Transformer

,

12000V Pole Mounted Distribution Transformer


Product Description

75KVA Three Phase Power Pole Mounted Distribution Transformer Oil Immersed 12000V​





Advantages



• Easier, cleaner installations are provided by three phase
overhead transformers compared to three single-phase units.
• Reduced installation costs, lower operating costs, safer
operation, minimized service disruptions, and increased
transformer life provided by an optional CSP protection
package. (Max. 150 kVA)
• The capability to serve large motor loads requiring frequent
motor starting is provided by triplex designs.
• The same design, manufacturing and performance
advantages that are provided on Power Partners single
phase overhead distribution transformers are incorporated
into the triplex design.

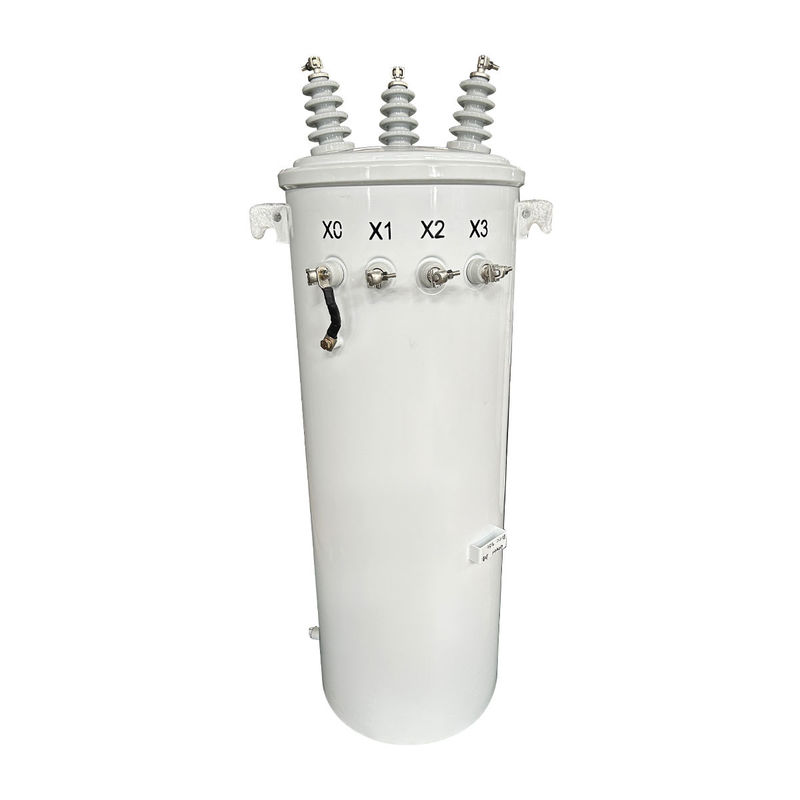

Three Phase Pole Mounted Distribution Transformer 3P Oil Immersed 12000V 75KVA 0



Main data



Transformer Type Overhead Distribution Transformer, Conventional Type
Transformer Configuration Liquid Filled Pole Mounted
Transformer Polarity Type Subtractive
Phase Three Phase
Capacity 75 KVA
Primary Voltage 12000V
Secondary Voltage 208Y/120 (L-N-L)
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Terminals Tin Plated Primary and Secondary - Accepts Copper or Aluminum Connections
Grounding Provisions (1) Lug w/ Grounding Strap, Tank Grounding Lug
Transformer Protection N/A
Load Break Switch N/A
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Insulation Fluid Mineral Oil - Non PCB Fluid
Fluid Capacity* 60 Gallons
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 51 dBA
Core Material Grain Oriented Steel
Tank Material Coated Steel
Dimensions* 25''-W x 32''-D x 64''-H
Meets/Exceeds DOE 2016 Efficiency Ratings
Complies with ANSI / IEEE #C57.12.00
Efficiency 99.00%
No Load Loss (in watts) +/- 247W
Full Load Loss (in watts) +/- 845W

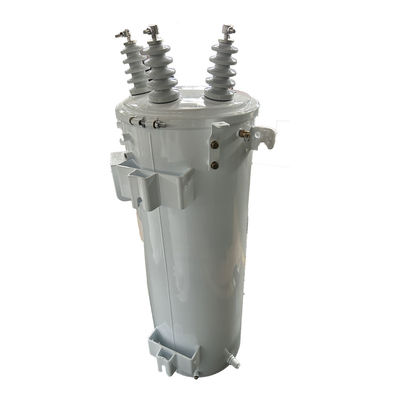

Drawing

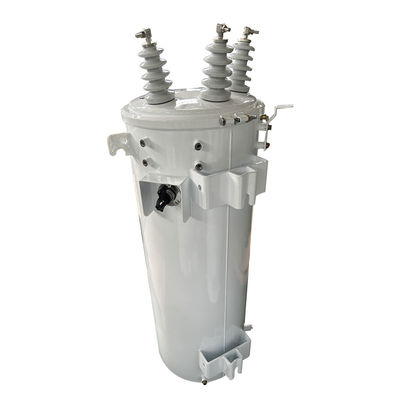

Three Phase Pole Mounted Distribution Transformer 3P Oil Immersed 12000V 75KVA 1



Standard Features



1. Wound core with step-lap joints for increased efficiency and
lower noise levels.
2. Progressively wound coils with adhesive resins on insulating
paper or conductors for increased shortcircuit strength,
efficiency and thermal strength.
3. CSP protection package available as an option for increased
protection against surge currents, short circuits and overloads:
• Primary protective links
• Surge arresters
• Secondary circuit breaker
• Secondary breaker operating handle with emergency
overload reset and overload signal light.
4. Three point core-coil bracing for increased mechanical strength.
5. Self-venting and resealing cover that eliminates the need for
an auxiliary pressure relief device and offers increased safety
through higher tank withstand.
6. The paint finish process applies a durable, corrosion resistant
finish to the product. The finish meets or exceeds all the
performance requirements of ANSI C57.12.28. The multi-step
process includes an epoxy primer uniformly applied by cationic
electrodeposition and a urethane top coat.
7. Cover has 13 mils minimum of polyester coating providing
15 kV dielectric insulation of tank ground parts from live parts
and increasing resistance to corrosion. The cover is sloped 15
preventing water from collecting, thereby reducing the
chances of corrosion and leaking.
8. Tank bottom rim is three layers thick for increased durability
and resistance to shipping and handling damage.



Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
