| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-10/12.47 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Transformer Type: | Overhead Distribution Transformer | Capacity: | 10 KVA Or Customized |
|---|---|---|---|
| Cooling Method: | ONAN; Self-Cooled | Temperature Rise: | 65° |
| Primary Voltage: | 12470V | Secondary Voltage: | 240/120 |
| Core Material: | Silicon Steel | Efficiency Standard(s): | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| High Light: | 10Kva Pole Mounted Distribution Transformer,12470V 240V Mounted Distribution Transformer,10Kva Single Phase Distribution Transformer |
||

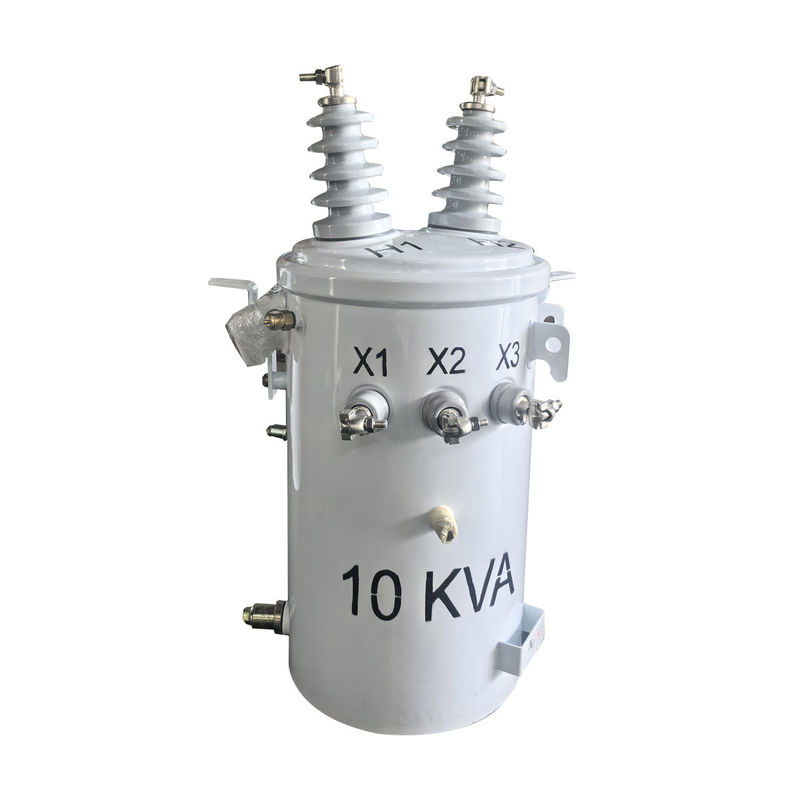

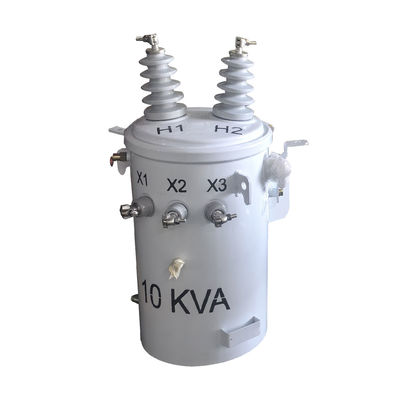

10Kva Single Phase Pole Mounted Distribution Transformer 12470V to 240V DOE 2016 CSA ANSI/IEEE
The transformer is cylinder sealing structure. Each one is fixed with grounding devices, hooks, sup porting lugs and one or two high voltage bushing on the cover, low voltage bushing on the wall of the tank and eyebolt,connecting terminals. The tap changer should be adjusted basing on the instruction after the power off.
Product scope
Single-phase up to 167 kVA
Three-phase up to 315 kVA
Primary voltage up to 36 kV
Secondary voltages up to 480 V
Cooling type: ONAN
Available fluids: mineral oil and ester fluids
Main data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Phase | Single Phase |
| Capacity | 10 KVA |
| Primary Voltage | 12470 |
| Primary Voltage Class | 25 kV Class |
| Secondary Voltage | 120/240V (L-N-L) |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 48 dBA |
| Tank Material | 304 Stainless Steel |
| Ratings | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Efficiency | 98.30% |
| No Load Loss (in watts) | +/- 47W |
| Full Load Loss (in watts) | +/- 156W |
| Total Load Loss (in watts) | +/- 203W |
Drawing
Specifications
| 10kva-500kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
