| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-25/13.8 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Transformer Type: | Overhead Distribution Transformer, Conventional Type | Capacity: | 25 KVA Or Customized |
|---|---|---|---|
| Phase: | Single Phase | Temperature Rise: | 65°C |
| Primary Voltage: | 13800V | Secondary Voltage: | 240/480V |
| Frequency: | 60 HZ | Winding Material: | Copper |
| High Light: | 13.8KV oil filled distribution transformers,oil filled pole mounted distribution transformers,25kva pole mounted distribution transformers |
||

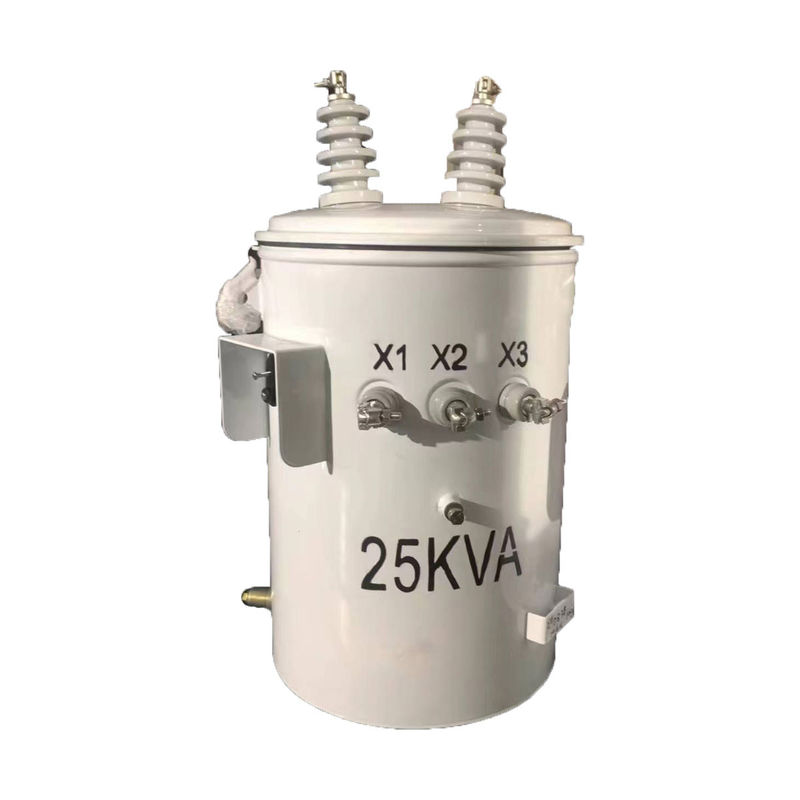

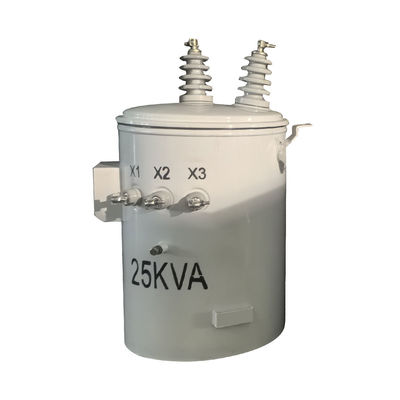

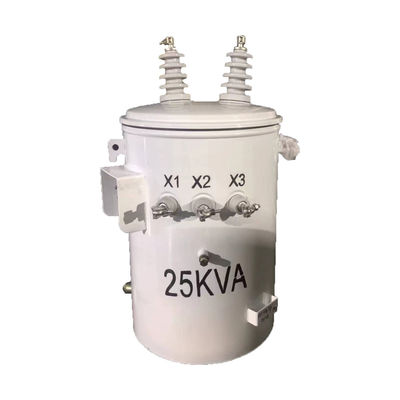

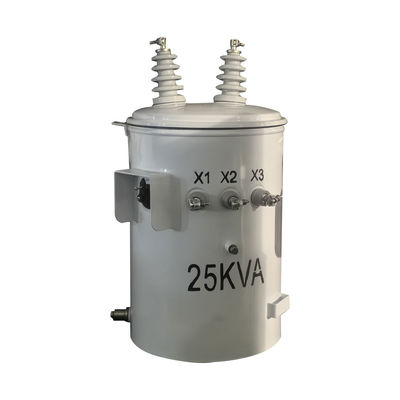

25kva single-phase oil-filled pole-mounted distribution transformers 13.8KV 34.5KV To 240V
WINLEY’s single-phase, oil-filled, pole-mounted distribution transformers are designed for servicing residential overhead distribution loads. They are also suitable for light commercial loads, industrial lighting and diversified power applications. These transformers are designed for the application conditions normally encountered on electric utility power distribution systems. Types CSP, CP, SP and S are all available. ISO 9001: 2008 Certified
Structural Features
1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.
Main data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Transformer Configuration | Liquid Filled Pole Mounted |
| Phase | Single Phase |
| Capacity | 25 KVA |
| Primary Voltage | 13800V |
| Secondary Voltage | 240/480V (L-N-L) |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| Winding Material | copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 48 dBA |
| Total Load Loss (in watts) | +/- 481W |
Drawing
Specifications
| 10kva-500kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
