| Brand Name: | WINLEY |
| Model Number: | S-112/13.8 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

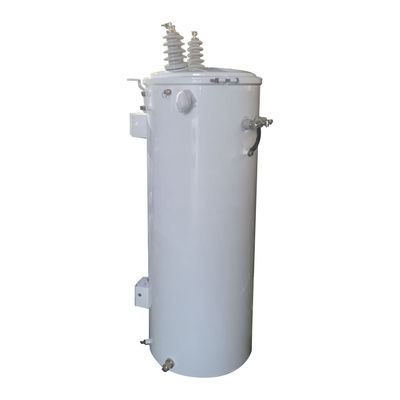

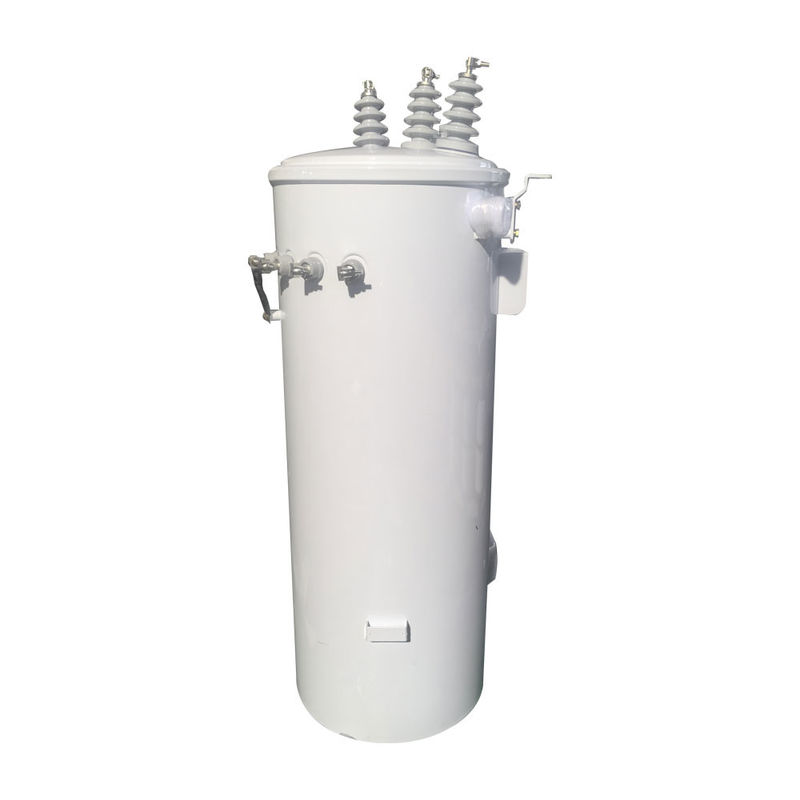

112.5Kva Three Phase Pole Mounted Overhead Distribution Transformer Oil Immersed 13.8KV 15 kva 25KVA 50kva 75kva 20KV 13200V 7620V to 240V
WINLEY’s Three Phase Pole Mounted Round Tank is designed for service in areas where three phase power is needed, but space is limited. It provides a cleaner looking service with lower installation cost than a bank of three single phase transformers. Triplex core/coil is the choice for serving electric motor loads especially with frequent motor starts.
Standard Features
Meets or exceeds current IEEE, NEMA standards.
Triplex core/coil design.
Wet process high voltage bushings.
Molded polymer low voltage bushings.
Tin plated bronze terminals suitable for copper or aluminum connection.
Two tank grounding provisions.
Lightning arrester mounting provisions.
1/2” drain plug.
Automatic pressure relief device.
Mineral oil.
Mild steel tank and bolted cover.
Laser engraved nameplate.
Main data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Transformer Configuration | Liquid Filled Pole Mounted |
| Transformer Polarity Type | Subtractive |
| Phase | Three Phase |
| Capacity | 112.5 KVA |
| Primary Voltage | 13800GrdY/7968 |
| Secondary Voltage | 480Y/277 (L-N-L) |
| Secondary Voltage Class | 1.2 kV Class |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Tap Changer | 5-Position Tap Changer w/ External Operating Handle |
| Tap Changer Switch Location | Middle of Tank Body, Left of Mounting Provisions |
| Impedance | 2.70-5% |
| Primary Connection Type | Live Bushing Lug |
| Primary Termination | Porcelain High Voltage Bushing |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Core Material | Grain Oriented Steel |
| Tank Material | Coated Steel |
| Dimensions* | 30.71''-W x 31.89''-D x 47.24''-H |
| Total Weight (Liquid Filled)* | 968 lb |
| Ratings | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Efficiency | 99.10% |
| No Load Loss (in watts) | +/- 227W |
| Full Load Loss (in watts) | +/- 815W |
Specifications
| KVA | primary range voltages | secondary voltages |
| 30 | 4160 Grdy/2400 to 24940Grdy/14400 |
208y/120 |
| 45 | 480y/277 | |
| 75 | 240 | |
| 112.5 | 480 | |
| 150 | 240△120mid-tap |
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
