Oil Type Transformer
>

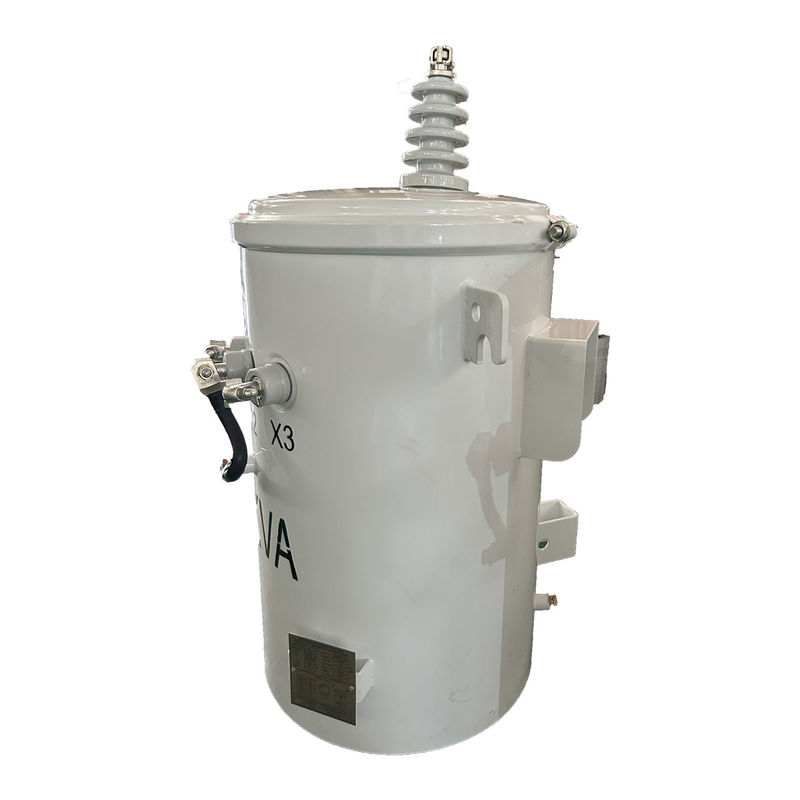

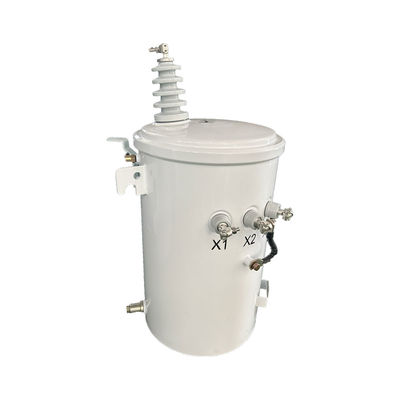

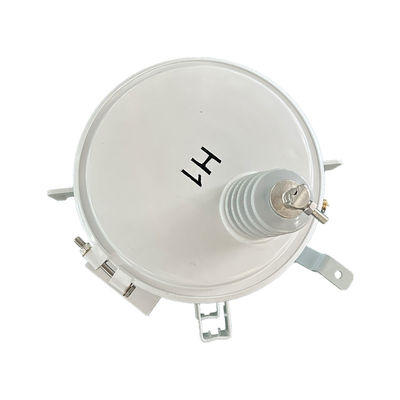

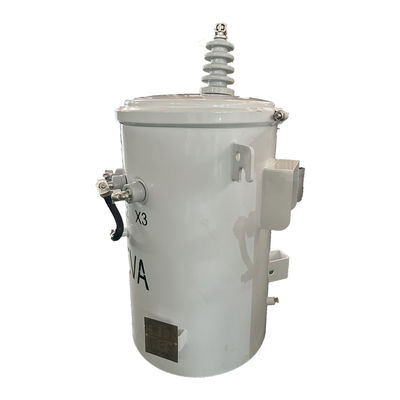

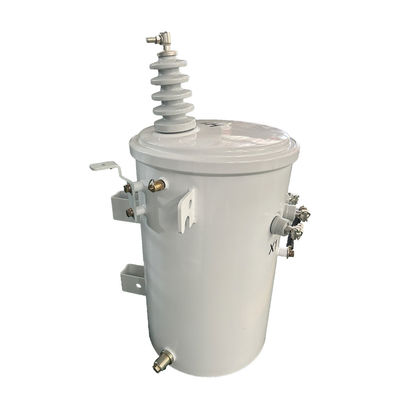

Single Phase Pole Mounted Transformer Electrical 25Kva ANSI IEEE Standard 12.47KV

Single Phase Pole Mounted Transformer Electrical 25Kva ANSI IEEE Standard 12.47KV

Brand Name: WINLEY
Model Number: D-25/12.47
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Transformer Type:
Pole Mounted
Capacity:
25 KVA Or Customized
Cooling Method:
ONAN; Self-Cooled
Sound Level:
50 DBA
Primary Voltage:
7200/12470Y
Secondary Voltage:
240/120
Core Material:
Silicon Steel
Winding Material:
Copper
Supply Ability:
1000set/month
Highlight:

IEEE Standard Pole Mounted Transformer

,

Electrical Pole Mounted Transformer 25Kva

,

Single Phase Electrical Transformer 12.47KV

Product Description

Single phase pole mounted transformer electrical 25Kva ANSI IEEE Standard 12.47KV





The transformer is cylinder sealing structure. Each one is fixed with grounding devices, hooks, sup porting lugs and one or two high voltage bushing on the cover, low voltage bushing on the wall of the tank and eyebolt,connecting terminals. The tap changer should be adjusted basing on the instruction after the power off.

Single Phase Pole Mounted Transformer Electrical 25Kva ANSI IEEE Standard 12.47KV 0



Standard Feature



1. High voltage bushing
The main material of high voltage bushing is porcelain and its main role is to connect high voltage winding and external high voltage lines, insulation protection, protection against external intrusion, heat conduction and heat dissipation, etc., to ensure the normal operation and safety of the transformer.
2. Low voltage bushing
There are two types of low voltage bushing as spade type and clip type.
3. Oil fill valve
The role of the oil filling valve on the single phase pole mounted transformer is to fill the insulation oil into the tank.
4. Oil drain valve with sampler
The oil drain valve and sampler on the single phase pole mounted transformer are used to discharge air and moisture, remove sediment and impurities, ensure the quality and performance of the oil inside the transformer, and ensure the safe and stable operation of the transformer. Meanwhile, we can collect oil samples for analysis and testing.
5. Pressure relief valve
The pressure relief valve on the single phase pole mounted transformer is mainly used to protect the safe operation of the transformer, maintain normal working conditions, and adjust the gas pressure inside the transformer to ensure its stability and reliability.
6. Lighting arrester
The lighting arrester keeps the transformer safe from power surges caused by lightning, switching, and other HV sources. It shunts high voltage surges by grounding to avoid the direct impact of the transformer itself.
7. Internal current limiting fusing
The fuse is used to limit the transformer winding from being damaged when there are overload currents.
8. Circuit breaker
One secondary circuit breaker is above the winding inside the tank and here are the operating handle, overload reset, and signal light. It has the function of thermal protection, low oil lever protection, and allowing a percentage of power to go through the breaker to restore service when it trips.



Main data



ITEM UNIT SPECIFICATION
Type ~ POLE MOUNTED
Rated capacity kVA 25
No. of Phase ~ Single Phase
Primary voltage V 7200/12470Y
Secondary voltage V 240/120
Vector group ~ Ii0
Tapping type ~ off circuit tapping
Tapping range % ±2*2.5% (5taps)
Cooling method ~ ONAN
Rated frequency Hz 60
Insulation class ~ A
Temperature rise K 65
Off-load loss W 80
On-load loss (75℃) W 410
Impedance % 2
Winding material ~ copper
Core material ~ silicon steel
Insulation Fluids ~ Mineral oil
Housing material ~ coated steel
Service condition ~ outdoor
Sea level m ANSI
Standard ~ ≤1000



Specifications



10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500
110
220
230
400
480
II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Accessories



Single Phase Pole Mounted Transformer Electrical 25Kva ANSI IEEE Standard 12.47KV 1



Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
