Single Phase Pole Mounted Distribution Transformer 50kva Oil Immersed

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-75/35
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Model Number: S11-M-75/13.8 Capacity: 75 KVA
Cooling Method: ONAN/KNAN Sound Level: 50 DBA
Input Voltage: 12.47/13.2/13.8/14.4/34.5kv Secondary Voltage: 277/480V
Temperature Rise: 65°C Winding Material: Copper
High Light:

Pole Mounted Distribution Transformer 50kva

,

Single Phase Distribution Transformer 50kva

,

Pole Mounted Oil Immersed Transformer


Product Description

Single Phase Pole Mounted Distribution Transformer 50kva Oil-Immersed

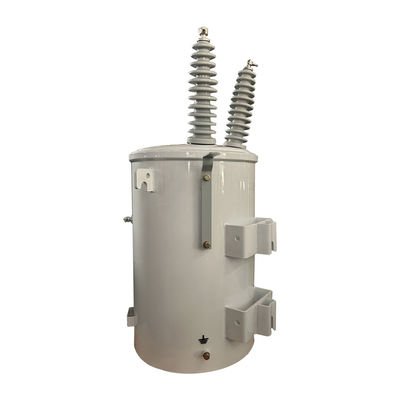

Single Phase Pole Mounted Distribution Transformer 50kva Oil Immersed 0




Summarization



Single-phase transformers have great advantages as distribution transformers. The characte ristics of the transformer are that it adopts the hanging installation method on the column, the volume is small,the capital construction investment is small, and the reduction of the low-voltage power supply radius can reduce the loss of the low-voltage line by more than 60%. The transformer adopts a fully sealed structure, with strong overload capacity and high reliability in continuous operation. Simple maintenance and long service life.

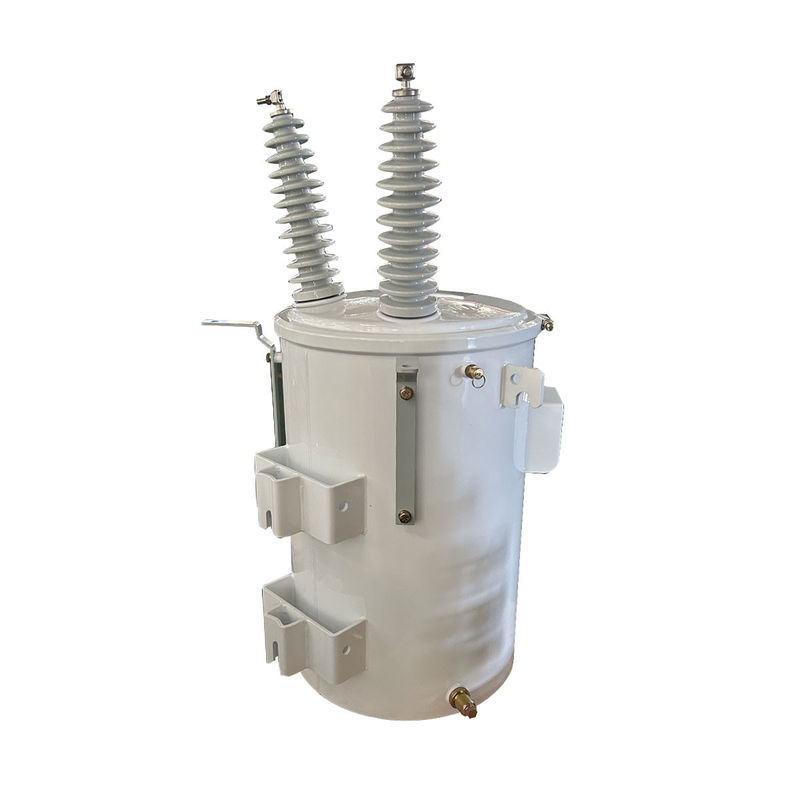

Single Phase Pole Mounted Distribution Transformer 50kva Oil Immersed 1



Specifications



10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500
110
220
230
400
480
II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Drawing



Single Phase Pole Mounted Distribution Transformer 50kva Oil Immersed 2



Accessories



Single Phase Pole Mounted Distribution Transformer 50kva Oil Immersed 3





Production images



Single Phase Pole Mounted Distribution Transformer 50kva Oil Immersed 4



Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
