| Brand Name: | WINLEY |
| Model Number: | D-50/15 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

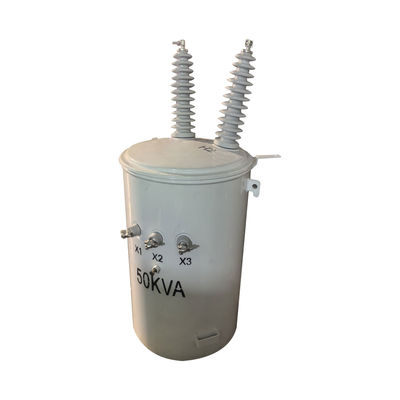

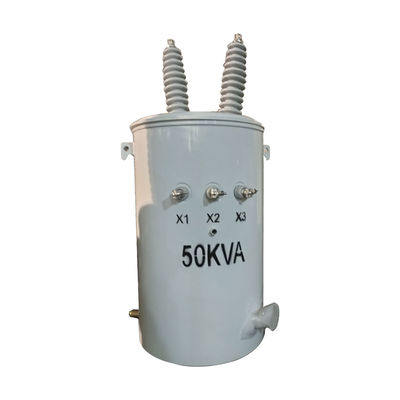

12.4kv 240v 50kva Oil Immersed Distribution Transformer Single Phase Pole Mounted Transformer
Description
In the distribution network with decentralized power supply, single-phase transformer has significant advantages as a distribution transformer. It can reduce the length of low-voltage distribution lines, reduce line losses and improve power supply quality. It adopts a high-efficiency energy-saving wound iron core structure design. The transformer is characterized by adopting pole mounting type suspension installation method, small volume, small infrastructure construction investment, reduction of low-voltage power supply radius and can reduce low-voltage line losses by more than 60%. The transformer adopts a fully sealed structure with strong overload capacity, high reliability in continuous operation, simple maintenance and long service life.
Main data
| 100 kVA Single Phase Pole Mounted Transformer Specifications | |||
| Energy efficiency | CSA C802.1 | Polarity | Additive |
| Std | CSA C2.1 | HV/LV Winding | Aluminium |
| Power rating | 100 kVA | No load loss | 208w |
| HV Voltage | 12.47kV Delta | On load loss | 753w |
| LV Voltage | 240/120 | Frequency | 60Hz |
| HV BIL | 125kV | Vectorgroup | Ii6 |
| LV BIL | 30kV | Color | Grey |
| Length | 730mm | Tank & Accesories | 435kg |
| Width | 890mm | Oil weight | 165kg |
| Height | 1110mm | Total weight | 675kg |
| Impedance | 2.93% | Cooling Method | ONAN |
Specifications
| 10kva-500kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||
Design drawings
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
