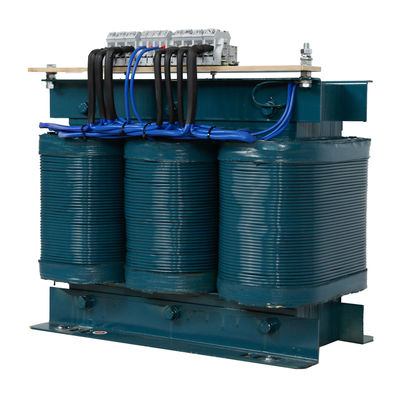

Power Dry Transformer 150kv Three Phase 380v To 220v Step Down Transformer
Main data
| Product Name | Three Phase Transformer |
| Product Model | SG-150KVA |
| Winding Material | Enameled copper wire / enameled aluminum wire |
| Capacity | 150KVA |
| Input Voltage | Customized |
| Output Voltage | Customized |
| Frequency | 50/60Hz |
| Insulation Level | F/H |
| Pressure-tight Test | Primary to secondary2.5KV/min; |
| Primary to safety ground2.5KV/min; | |
| Secondary to safety ground1.5KV/min | |
| Insulation Resistance | Primary to secondary2500V>100megohm; |
| Primary to safety ground2500V>100megohm; | |
| Secondary to safety ground1500V>100megohm | |
| Induction Withstand Voltage Test | 125Hz/800V/min |
| Ground Resistance | 25A＜80milliohm |
| Cooling Method | Natural or air cooling |
| Transformation Ratio | <3% |
| Air Carrying Current | <6% |
| Impedance Voltage | about 6% |
| Efficiency | ≥98 |
| Operating Temperature | -25℃~40℃ (40℃ ,93% RH,56days) |
| Storage Temperature | -25℃~100℃ (40℃ ,93% RH,56days) |
| Certificate | CE,ISO |
Advantages of Three Phase Transformer
1.Efficient
High magnetic permeability core and pure copper coilmake the transformer more efficient
2.Durable
High quality materials and aood heat dissipation makethe transformer more durable
3.Quiet
Silicon steel sheet and windings are set seamlesslywhich makes the transformer quiet whenit is working
Specification
| Model (kva) |
Primary Voltage | Secondary Voltage | Coupling group tab | Shape dimension | Mounting dimension | K*J | The box dimension | |||||
| Bmax | Dmax±5 | Emax | A | C±5 | Bmax | Dmax±5 | Emax | |||||
| SG-10KVA | 660 400 380 200 |
380 220 110 36 |
Yyn0 Y/d D/y D/d |
360 | 180 | 305 | 215 | 140 | 10*20 | 450 | 360 | 480 |
| SG-15KVA | 360 | 200 | 335 | 215 | 155 | 10*20 | 450 | 360 | 480 | |||
| SG-20KVA | 420 | 210 | 350 | 250 | 170 | 10*20 | 490 | 400 | 540 | |||
| SG-30KVA | 420 | 230 | 380 | 250 | 190 | 10*20 | 490 | 400 | 540 | |||
| SG-50KVA | 680 | 350 | 550 | 420 | 220 | 10*20 | 800 | 510 | 840 | |||
| SG-80KVA | 750 | 400 | 620 | 480 | 250 | 10*20 | 850 | 510 | 840 | |||
| SG-100KVA | 780 | 420 | 650 | 500 | 250 | 10*20 | 900 | 550 | 890 | |||
| SG-300KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-500KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-1000KVA | 180 | 110 | 185 | 100 | 90 | 6*14 | ||||||
| SG-2000KVA | 230 | 125 | 205 | 130 | 100 | 9*16 | ||||||
| SG-3000KVA | 240 | 145 | 215 | 130 | 120 | 9*16 | ||||||
| SG-4000KVA | 240 | 155 | 235 | 130 | 130 | 9*16 | ||||||
| SG-5000KVA | 320 | 160 | 255 | 180 | 115 | 10*20 | 400 | 330 | 480 | |||
| SG-6000KVA | 300 | 165 | 280 | 180 | 140 | 10*20 | 400 | 330 | 480 | |||
