IEEE ANSI Overhead Installation Type Single Phase 15kva Pole Mounted Transformer

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-15/4
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Single Phase Capacity: 15Kva
Cooling Method: ONAN Impedance: 3.5%
Primary Voltage: 11000V Or Customized Secondary Voltage: 120/240V
Winding Material: Copper/Aluminum Standard: DOE/ANSI/IEEE
High Light:

15kva Pole Mounted Transformer

,

ANSI Pole Mounted Transformer

,

IEEE Oil Type Transformer


Product Description

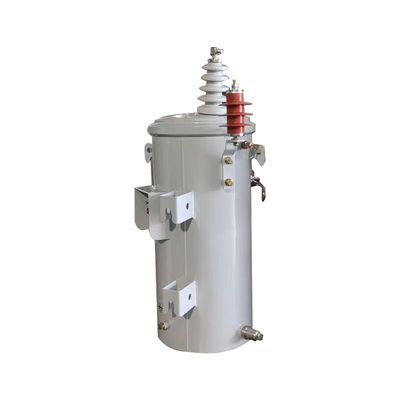

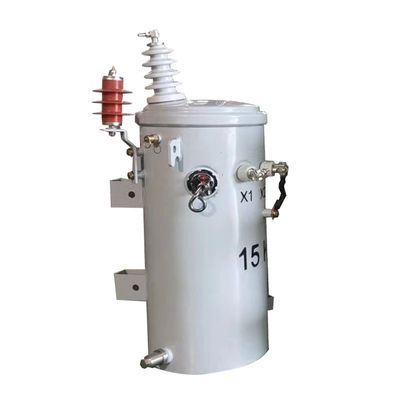

IEEE ANSI Overhead Installation Type Single Phase 15kva Pole Mounted Transformer 11000V To 240V





Performance Characteristic



1. The products are widely used in power transmission and distribution of industrial and agricultural power networks.
2. Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure, so that its magnetic route is short, losses and noise level is low.
3. Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit.
4. The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance.



IEEE ANSI Overhead Installation Type Single Phase 15kva Pole Mounted Transformer 0

Main data



15 kVA Pole Mounted Transformer Specifications
Power rating 15 kVA HV/LV Winding Aluminium
HV Voltage 4.16 kV No load loss 55w
LV Voltage 120/240V On load loss 153w
HV BIL 125kV Frequency 60Hz
LV BIL 30kV Color Gray#70
Length 620mm Tank & Accesories 130kg
Width 700mm Oil weight 75kg
Height 880mm Total weight 255kg
Polarity Additive Impedance 2.00%



Design drawings



IEEE ANSI Overhead Installation Type Single Phase 15kva Pole Mounted Transformer 1



Accessories



IEEE ANSI Overhead Installation Type Single Phase 15kva Pole Mounted Transformer 2



Specification



10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500
110
220
230
400
480
II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Feature



1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.



Production process
