Single Phase 100KVA Pole Mounted Transformer Distribution 13.8Kv

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-100/13
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Primary Voltage: 7968/13800Y Phase: Single Phase
Secondary Voltage: 277/480V Frequency: 60Hz
Temperature Rise: 65°C Impedance: 3%
No Load Loss: 210W Full Load Loss: 850W
High Light:

100KVA Pole Mounted Transformer


Pole Mounted Transformer 13.8Kv


60Hz Single Phase Transformer

Product Description

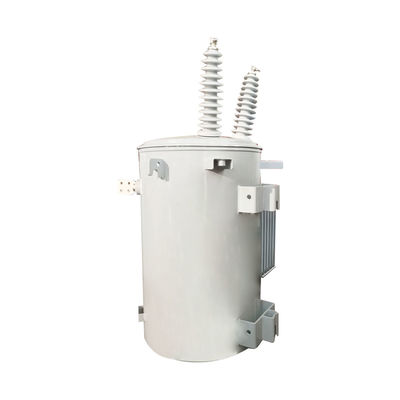

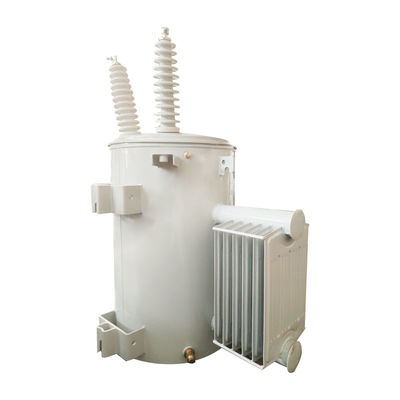

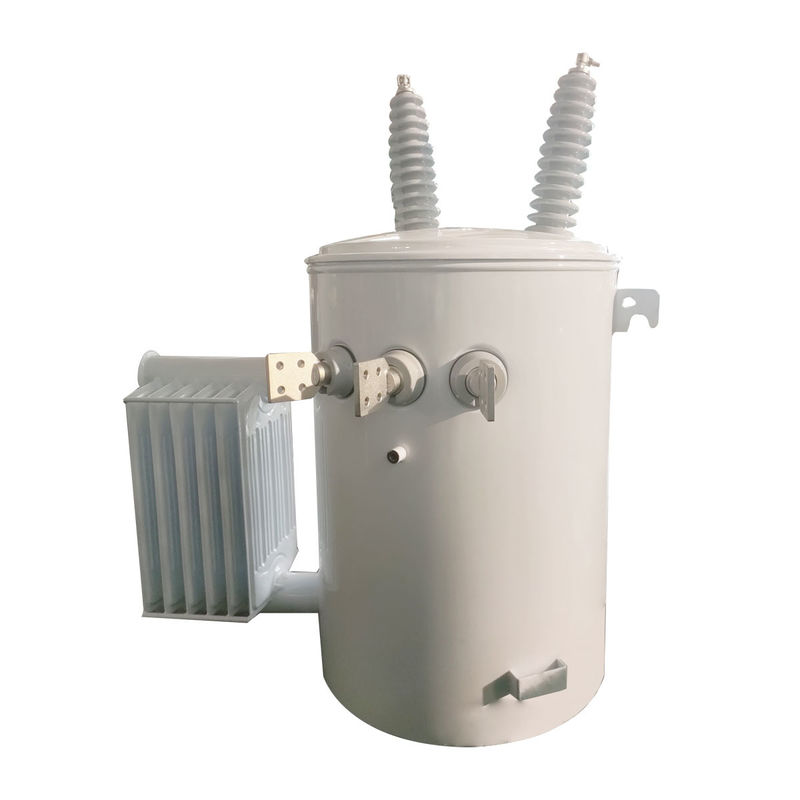

Transformer Single Phase 100KVA Pole Mounted Transformer Distribution



Single Phase 100KVA Pole Mounted Transformer Distribution 13.8Kv 0

Quality System ISO 9001 certified
Meet DOE Energy Efficiency Standard or exceeds ANSI/IEEE and CSA standards

  • Lifting lugs
  • Arrester mounting pads
  • Cover-mounted high votage porcelain
  • Bushing(s) with eyebolt terminal
  • Low voltage bushings wtih eyebolt terminals
  • Low voltage enutral grounding strap(not shown)(10-50kVA class B-2 and B-3 only)
  • ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
  • Polyester insulated cover
  • Self-venting and resealing cover assembly
  • Centerline core/coil assembly support brackets
  • Low voltage leads
  • Oil fill plug with cover ground strap
  • Tank ground pad
  • The fllowing additional features are all standard on self protected type CSP units only
  • Primary protective link (mounted in high voltage bushing)
  • Surge arrester
  • Secondary circuit breaker
  • Secondary breaker operating handle with emergency overload reset and overload signal light



Rated power(KVA) High H.V. Tap Low Short-Circuit No-load loss(W) On-load loss(W) No load current(%)
Voltage range Voltage Impedance(%)
5 12.47
3.5 35 145 4
10 55 260 3.5
16 65 365 3.2
20 80 430 3
30 100 625 2.8
40 125 775 2.5
50 150 950 2.3
63 180 1125 2.1
80 200 1400 2
100 240 1650 1.9
167 285 1950 1.8
250 365 2365 1.7


Production process


3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4
