| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-75/35 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Capacity: | 75Kva Or Customized | Primary Voltage: | 34500GrdY/19920 |
|---|---|---|---|
| Secondry Voltage: | 120/240V | Frequency: | 60Hz |
| Cooling Method: | KNAN; Self-Cooled | Impedance Voltage: | 4% |
| Winding Material: | Copper | Certificate: | ISO,CE |
| High Light: | 75Kva Pole Mounted Transformers,Outdoor Oil Immersed Transformers,Pole Mounted Transformers 34.5Kv |
||

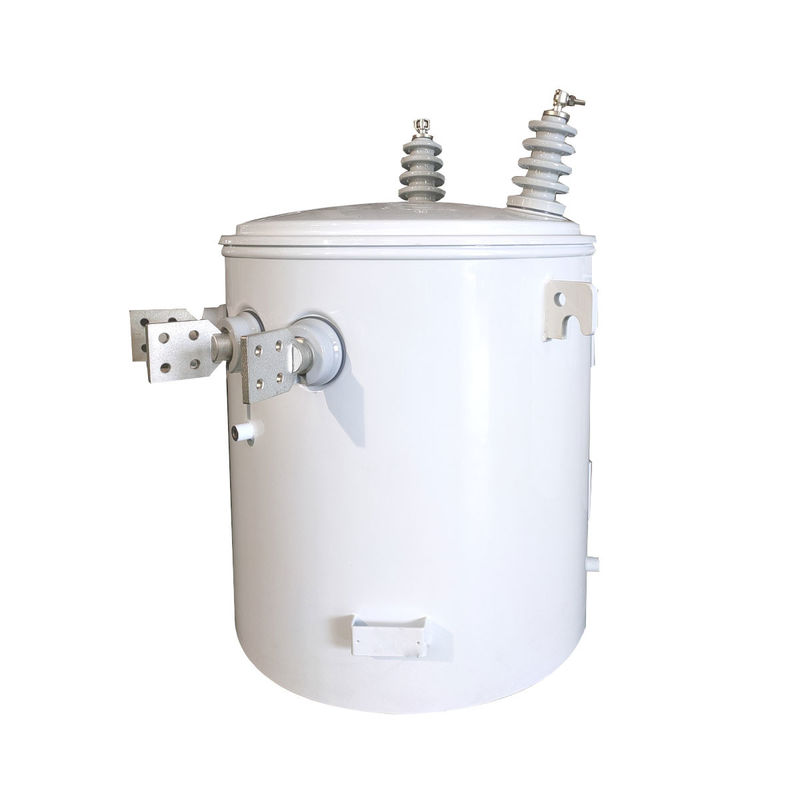

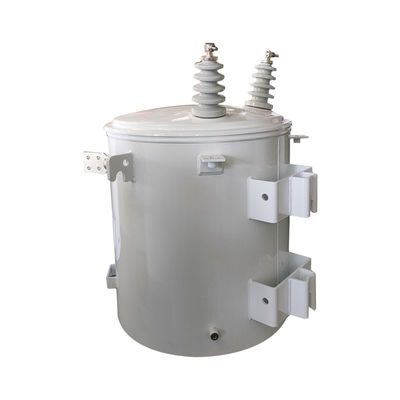

75Kva Single Phase Pole Mounted Transformers Outdoor Oil Immersed 34.5Kv
Main data
| 100 kVA Single Phase Pole Mounted Transformer Specifications | |||
| Energy efficiency | CSA C802.1 | Polarity | Additive |
| Std | CSA C2.1 | HV/LV Winding | copper |
| Power rating | 100 kVA | No load loss | 208w |
| HV Voltage | 34.5kV Delta | On load loss | 753w |
| LV Voltage | 277/480Y V | Frequency | 60Hz |
| HV BIL | 125kV | Vectorgroup | Ii6 |
| LV BIL | 30kV | Color | Grey |
| Length | 730mm | Tank & Accesories | 435kg |
| Width | 890mm | Oil weight | 165kg |
| Height | 1110mm | Total weight | 675kg |
| Impedance | 4% | Cooling Method | ONAN |
Feature
Specification
| Rated power(KVA) | High | H.V. Tap | Low | Short-Circuit | No-load loss(W) | On-load loss(W) | No load current(%) |
| Voltage | range | Voltage | Impedance(%) | ||||
| 5 | 12.47 13.2 13.8 14.4 34.5 |
±5% ±2x2.5% |
120-240/240-480 /347/600 |
3.5 | 35 | 145 | 4 |
| 10 | 55 | 260 | 3.5 | ||||
| 16 | 65 | 365 | 3.2 | ||||
| 20 | 80 | 430 | 3 | ||||
| 30 | 100 | 625 | 2.8 | ||||
| 40 | 125 | 775 | 2.5 | ||||
| 50 | 150 | 950 | 2.3 | ||||
| 63 | 180 | 1125 | 2.1 | ||||
| 80 | 200 | 1400 | 2 | ||||
| 100 | 240 | 1650 | 1.9 | ||||
| 167 | 285 | 1950 | 1.8 | ||||
| 250 | 365 | 2365 | 1.7 |
