167KVA Single Phase Oil Immersed Transformers 34.5KV Pole Mounted

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-167/35
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Rated Capacity: 167KVA Phase: Single Phase
Primary Voltage: 34500GrdY/19920 Secondary Voltage: 120/240V
Frequency: 60 Hz Efficiency: 98.9%
Sound Level: 55 DBA Windings: Copper
High Light:

167KVA Oil Immersed Transformers


Single Phase Oil Immersed Transformers


34.5KV Pole Mounted Transformers

Product Description

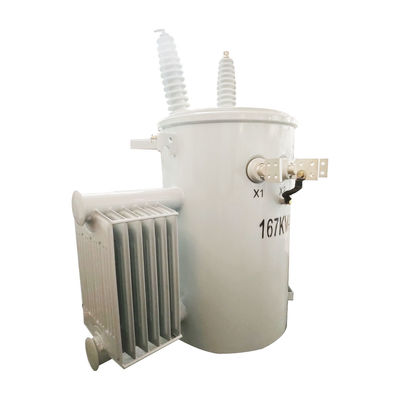

167KVA Single Phase Oil Immersed Transformers 34.5KV Pole Mounted





Quality System ISO 9001 certified, Meet DOE Energy Efficiency Standard or exceeds ANSI/IEEE and CSA standards

  • Lifting lugs
  • Arrester mounting pads
  • Cover-mounted high votage porcelain
  • Bushing(s) with eyebolt terminal
  • Low voltage bushings wtih eyebolt terminals
  • Low voltage enutral grounding strap(not shown)(10-50kVA class B-2 and B-3 only)
  • ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
  • Polyester insulated cover
  • Self-venting and resealing cover assembly
  • Centerline core/coil assembly support brackets
  • Low voltage leads
  • Oil fill plug with cover ground strap
  • Tank ground pad
  • The fllowing additional features are all standard on self protected type CSP units only
  • Primary protective link (mounted in high voltage bushing)
  • Surge arrester
  • Secondary circuit breaker
  • Secondary breaker operating handle with emergency overload reset and overload signal ligh

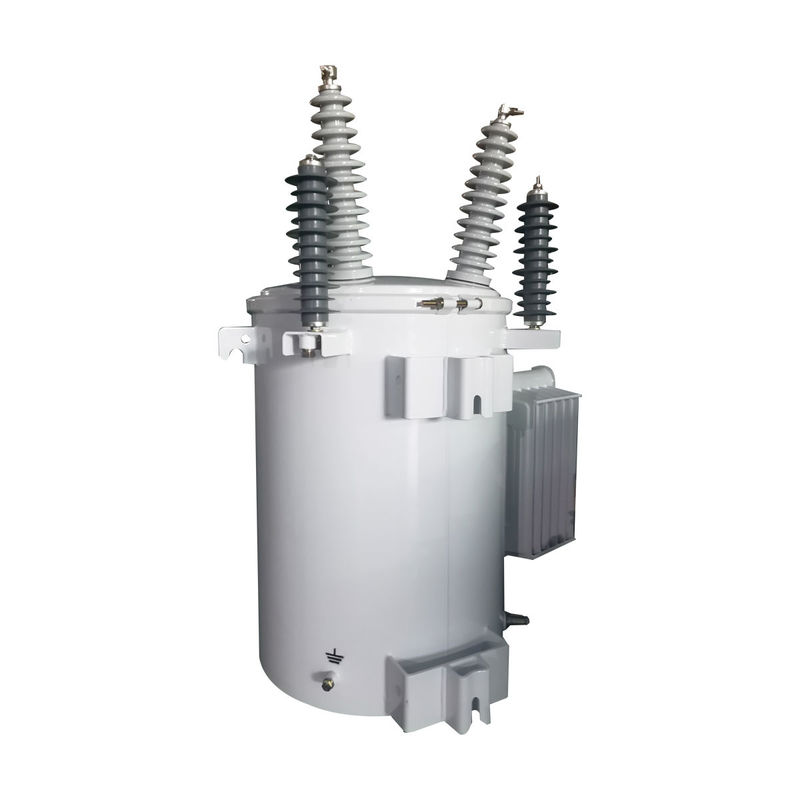

167KVA Single Phase Oil Immersed Transformers 34.5KV Pole Mounted 0




Rated power(KVA) High H.V. Tap Low Short-Circuit No-load loss(W) On-load loss(W) No load current(%)
Voltage range Voltage Impedance(%)
5 12.47
3.5 35 145 4
10 55 260 3.5
16 65 365 3.2
20 80 430 3
30 100 625 2.8
40 125 775 2.5
50 150 950 2.3
63 180 1125 2.1
80 200 1400 2
100 240 1650 1.9
167 285 1950 1.8
250 365 2365 1.7


Pole Mounted Transformer Key Craft

1. Magnetic circuit design
The iron core's shape, size, hysteresis, and eddy current loss are important factors to consider. Properly designing the magnetic circuit can lead to efficient energy transmission and reduced loss.

2. Winding design
Factors such as the number of turns, wire material, interlayer insulation, and wiring method should be taken into consideration during the design process. By implementing a well-planned winding design, the transformer can achieve greater load capacity and reliability.

3. Insulation material selection
Choosing the right insulation materials is paramount to ensure safety and longevity. It's essential to opt for insulating materials that offer excellent insulation performance, high-temperature resistance, arc breakdown resistance, and moisture resistance.

4. Vacuum oil filling
Single-phase pole-mounted transformers typically utilize a vacuum oil filling method. This involves treating the transformer chips with a vacuum, injecting insulating oil, eliminating air bubbles, and sealing the transformers. The vacuum oiling process is beneficial as it enhances the insulation performance and thermal stability of the transformer, leading to prolonged service life.

5. Heat treatment
Transformers' mechanical properties and strength can be enhanced through heat treatment. This process alters the material's organizational structure, boosting its hardness and wear resistance while reducing stress and deformation.


Production process


3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
