| Phase: | Single Phase | Capacity: | 10-500Kva |
|---|---|---|---|
| Cooling Method: | ONAN/KNAN | Frequency: | 50HZ/60HZ |
| Primary Voltage: | 34500GrdY/19920 Or Customized | Secondary Voltage: | 120/240V Or Customized |
| Impedance: | 1.0-4.5% | Insulation Class: | A/F |
| High Light: | Single Phase Transformer 34.5kv,167Kva Pole Mount Transformer,ONAN Single Phase Transformer |
||

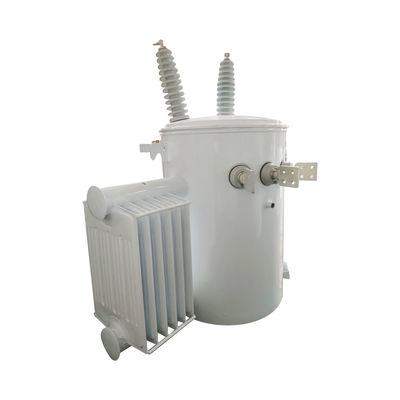

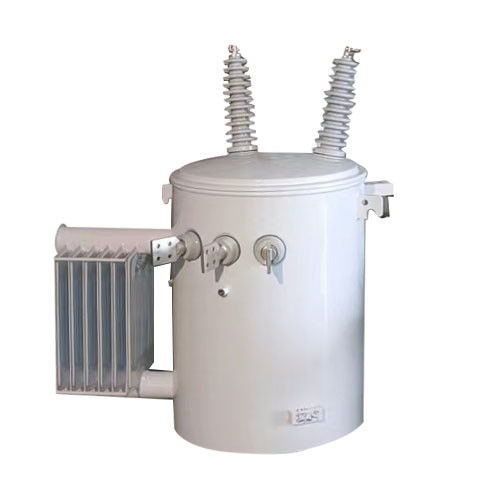

10Kva 25Kva 50Kva 100Kva 167 Kva 333Kva Pole Mount Distribution Single Phase Transformer 34.5kv To 240v
Structural Features
1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.
Specifications
| Tachnical Data for Single-Phase Pole Mounted Distributation Transformer | ||||||||
| Power (KVA) | High Voltage (V) | Low Voltage (V) | Loss(W) | Dimension(mm) | Weight | |||
| No-load Loss | On-load Loss | W | D | H | ||||
| 5 | 34500/ 19920 13800/ 7957 13200/ 7620 12470/ 7200 or others | 120-240 240-480 347 600 | 19 | 75 | 465 | 485 | 855 | 92 |
| 10 | 36 | 120 | 500 | 525 | 885 | 150 | ||
| 15 | 50 | 195 | 520 | 565 | 905 | 210 | ||
| 25 | 80 | 290 | 560 | 590 | 935 | 258 | ||
| 37.5 | 105 | 360 | 610 | 625 | 935 | 340 | ||
| 50 | 135 | 500 | 635 | 675 | 1035 | 395 | ||
| 75 | 190 | 650 | 745 | 840 | 1035 | 480 | ||
| 100 | 210 | 850 | 770 | 965 | 1135 | 530 | ||
| 167 | 350 | 1410 | 795 | 890 | 1335 | 680 | ||
Performance Characteristic
1. The products are widely used in power transmission and distribution of industrial and agricultural power networks.
2. Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure, so that its magnetic route is short, losses and noise level is low.
3. Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit.
4. The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance.
Optional Accessories
1. Surge Arrester
2. Protective Link
3. Current Limiting Fuse
4. Low Voltage Circuit Breaker
a. Circuit Breaker Emergency Control
b. Signal Light
5. Protecto Combo
6. Tap Changer
7. Dual Voltage Swithc
8. Tank Pressure Relief
Production process
