| Brand Name: | WINLEY |
| Model Number: | SG-200 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

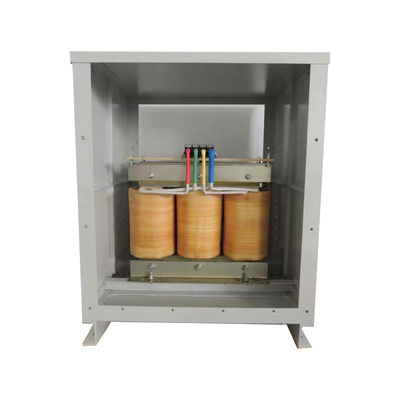

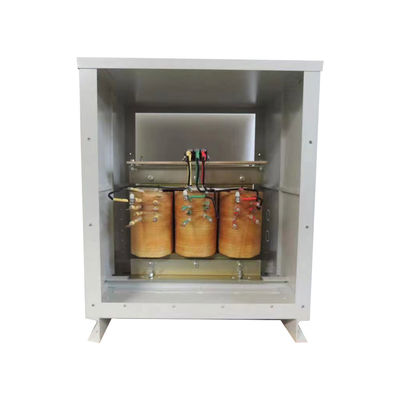

200KVA Step Up Step Down Transformer 690V To 380V 3 Phase Power Dry Transformer
technical specifications
| Rated capacity | 200KVA |
| phase number | 3 Phases |
| Input voltage | 690VAC (3P+G) (or customized) |
| Output voltage | 380VAC (3P+N+G) (or customized) |
| Working frequency | 50/60HZ |
| Short Circurt Impedance | 4% |
| Voltage Resistance | 2500VAc/min (does not have the puncture, no break down) |
| Insulation Level | Level H |
| Insulation Resistance | > 100MΩ/ DC500V |
| Material | copper wire or aluminum wire. |
| Silicon steel sheet | |
| Main material winding | Copper |
| Connection mode | Delta /Y (Or customized) |
| Environment temperature | -10℃ +40℃ ;indoor enclosure, floor-mounted |
| Temperature rise limit: | 100K (Actual temperature minus ambient temperature) |
| Cooling mode | Natural cooling and wind cooling |
| Size(W*D*H) | 900*650*1100mm |
| Weight | 652KG |
| Warranty | 2 years |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
