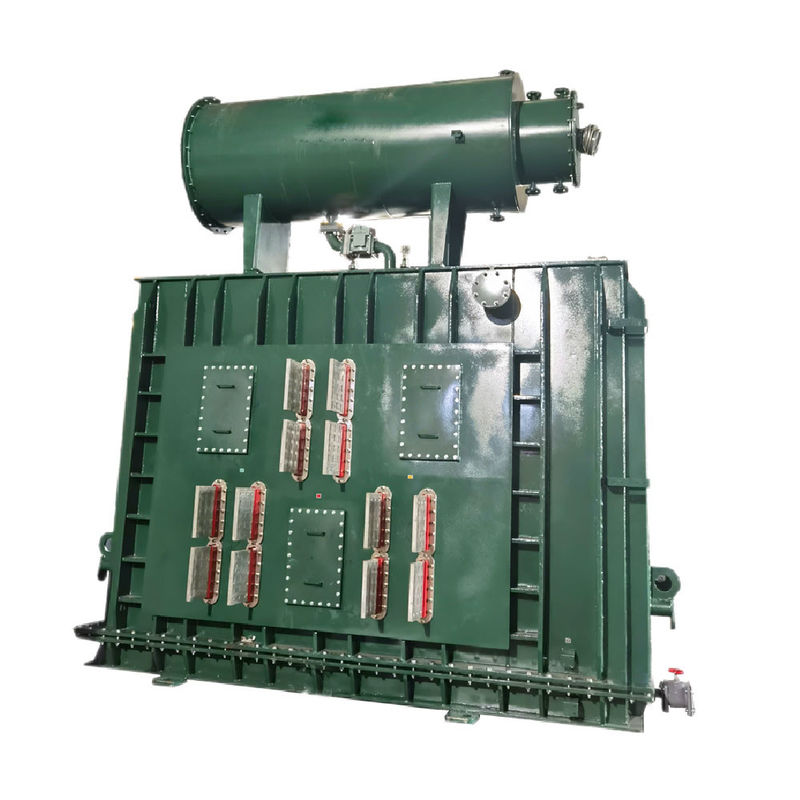

5000Kva Oil Immersed Distribution Electric Furnace Transformers

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 5000Kva
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Rated Capacity: 3000KVA-20000KVA
Primary Voltage: 110KV Or Customized Connection Group: Yyn0/Dyn11
Cooling Method: ONAN Frequency: 50Hz/60Hz
Windings Material: Copper Standard: ANSI,IEC
High Light:

5000Kva Electric Furnace Transformers


3Phase Electric Furnace Transformers


110KV Oil Immersed Distribution Transformers

Product Description

5000Kva Oil-Immersed Distribution Electric Furnace Transformers





1. Submerged arc furnace is also called electric arc furnace or resistance electric furnace.

2. It is mainly used to reduce raw materials such as smelting ore, carbonaceous reducing agent and solvent.
3. Reduce power consumption by 5-20%.

4. Increase output by more than 5%~10%.




Voltage Combination(kV) Connection on symbol Loss ShortCircuit
High Voltage
Series Low Voltage
No-load loss on-load loss
3150 6 5 100~180 Dd0 6.2 36 5
4000 10 5 110~200   7.5 45 5
5000 10 5 120~240   9 56 6
6300 10 7 140~260   11 68 6
8000 10 7 150~270   13.2 80 6
10000 35 9 150~280   15 105 6
12500 35 9 160~290   16 128 6
16000 35 13 165~310   18 160 7
20000 35 13 170~320   21 195 7


Production process


5000Kva Oil Immersed Distribution Electric Furnace Transformers 05000Kva Oil Immersed Distribution Electric Furnace Transformers 15000Kva Oil Immersed Distribution Electric Furnace Transformers 2





1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
