| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | S11-2500KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $5000-$50000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Three | Cooling Method: | ONAN/KNAN |
|---|---|---|---|
| Type: | Oil Type Transformer | Frequency: | 50Hz/60Hz |
| Impedance Voltage: | 4.5% | Rated Capacity: | 50KVA To 3000KVA |
| Material: | Copper/Aluminium | Vector Group: | Yyn0,Dynll |
| High Light: | Distribution Step Down Transformers 6kv,2500KVA Step Down Transformers,ONAN Oil Type Transformer |
||

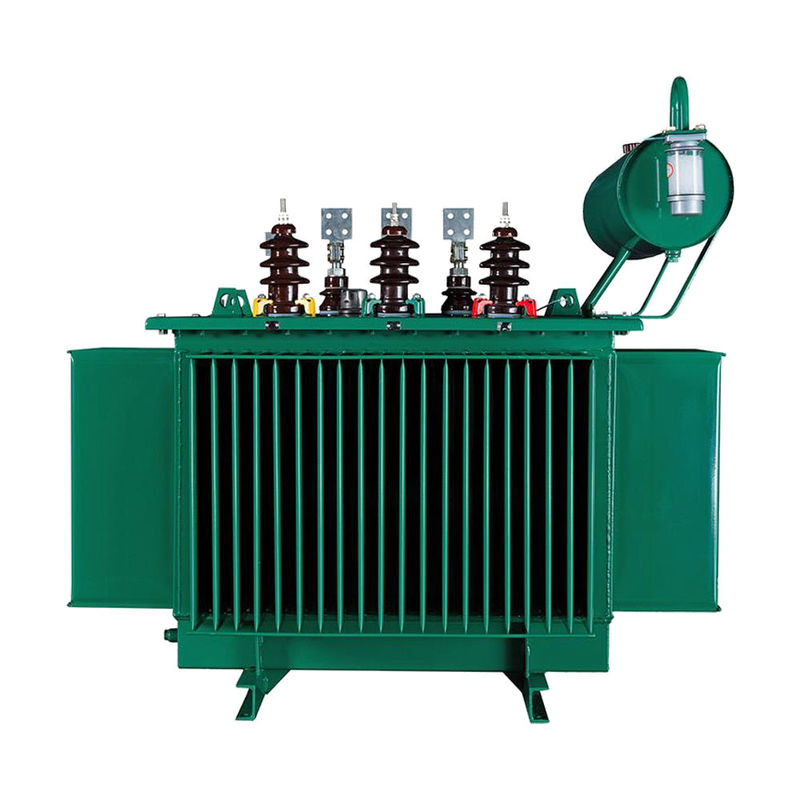

2500KVA Oil-Immersed Distribution Step Down Transformers 6kv-35kv
FEATURES
1)On the basis of S9 series, the no-load loss of S11-S13 series products is reduced by 30% on average, and the no-load current is reduced by 70%-85% compared with S9 series.
2)We improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability.
3)The box is the corrugated radiator tank, not only has the cooling function but also has the 'breathing' function. The elasticity of the corrugated radiator can compensate the oil volume change caused by the temperature change.
4)The three-phase oil Immersed distribution transformer applies new type insulating structure and make the short-circuit resistance strong.
5)The Iron core is made of high quality cold rolled silicon steel plate.
6)High -voltage winding groups is made up of high quality oxygen free copper lines and it adopts multi drum type structure.
Specification
| Rated Capacity | Voltage Group(kV) | Loss(kW) | Weight (kg) | (mm) | Gauge | ||||||||||
| Connection Method | No-load | Load | No-load current | Impedance Voltage | (L) | (W) | (H) | ||||||||
| (kVA) | HV | LV | % | % | % | % | Machine | Oil | Gross | Dimension | Vertical | Horizontal | |||
| 50 | 0.4 | Dyn11 Yd11 Dyn5 Yyn0 |
0.21 | 1.21 | 2 | 6.50% | 195 | 205 | 590 | 1000 | 950 | 1450 | 550 | 550 | |
| 100 | 0.29 | 2.02 | 1.8 | 320 | 240 | 790 | 1080 | 1000 | 1600 | 550 | 550 | ||||
| 125 | 0.34 | 2.38 | 1.7 | 395 | 270 | 950 | 1100 | 1030 | 1630 | 660 | 660 | ||||
| 160 | 0.36 | 2.83 | 1.6 | 460 | 285 | 1020 | 1130 | 1060 | 1630 | 660 | 660 | ||||
| 200 | 0.43 | 3.33 | 1.5 | 555 | 325 | 1170 | 1190 | 1060 | 1670 | 660 | 660 | ||||
| 250 | 0.51 | 3.96 | 1.4 | 630 | 340 | 1340 | 1260 | 1160 | 1700 | 660 | 660 | ||||
| 315 | 38.5 | 0.61 | 4.77 | 1.4 | 720 | 400 | 1530 | 1280 | 1240 | 1790 | 660 | 660 | |||
| 400 | 36.5 | 0.73 | 5.76 | 1.3 | 830 | 490 | 1780 | 1960 | 880 | 1900 | 820 | 820 | |||
| 500 | 35 | 0.86 | 6.93 | 1.2 | 930 | 510 | 1960 | 2020 | 940 | 1920 | 820 | 820 | |||
| 630 | 33 | 1.04 | 8.28 | 1.1 | 1085 | 600 | 2290 | 2070 | 1010 | 2010 | 820 | 820 | |||
| 800 | 1.23 | 9.9 | 1 | 1270 | 660 | 2640 | 2240 | 1040 | 2150 | 820 | 820 | ||||
| 1000 | 1.44 | 12.15 | 1 | 1495 | 735 | 3100 | 2300 | 1200 | 2150 | 820 | 820 | ||||
| 1250 | 1.76 | 14.67 | 0.9 | 1775 | 830 | 3630 | 2450 | 1280 | 2250 | 1070 | 1070 | ||||
| 1600 | 2.12 | 17.55 | 0.8 | 2140 | 935 | 4235 | 2220 | 1510 | 2350 | 1070 | 1070 | ||||
| 2000 | 2.61 | 21.5 | 0.8 | 2535 | 1035 | 4910 | 2310 | 1740 | 2440 | 1070 | 1070 | ||||
| 2500 | 3.15 | 23 | 0.8 | 3140 | 1190 | 5840 | 2370 | 1840 | 2490 | 1070 | 1070 | ||||
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
