| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | S11-1250 |
| Minimum Order Quantity: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Type: | Oil-filled Transformer | Cooling Method: | ONAN/KNAN |
|---|---|---|---|
| Frequency: | 50Hz/60Hz | Rated Capacity: | 1250kva Or Customized |
| Efficiency: | ≥99% | Primary Voltage: | 13800Y/7970 |
| Secondary Voltage: | 480Y/277V | Standard: | ANSI,IEC |
| High Light: | Oil Immersed Distribution Transformer 11KV,3Phase Distribution Transformer,1250kva Oil Immersed Transformer |
||

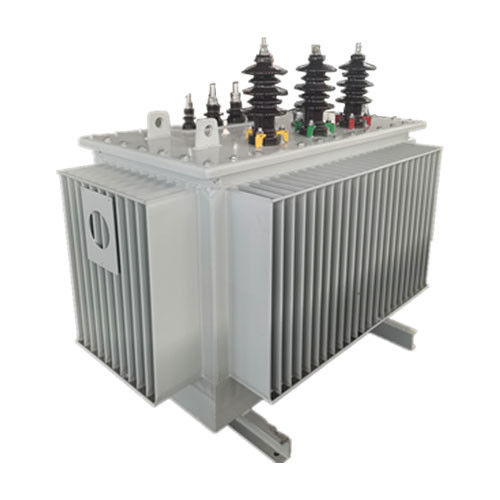

1250kva Three Phase Oil Immersed Distribution Transformer 11KV
Fertures
1) The high-voltage winding adopts a multi-layer cylindrical structure, so that the ampere-turn distribution of the winding is balanced, the magnetic flux leakage is small, the mechanical strength is high, and the short-circuit resistance is strong.
2) The iron core and the winding are respectively fastened. The fastening parts such as the height of the device and the low-voltage lead wire are equipped with self-locking locknuts, and the non-suspending structure is adopted, which can withstand the shock of transportation.
3) The coil and iron core are vacuum-dried, and the transformer oil is vacuum-filtered and oil-filled to minimize the moisture inside the transformer.
Specification
| Rated Capacity | Voltage Group(kV) | Loss(kW) | Weight (kg) | (mm) | Gauge | ||||||||||
| Connection Method | No-load | Load | No-load current | Impedance Voltage | (L) | (W) | (H) | ||||||||
| (kVA) | HV | LV | % | % | % | % | Machine | Oil | Gross | Dimension | Vertical | Horizontal | |||
| 50 | 0.4 | Dyn11 Yd11 Dyn5 Yyn0 |
0.21 | 1.21 | 2 | 6.50% | 195 | 205 | 590 | 1000 | 950 | 1450 | 550 | 550 | |
| 100 | 0.29 | 2.02 | 1.8 | 320 | 240 | 790 | 1080 | 1000 | 1600 | 550 | 550 | ||||
| 125 | 0.34 | 2.38 | 1.7 | 395 | 270 | 950 | 1100 | 1030 | 1630 | 660 | 660 | ||||
| 160 | 0.36 | 2.83 | 1.6 | 460 | 285 | 1020 | 1130 | 1060 | 1630 | 660 | 660 | ||||
| 200 | 0.43 | 3.33 | 1.5 | 555 | 325 | 1170 | 1190 | 1060 | 1670 | 660 | 660 | ||||
| 250 | 0.51 | 3.96 | 1.4 | 630 | 340 | 1340 | 1260 | 1160 | 1700 | 660 | 660 | ||||
| 315 | 38.5 | 0.61 | 4.77 | 1.4 | 720 | 400 | 1530 | 1280 | 1240 | 1790 | 660 | 660 | |||
| 400 | 36.5 | 0.73 | 5.76 | 1.3 | 830 | 490 | 1780 | 1960 | 880 | 1900 | 820 | 820 | |||
| 500 | 35 | 0.86 | 6.93 | 1.2 | 930 | 510 | 1960 | 2020 | 940 | 1920 | 820 | 820 | |||
| 630 | 33 | 1.04 | 8.28 | 1.1 | 1085 | 600 | 2290 | 2070 | 1010 | 2010 | 820 | 820 | |||
| 800 | 1.23 | 9.9 | 1 | 1270 | 660 | 2640 | 2240 | 1040 | 2150 | 820 | 820 | ||||
| 1000 | 1.44 | 12.15 | 1 | 1495 | 735 | 3100 | 2300 | 1200 | 2150 | 820 | 820 | ||||
| 1250 | 1.76 | 14.67 | 0.9 | 1775 | 830 | 3630 | 2450 | 1280 | 2250 | 1070 | 1070 | ||||
| 1600 | 2.12 | 17.55 | 0.8 | 2140 | 935 | 4235 | 2220 | 1510 | 2350 | 1070 | 1070 | ||||
| 2000 | 2.61 | 21.5 | 0.8 | 2535 | 1035 | 4910 | 2310 | 1740 | 2440 | 1070 | 1070 | ||||
| 2500 | 3.15 | 23 | 0.8 | 3140 | 1190 | 5840 | 2370 | 1840 | 2490 | 1070 | 1070 | ||||
