10MVA Oil Immersed Distribution Electric Furnace Transformers

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 10MVA
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Supply Ability: 1000set/month
Detail Information
Rated Capacity: Up To 120Mva Frequency: 50/60Hz
Insulation Level: A/E Rated Voltage: 11kV-33kV
Secondary Voltage: 0.4 KV Material: Silicon Steel Sheet
Connection Symbol: Yyn0/Dyn11 Standard: IEC ANSI IEEE
High Light:

Oil Immersed Electric Furnace Transformers


10MVA Electric Furnace Transformers


IEC Oil Immersed Transformers

Product Description

10MVA  20MVA 40MVA 33kV Oil-Immersed Distribution Electric Furnace Transformers





1) Efficient transformers with reduced losses,low noise

2)The iron core of the electric furnace transformer is made of high-quality oriented silicon steel sheet, which is processed by automatic cutting line.

3) It has the characteristics of strong short-circuit capacity, strong overload capacity, high efficiency, low loss, safety and reliability.

Main usage


Metallurgical iudustry: melting alloy steel and ferroalloy

Chemical industry: production of yellow phosphorus, calcium carbide, synthetic resin
Machinery industry: cast steel, cast iron, alloy melting

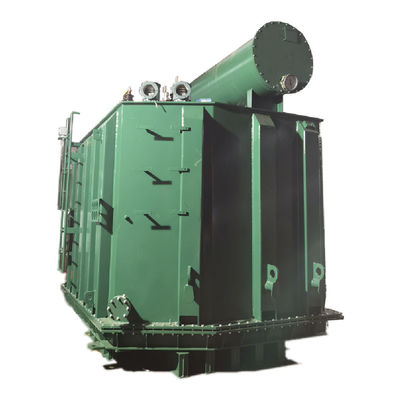

10MVA Oil Immersed Distribution Electric Furnace Transformers 0


Production process

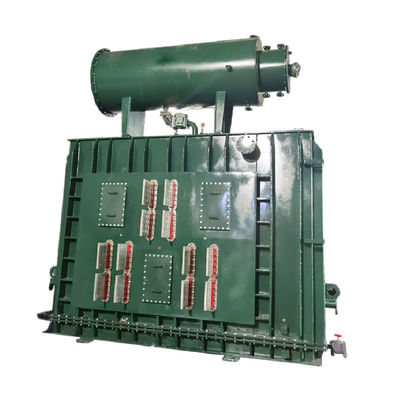

10MVA Oil Immersed Distribution Electric Furnace Transformers 1

10MVA Oil Immersed Distribution Electric Furnace Transformers 2




Q: How do transformers been shipped?

A: Transformers always been delivered by ship,train or truck for oversea.

Q: Can your product be customerized?

A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?

A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?

A: Yes. It’s available. We are responsible for each set transformer’s testing.

Q: Do you assign engineer for after-sale service?

A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
