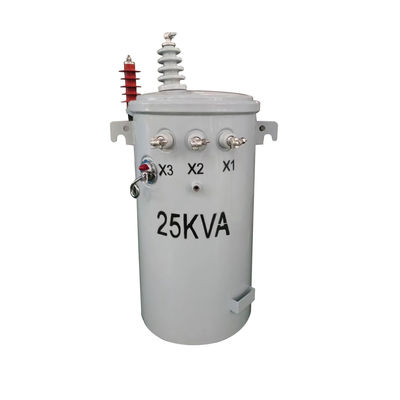

25 Kva Single Phase Pole Mount Transformer Oil Immerse Hv Power

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 25KVA
Minimum Order Quantity: 1
Price: $500-$100000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Single Mounting Type: Pole Mount
Rated Capacity: 25Kva Or Customized Primary Voltage: 34.5kv,13.8kv,13.2kv,14.4kv,12.47kv Or Customized
Output Voltage: 0.22~0.24 Or Customized Frequency: 50/60Hz
Material: Copper/Aluminum Cooling: ONAN/KNAN; Self-Cooled
Standard: ANSI,IEC
High Light:

Single Phase Pole Mount Transformer


25Kva Pole Mount Transformer


Hv Power Oil Immerse Transformer

Product Description

25 Kva Single-Phase Pole Mount Transformer Oil Immerse Hv Power





1)The products are widely used in power transmission and distribution of industrial and agricultural power networks.
2)Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure, so that its magnetic route is short, losses and noise level is low;
3)Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit;
4)The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance;
5)Reliability: All in-service product have no damages or oil leakage occurred;
6)Oil tank with various kinds of structure and good appearance.




Rated power(KVA) High H.V. Tap Low Short-Circuit No-load loss(W) On-load loss(W) No load current(%)
Voltage range Voltage Impedance(%)
5 12.47
3.5 35 145 4
10 55 260 3.5
16 65 365 3.2
20 80 430 3
30 100 625 2.8
40 125 775 2.5
50 150 950 2.3
63 180 1125 2.1
80 200 1400 2
100 240 1650 1.9
167 285 1950 1.8
250 365 2365 1.7


25 Kva Single Phase Pole Mount Transformer Oil Immerse Hv Power 0


Production process


25 Kva Single Phase Pole Mount Transformer Oil Immerse Hv Power 1

25 Kva Single Phase Pole Mount Transformer Oil Immerse Hv Power 2

25 Kva Single Phase Pole Mount Transformer Oil Immerse Hv Power 3




1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
