| Brand Name: | WINLEY |
| Model Number: | SG-50KVA |
| MOQ: | 1 |
| Price: | $100-$15000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

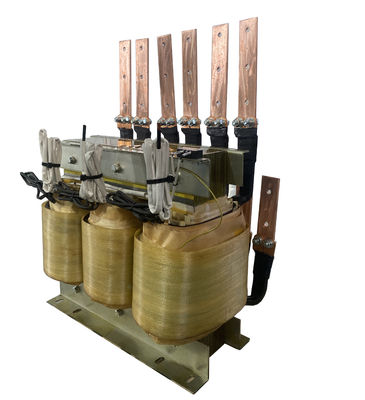

50KVA Three Phase Dry Type Transformer Rectifier 2250A 8VDC Copper
1. Feature
① Features and advantages
② High isolation
③ N-G has good performance
④ High common mode interference suppression
⑤ Convert △ to Y or Y to △
⑥ The voltage tap is easy to change
⑦ Designed according to user's special performance requirements
2.Specification
| Product Name | Three phase dry type transformer |
| Product Model | SG-120KVA |
| Winding Material | Enameled copper wire |
| Capacity | 50KVA |
| Input Voltage | 480V |
| Output Voltage | 8V |
| Frequency | 50/60Hz |
| Connection Type | DYN1 |
| Insulation Level | F/H |
| Enclosures Protection Level | IP00 |
| Pressure-tight Test | 3500V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 830V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤115K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
